Introduction
DUAL 2.4G RADIO SYSTEM
The TWIN X14 stands out as a robust radio system, boasting the capability of utilizing dual 2.4G frequencies
simultaneously on the same receiver in TW mode. Different from standard active-standby redundancy solutions,
the TW active-active protocol ensures both 2.4G frequency bands are actively engaged on the TWIN series RF
module and receiver simultaneously.
Equipped with two internal 2.4G RF antennas, the TWIN X14 offers expansive multi-directional coverage for
transmitting signals. Leveraging these attributes alongside the exterior antenna mounting frame, the Twin system
provides less latency, higher reliability, and faster data rates with confidence. In addition to the TW mode, TWIN
X14 also supports ACCST D16 and ACCESS modes, this means users can benefit from a wide range of compati-
ble receiver options to choose from and bind to when building the RC model.
ERGONOMIC, COMPACT & FLEXIBLE DESIGN
In alignment with the form factor concept of TANDEM X18, the TWIN X14 has been crafted to enhance its
portability, reduce weight, and streamline its design. The ergonomic layout ensures that the momentary buttons,
shoulder sliders, and switches on the top are effortlessly accessible.
The TWIN X14 offers 4 customizable buttons, thoughtfully placed at the radio panel center for real-time and
frequent operations. Take, for instance, when flying an RC glider, to configure these buttons as additional Trim
functions by ETHOS, these buttons become invaluable for on-the-fly adjustments then, allowing pilots to adapt
the angle of the flaps/surface according to the real-time air environment.
BUILT-IN FLASH STORAGE AND RECHARGING SYSTEM | STAND HOLDER ATTACHABLE STRUCTURE
DESIGN
Eliminating the need for users to fret over storage decisions, the TWIN X14 boasts built-in 128MB flash storage,
providing ample space for your file storage requirements. Its practicality extends to a battery bay accommodating
a 2600mAh Li Battery, easily replaceable and featuring a Type-C port for recharging.
Further enhancing its user-friendly design, the TWIN X14 introduces an attachable and foldable structure on the
rear shell. This design allows for the easy installation of an additional stand holder accessory, transforming the
X14 not only can be conveniently carried but it can also to be positioned anywhere, offering operational flexibility
without having to hold the radio in your hands.

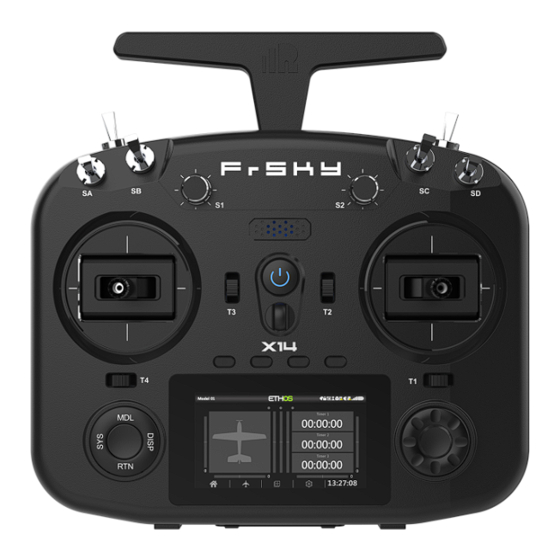

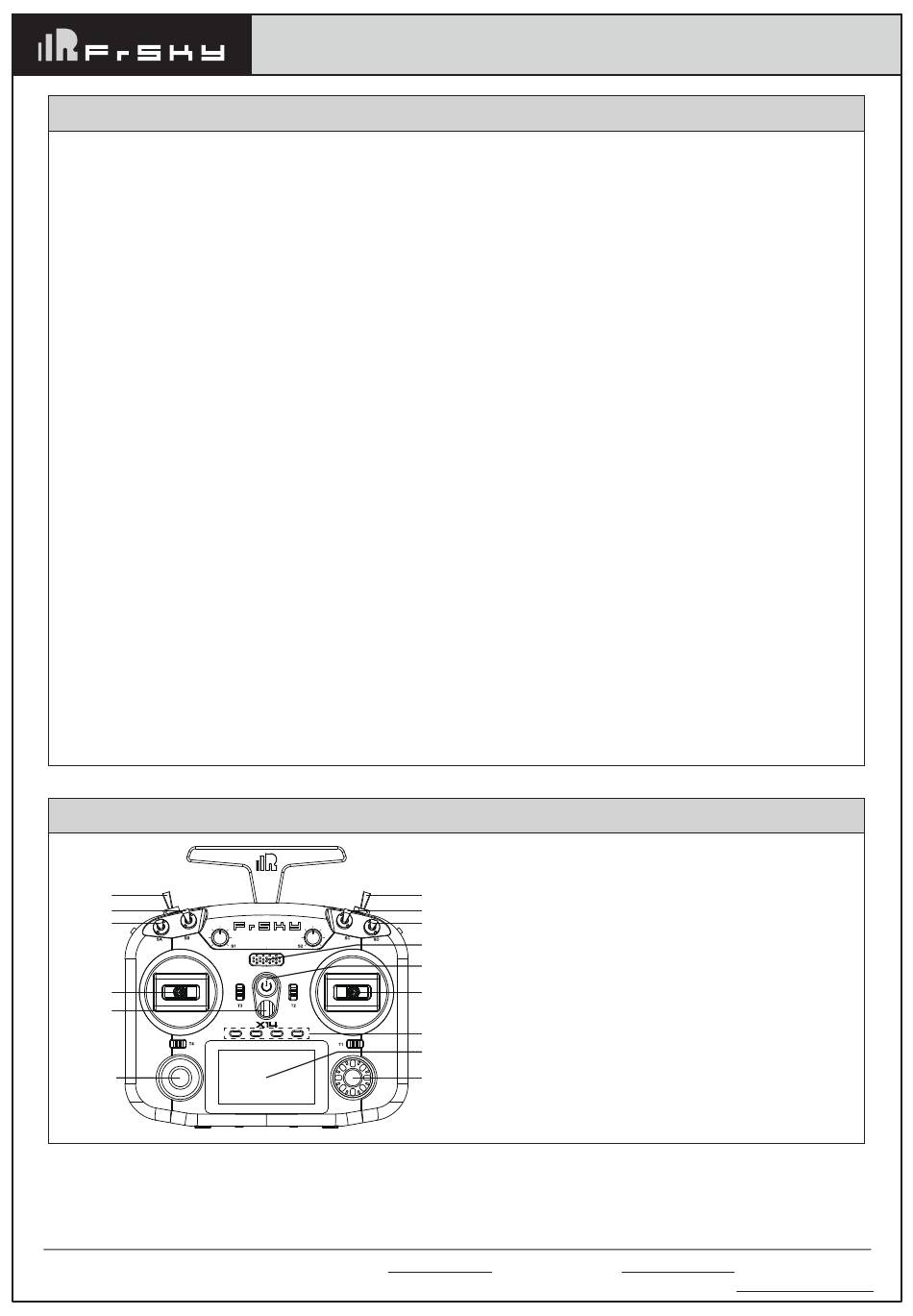

Overview
SE
SB
SA
Stick
Hook
SYS,
MDL,
DISP,
RTN
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky TWIN X14
SF
SC
SD
Speaker
Power Switch
Stick
Custom Button
Display Screen
Encoder
www.frsky-rc.com
Contact us: frsky@frsky-rc.com
● SA: 3 positions; Short Lever
● SB: 3 positions; Long Lever
● SC: 3 positions; Long Lever
● SD: 3 positions; Short Lever
● SE: Momentary, Short Lever
● SF: 2 positions; Short Lever
● T1-T4: Stick Trims
You can choose the Switch and define
its position in the HARDWARE menu.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWIN X14 and is the answer not in the manual?

Questions and answers

Summary of Contents for FrSky TWIN X14

  • Page 1 RC model. ERGONOMIC, COMPACT & FLEXIBLE DESIGN In alignment with the form factor concept of TANDEM X18, the TWIN X14 has been crafted to enhance its portability, reduce weight, and streamline its design. The ergonomic layout ensures that the momentary buttons, shoulder sliders, and switches on the top are effortlessly accessible.
  • Page 2: Specifications

    1. USB port is for upgrading, reading / writing Micro SD cards and internal memory of radio contents and charging. (Micro SD card is not provided with shipment.) 2. Smart Port is for firmware upgrade for all FrSky S.Port capable devices. Specifications ●...
  • Page 3: Navigation Controls

    Find the latest infomation and download the ETHOS Suite at ethos.frsky-rc.com/. Twin X14 Twin X14 Note: To use the ETHOS Suite with a FrSky ETHOS radio, please always keep the radio bootloader with the latest version. FrSky Electronic Co., Ltd.
  • Page 4 Instruction Manual for FrSky TWIN X14 ETHOS Operating System Create the model STEP 1: Enter into Model Select, then select the model Create a new model. type. STEP 2: Configure the model channel. Name the model and set the model picture.
  • Page 5 Instruction Manual for FrSky TWIN X14 Then turn the state of Internal RF to On. Set the binding mode for the Internal RF module corresponding to the receiver (ACCST D16, ACCESS, TW MODE.etc). STEP2: Channel Range Setting The Internal RF module supports 24 channels (CH1-8 The channel range is configurable by pressing the / CH1-16 / CH1-24).
  • Page 6 Instruction Manual for FrSky TWIN X14 STEP4: Registration For TW Mode as an example, select the Set [Register] When the "RX Connected" page pops up, press the for getting the radio into Registration status in the RF [REGISTER] to complete the Registration procedure System-Internal Module tool, then press the F/S and then power the receiver off.
  • Page 7: Range Check

    Instruction Manual for FrSky TWIN X14 Range Check A pre-flight range check should be done before every flight, in case the signal loss is caused by the reflection of the signal by the nearby metal fence or concrete, and the shading of the signal by buildings or trees during the actual flight.
  • Page 8: Flying Safety

    EEPROM memory (which does not require periodic replacement) and of a battery, it still should have regular check-ups for wear and tear. We recommend sending your system to your FrSky Service Center annually during your non-flying-season for a complete check-up and service.
  • Page 9 Never fly if lightning is expected. Updates FrSky is continuously adding features and improvements to our radio systems. Updating (via USB Port or the Micro SD card) is easy and free. To get the most from your new transmitter, please check the download section of the FrSky website for the latest update firmware and guide for adjusting your sticks.
