Culligan IC-100 Use And Care Manual

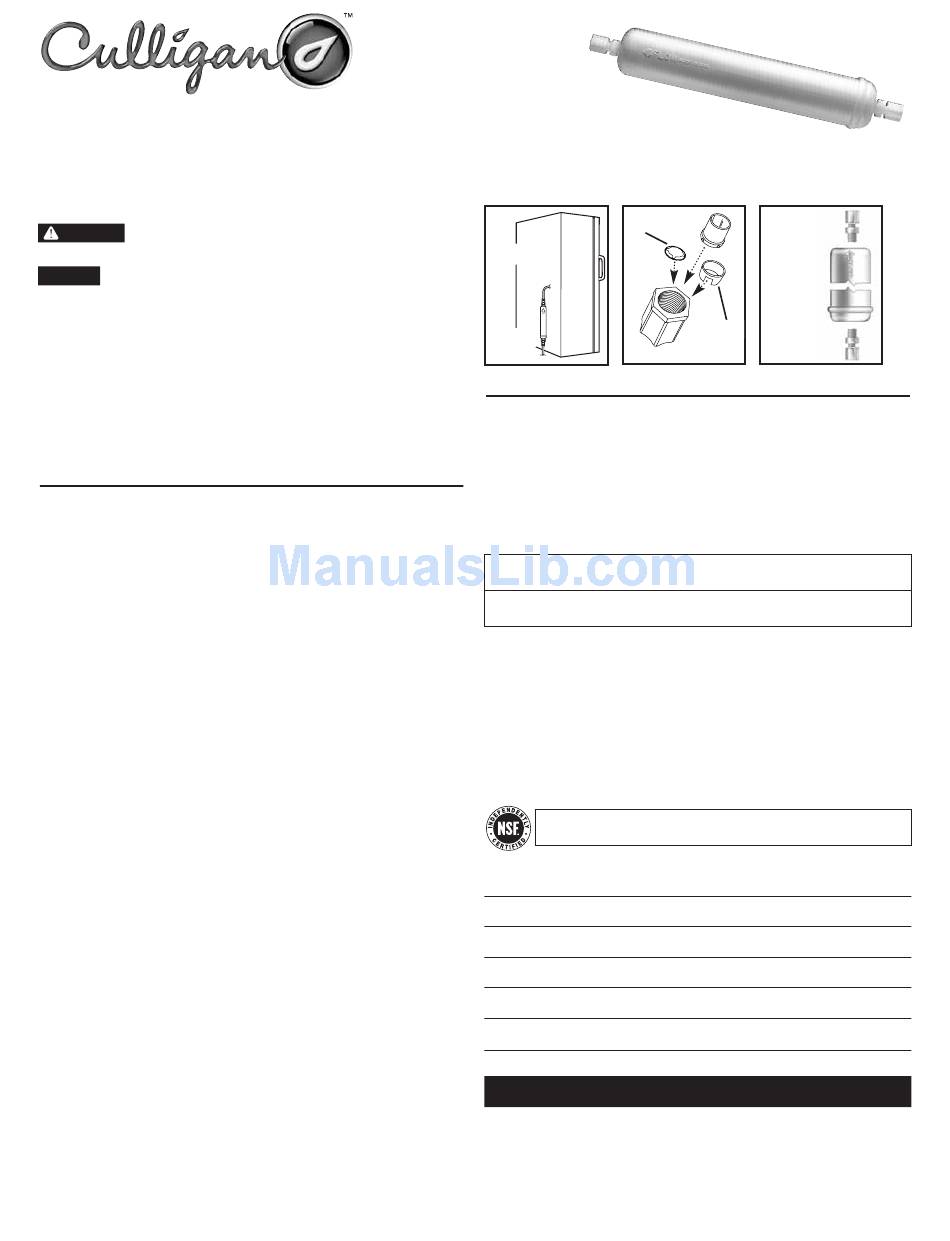

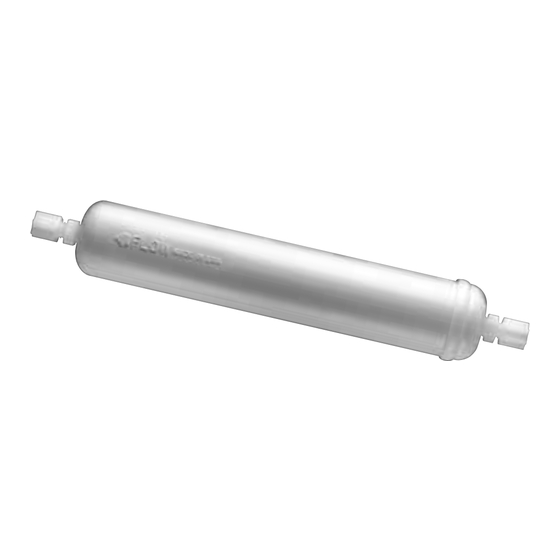

Disposable Icemaker/Water Dispenser Filter
Use and Care Manual Model IC-100
Precautions and Usage Guidelines
WARNING: Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.
CAUTION: The filter must be protected against freezing.
Failure to do so may result in cracking of the filter and water leakage.
NOTE: Make certain that installation of this system complies with all state and
local laws and regulations.
FOR COLD WATER USE ONLY.
MAINTENANCE: Contact your area retailer for replacement cartridges and
pricing or call Culligan Customer Service at 800-634-1455 for the nearest
dealer. Change cartridge every 2500 gallons or approximately every 12 months.
Filter Installation Instructions
(For copper or plastic tubing)
NOTE: Shut off water supply when replacing filter.
1. Shut off water supply. Select a location for installation on 1/4" OD (outside
diameter) plastic or copper tubing. Filter requires at least three
inches behind appliance. See Fig 1.
NOTE: Leave at least a 5-foot coil of tubing between appliance side and
compression fittings. This will allow room to pull out the appliance for
changing the filter.
2. Wrap 6" of Teflon tape around the threads of both ends of fittings.
Screw fittings into the body of the filter until hand tight. Use a wrench to
tighten two additional turns. DO NOT OVER-TIGHTEN. About one full thread
should remain visible.
3. Two types of compression nuts are included: One for copper tubing and one
for plastic tubing. Copper tubing uses nuts with metal grippers, while the
plastic tubing uses the nuts with plastic grippers. Refer to Fig. 2.
DO NOT DISASSEMBLE NUTS. If nuts become disassembled, refer back to
Fig 2 for reassembly. Attach correct compression nuts to fittings.
4. Cut 1/4" OD tubing where filter will be installed.
5. On the inlet side of filter, insert tubing as far as possible into fitting. WATER
FLOWS IN DIRECTION INDICATED BY ARROW ON THE FILTER. See Fig 3.
If tubing does not enter the fitting, loosen the nut one turn. After inserting
tubing, hand tighten nut first, then tighten 1-1/2 to 2 turns with a wrench.
6. With only the inlet side connected, flush water thru filter into a container
for 5 minutes. Wait an hour, and then flush another 5 minutes, or until water
runs clear.*
7. Shut off water and then connect the outlet side of the filter to the appliance
using the procedure in step #5. Turn water on and check for leaks.
*NOTE: Though the filter has been rinsed to remove fine particles of carbon,
resettling of the carbon within the filter can occur. If the first trays of ice
become discolored, discard the ice until clear.
Culligan International Company
One Culligan Parkway
Northbrook, Illinois 60062
www.culligan.com
©2004 Culligan International Company, Printed in U.S.A.
Figure 1
To Refrigerator
Supply Side

Performance Data

Important Notice: Read this performance data and compare the capabilities of this system
with your actual water treatment needs. It is recommended that, before installing a water
treatment system, you have your water supply tested to determine your actual water treat-
ment needs.
This system has been tested according to NSF/ANSI Standard 42 for reduction of the
substances listed below. The concentration of the indicated substances in water entering the
system was reduced to a concentration of less than or equal to the permissible limit for
water leaving the system, as specified in NSF/ANSI standard 42.
Substance
Standard 42
Chlorine
Flow Rate=0.75 gpm (2.8 L/min)
Testing was performed under standard laboratory conditions, actual performance may vary.
Test Conditions:
Flow Rate
Inlet Pressure = 60 psi (4.14 bar)
pH
Temperature = 68º F ± 5º F
IOWA RESIDENTS ONLY:
Store or seller's name
Address
City
Telephone
Seller's signature
Customer's signature
QUESTIONS? Call Culligan Customer Service: 1-800-634-1455, Mon.-Fri., 7:30 AM-7 PM CST
Culligan
Customer Service M-F 7:30 a.m – 5:00 p.m. CST
Phone: 1-800-634-1455 Fax: 1-888-749-8826
International: Phone (920) 457-9435 • Fax (920) 457-2417
e-mail: customerservice@culligan.com
Figure 2
Metal Gripper
Plastic Gripper
Influent Challenge Max. Permissible Product
Concentration Water Concentration
2.0 mg/L±10%
Capacity=2500 gallons (9463 L) or 12 months
Operating Requirements:
= 0.75 gpm (2.8 L/min) Pressure
Temperature = 40º-100º F
= 7.5 ± 1
Turbidity
(20º C ± 2.5º C)
The IC-100 is Tested and Certified by NSF International to NSF/ANSI Standard 42 for
the reduction of Chlorine, Taste and Odor.
State
P.O. Box 1086 • Sheboygan, WI 53082-1086
Figure 3
Outlet
Inlet
Reduction Minimum Average
Requirements Reduction Reduction
≥ 50% >93%
= 30-125 psi
(2.07-8.62 bar)
(4.4º-37.7º C)
= 5 NTU Max
Zip
Date
Sales & Marketing Correspondence
Fax (847) 291-7632
e-mail: sales-marketing@culligan.com
145233 Rev D 03/04
