Preparation for Use
Input voltage conversion procedure:
a.
b.
Turn AC power switch OFF.
Remove power cord, if installed.
Remove power supply from the iSBC 680/681
chassis using the following steps:
1. Detach all DC cables on front panel of
power supply, see Figure 2-1.
2. Unscrew the six retaining screws on the
back of the iSBC 680/681 chassis, see Figure
2-2.
3. Slide power supply out the back of the
chassis, lay the power supply on its back
with the AC cable opening in the power
supply facing toward the chassis.
m8
iSBC 680/681
Remove power supply jumper cover, see Figure
2-1.
Remove '115 Volt" jumper. Turn the jumper
plug 180 degrees and re-install as the "220 Volt"
jumper, see Figure 2-3.
Ensure that all other connections in this area
have not been disturbed during the conversion.
Replace power supply jumper cover.
Install power supply in chassis:
1. Slide power supply into back of chassis.
2. Attach by inserting the six retaining screws.
3. Attach all cables to front of the power
supply.
DC CABLES
FRONT VIEW
BOTTOM VIEW

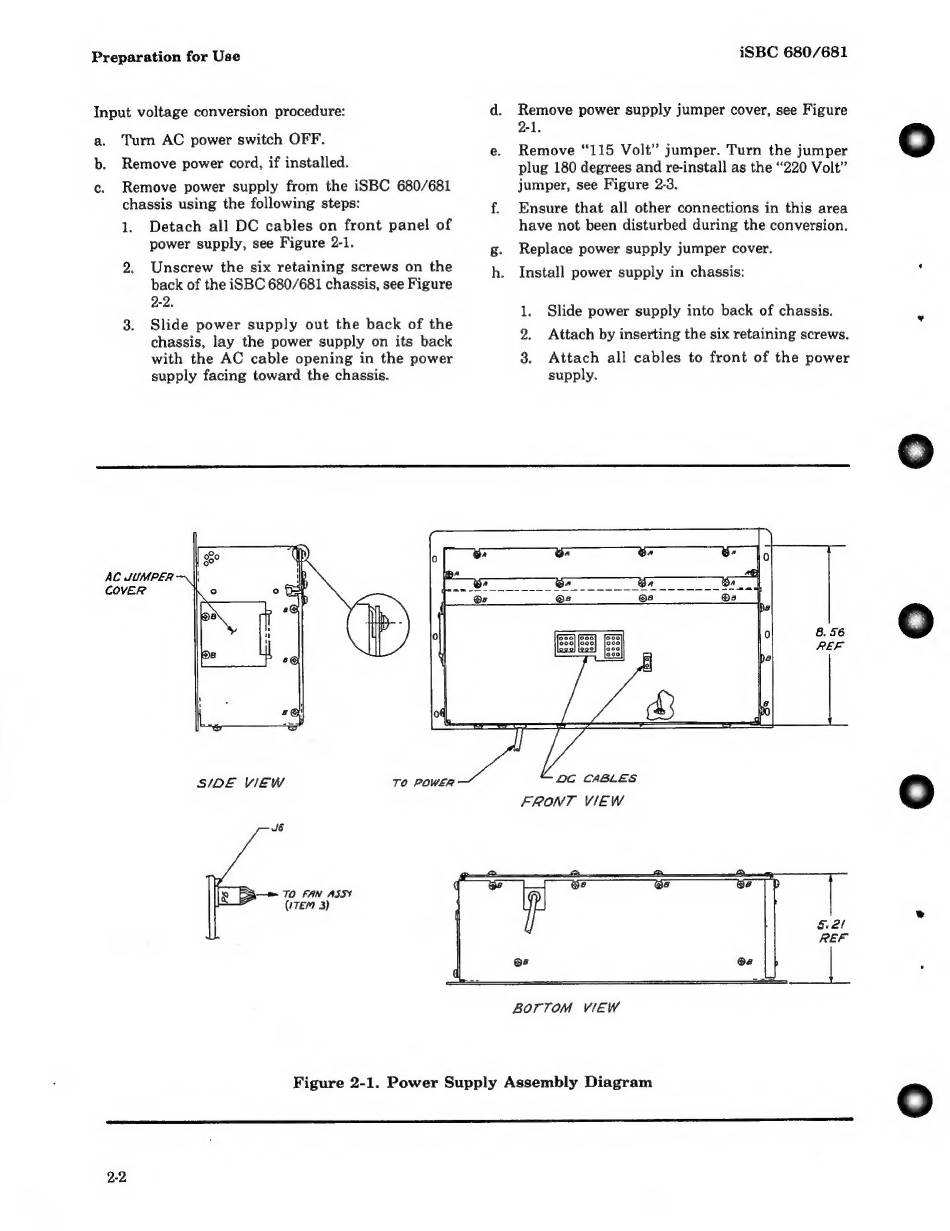

Figure 2-1. Power Supply Assembly Diagram
2-2
