Operation and Maintenance Manual
Enerpac RRH10010C101

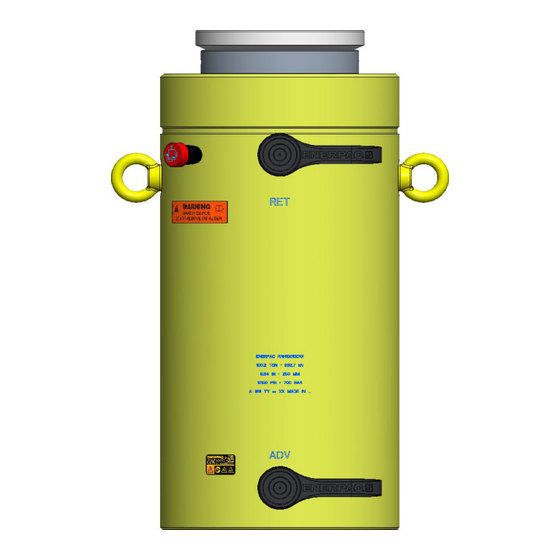

Double-acting, Hollow, 100-Ton, Hydraulic Cylinder
Document Number: L4772
Document Revision: A
Document Revision Date: 04-AUG-2023
Document Language: ENGLISH EN
To reduce the risk of injury, user must read and understand this document before use.
Advertisement
Table of Contents
Related Manuals for Enerpac RRH10010C101
Summary of Contents for Enerpac RRH10010C101
- Page 1 Operation and Maintenance Manual Enerpac RRH10010C101 Double-acting, Hollow, 100-Ton, Hydraulic Cylinder Document Number: L4772 Document Revision: A Document Revision Date: 04-AUG-2023 Document Language: ENGLISH EN To reduce the risk of injury, user must read and understand this document before use.
- Page 3 Enerpac for quality tools, services and solutions. For additional information, visit www.enerpac.com. WARRANTY Refer to the Enerpac Global Warranty document for terms and conditions of the product warranty. Such warranty information can be found at www.enerpac.com. NAMEPLATE L4772_a...
-
Page 4: Table Of Contents
4.3 PRODUCT DESCRIPTION ........................7 4.4 TECHNICAL SPECIFICATIONS ......................7 5. OPERATION ..............................7 5.1 INITIAL SETUP ............................7 5.2 OPERATING RRH10010C101 ....................... 8 6. INSPECTION, MAINTENANCE & STORAGE ....................8 7. RELIEVING TRAPPED PRESSURE ......................9 8. PARTS LIST ..............................10 8.1 EXPLODED VIEWS .......................... -
Page 5: Safety
Always follow all safety precautions and tags, or decals. In the event that any questions or instructions, including those that are contained concerns arise, contact Enerpac or a local Enerpac within the procedures of this manual. distributor for clarification. - Page 6 Non- gravity could move or shift during lifting. Be aware Enerpac parts may break or cause the product to that the distribution of some loads can change malfunction.
-
Page 7: Compliance Statement(S)
CE and UKCA. Enerpac declares that the product has been tested and conforms to applicable standards and the product is compatible to all EU and UK Requirements. Copies of the EU Declaration as well as the UK Self-Declaration are enclosed with each shipment. -
Page 8: Technical Product Data
4. Technical Product Data 4.1 Dimensional Callout Art Figure 2: RRH10010C101 Dimensions 4.2 Dimensional Table Measure 2.17 5.91 8.35 17.95 0.88 1.56 3.15 6.97 L4772_a... -
Page 9: Product Description
A tilting saddle is also integrated on the cylinder body. 5.1.3 Hydraulic oil requirements 4.4 Technical Specifications Use of Enerpac HF ISO 32 hydraulic oil is recommended. RRH10010C101 specifications are shown in the table Enerpac HF oil is available at your local Enerpac... -
Page 10: Operating Rrh10010C101
Operation procedures will vary, depending on hydraulic and direct sunlight. pump type, valve configuration and other factors. For • If repairs are required, refer to the Enerpac website detailed operating instructions and related information, to find the repair parts sheet applicable to each refer to the instruction sheet included with your pump. -
Page 11: Relieving Trapped Pressure
If a trapped pressure condition is suspected, always use the Enerpac model CT-604 coupler bleed tool (available from your Enerpac distributor) to safely relieve any remaining pressure. -
Page 12: Parts List
8. Parts List 8.1 Exploded Views Figure 4: RRH10010C101 exploded view L4772_a... - Page 13 Under Saddle C230150045-2 Retaining Ring CCA1112044-1C Model Number Decal DA5255026 Back Up Ring DB3117566 Back Up Ring DB3118566 Relief Valve DB8049900 Eyebolt DB8050667 Enerpac UIN Warning Decal DB9473026 Female Coupler DC1389900 Warning Decal DC6154026 Dust Cap DD1782020 Enerpac Decal G668026 L4772_a...
-
Page 14: Troubleshooting
For repair service, contact your nearest Enerpac Authorized Service Center. As required, also refer to the troubleshooting information provided with your hydraulic pump or power unit. - Page 15 NOTES ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________...
