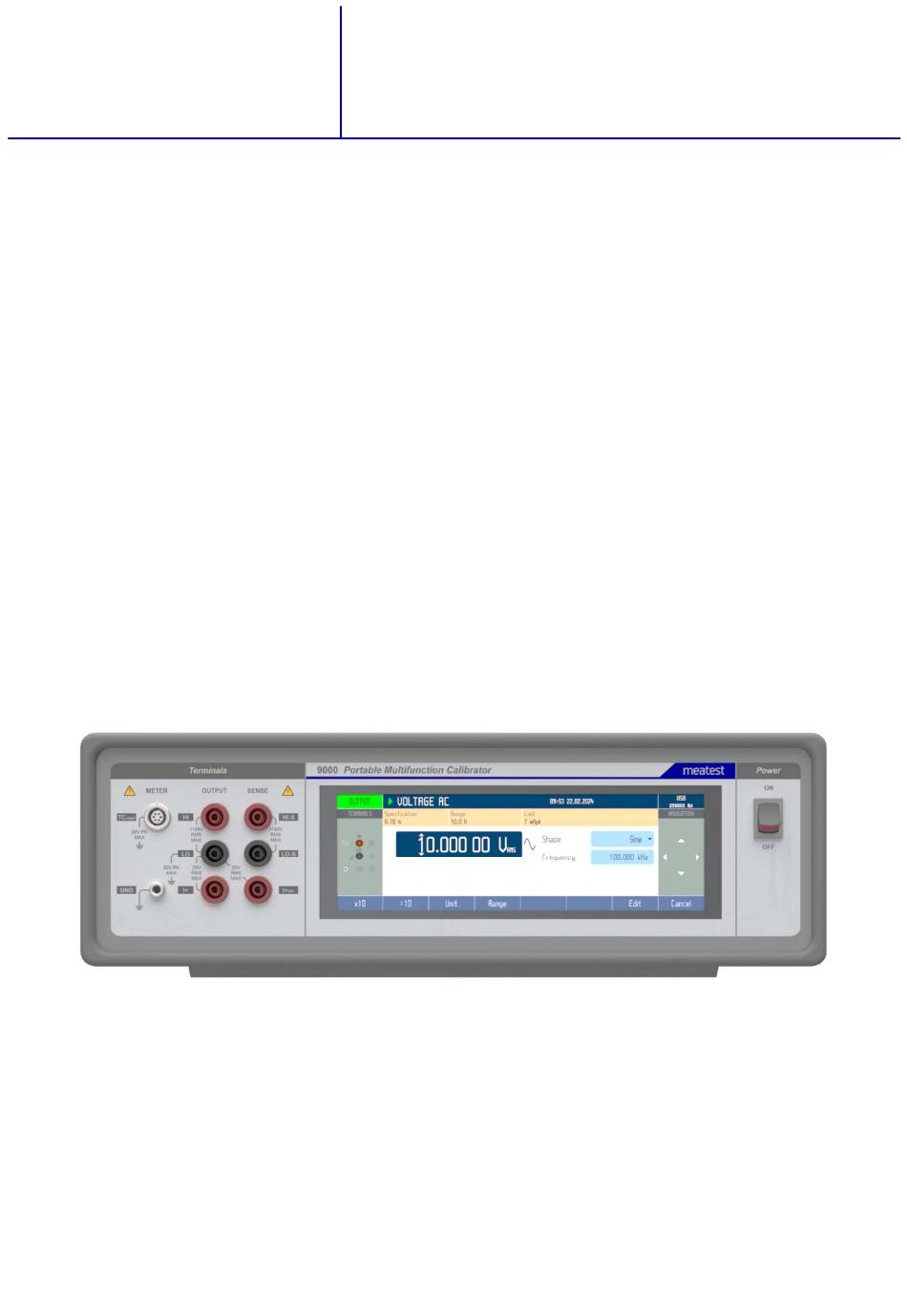

- Page 1 EN, rev. 01 FW ver. 1.00 9000 Portable Multifunction Calibrator user manual...
-
Page 3: Table Of Contents
List of calibration points .................................. 42 Maintenance ..............................45 Fuse replacement ....................................45 External surface cleaning ................................45 Firmware update ....................................45 Error messages......................................46 Specifications ............................... 47 Voltage .......................................... 47 Current ..........................................48 Frequency Output ....................................50 Meatest 9000 User Manual... - Page 4 Figure 30 Frequency mode display ................................30 Figure 31 Password entry ......................................40 Figure 32 Calibration menu ....................................40 Figure 33 Calibration point adjustment – direct ........................... 40 Figure 34 Calibration point adjustment – indirect ..........................41 Meatest 9000 User Manual...
-
Page 5: Introduction
1. Introduction 9000 Portable Multifunction Calibrator is designed as universal calibration tool for electrical calibration laboratories and adjustment in manufacturing processes. Main source functions include voltage, current, frequency and thermocouple simulation. RC option adds resistance, capacitance and RTD simulation functions. -
Page 6: Figure 2 Display
Menu – Tap to enter main MENU. Figure 3 Softkeys 7. Terminal diagram. Shows active output terminals for selected function. Click this area to switch output of selected function on/off as you would with Output button. Meatest 9000 User Manual... -
Page 7: Figure 4 Input/Output Terminals
7. LO-S – Lo sense terminal for 4W resistors or 2W COMP resistors 8. I+sec – Auxiliary Hi terminal of the current output. 9000 can be set to drive current below certain limit through AUX instead of 20A and therefore eliminate the need to switch leads between low current and high current input terminals of meter under test (see MENU >... -
Page 8: Rear Panel Overview
- 0950 Current Coil - ISO17025 calibration certificate (replaces factory calibration certificate) 9000 Portable Multifunction calibrator can be ordered with integrated options as listed in Table 1. Integrated options can be fitted only by manufacturer and certified service providers. Additional accessories come automatically with given options. -
Page 9: Remote Control
“xxxxxx” stands for serial number. Default ports are 23 for Telnet and 22 for both TCP and UDP protocols. 2.2.2. SCPI commands and protocol See 9000 SCPI manual for complete SCPI reference, more details on communication setup and troubleshooting. Meatest 9000 User Manual... -
Page 10: Getting Started
- Use test leads rated for at least 1050 V and 20.5 A in all core functions. - Keep hands away from all Product terminals and exposed metal cable parts during operation. High voltage on those may be cause death or serious injury. Meatest 9000 User Manual... -
Page 11: Power On And Warm-Up
By default the Startup preset is set to VDC function, 10 V with output switched off. Warm-up Specified parameters are guaranteed 30 minutes after switching the calibrator on and stabilizing it in reference conditions. Figure 7 Factory default screen Meatest 9000 User Manual... -
Page 12: Function Setup
Output turns off automatically on calibrator startup and function switch. Output state is indicated by green rectangle next to Function label on the left side of the display. Diagram below terminals label shows which terminals are currently being used. Meatest 9000 User Manual... -
Page 13: What To Do In Case Of Failure
- EMF interference spread through mains power or proximity to EMF source like current coils, high voltage, etc. - strong electrostatic or electromagnetic field which can cause major instability during calibration using higher impedance. Meatest 9000 User Manual... -
Page 14: Menu Reference
Device readiness info. Calibration expiration date is equal to - Expiration of Calibration validity last calibration date plus calibration interval, see menu item - Current date Calibration for more details. - Testing tools Display and Touch screen diagnostics Meatest 9000 User Manual... -
Page 15: Device Menu
> Subnet mask IPv4 format; locked with DHCP On 255.255.255.000 > Default gateway IPv4 format; locked with DHCP On 255.255.255.255 > Port number 0 – 9999 > Host name 14 alphanumeric characters; locked with DHCP Off 9000_SN750011 Meatest 9000 User Manual... -
Page 16: Calibration Menu
Calibration menu Calibration menu contains internal calibration constants and other tools for device adjustment and is therefore password protected. See chapter 6 for more details on 9000 adjustment. Calibration menu has following items: 1. Data. Contains current calibration data. Structure of this menu is described in chapter 6.1. -
Page 17: Device Preset Menu
While editing functions, parameters are stored in temporary RAM until another preset is selected or the device is restarted. Preset doesn’t include harmonic distortion parameters nor main menu settings except those mentioned above. For harmonic preset feature see chapter 5.1.3. Meatest 9000 User Manual... -
Page 18: Calibration Examples
- Triangle symmetrical - Ramp Up - Ramp Down - Harmonic adjustable harmonic products To select requested waveform press Shape button. Select requested waveform with navigation keys or by pressing softkey with requested waveform. Meatest 9000 User Manual... -
Page 19: Figure 14 Harmonic Products Setting
Press Bar button to display relative level of harmonic products setting in frequency domain. Fundamental component is displayed in red, higher harmonics in yellow colour. Press Preview button to see the signal waveform in time domain. Figure 15 Signal bar Meatest 9000 User Manual... -
Page 20: Figure 16 Signal Preview
If the preset is being edited and not saved, an * appears in front of the name on the main panel. Harmonic preset is selected from the main screen of the VAC, IAC functions from "Harmonic" auxiliary parameter. Figure 17 List of harmonic presets Meatest 9000 User Manual... -
Page 21: Figure 18 Voltage Setup Screen
5 MHz. Fixed Sample multipliers multiply previously described Sync output instead of main signal frequency. Sample state On/Off. Turning Sample state ON will cause sampling signal to start when reference signal passes through zero. Sample multiplier Auto/16/32/64/128/256/512/1024/2048 Meatest 9000 User Manual... -
Page 22: Ac/Dc Current
Number of harmonic products is limited to 50 but maximum frequency of harmonic product cannot exceed 5 kHz. Amplitude of individual harmonic products cannot be higher than 30 % of amplitude of fundament signal. See chapter 5.1.2. and 5.1.3. for setting waveform parameters. Meatest 9000 User Manual... -
Page 23: Figure 20 Current Setup Screen
On/Off. Turning Sample state ON will cause sampling signal to start when reference signal passes through zero. Sample multiplier Auto/16/32/64/128/256/512/1024/2048 Output terminal AUX Terminal Enabled/Disabled. Enabling AUX terminal for low current up to defined limit. AUX limit 0 – 2 A Meatest 9000 User Manual... -
Page 24: Resistance
2. Set requested mode of connection either two-wire, four-wire or two-wire comp. Press Wire button on the touchscreen. 3. Switch output terminals on by pressing output button or terminals area on left. 4. Press output button or terminal area to switch output off. Figure 22 Two-wire resistance calibration Meatest 9000 User Manual... -
Page 25: Capacitance
The mode is signed VARIABLE. Except the VARIABLE mode the calibrator offers more accurate capacitance in FIXED mode. In this mode only fix nominal decadic values are available. Figure 24 Capacitance screen Meatest 9000 User Manual... -
Page 26: Figure 25 Capacitance Screen With Open Position
Device is optimised and calibrated for devices that measure current in Hi terminal like common DMM. Do not connect Lo terminal to GND externally. In case of need connect it inside of device. Device uses GND connection status to compensate different small capacitance offsets. Meatest 9000 User Manual... -
Page 27: Figure 26 Capacitance Calibration
. Numerical keypad is not active in this mode. 5.4.4. Capacitance SETUP Capacitance Setting can be activated using Setting softkey. Following parameters are available: - Terminal ground LO output terminals are internally connected to PE wire when parameter is set to ON. Meatest 9000 User Manual... -
Page 28: Temperature Sensor Simulation
Coefficients of „PT User“ scale. RTD calculation formula is = R0 * (1 + T*(A + T*(B + T*C(T-100.0)))) , where T is temperature in °C and R0 is nominal resistance of temperature sensor at 0 °C. Meatest 9000 User Manual... -
Page 29: Figure 28 Tc Temperature Sensor Simulation
TEMPERATURE TC function has related Settings function. The Setting can be opened by pushing the Settings softkey. It contains following items: - Temperature unit selection, °C, °F or K - Terminal ground, enables internally LO output terminal grounding Meatest 9000 User Manual... -
Page 30: Frequency
2. Set the frequency using navigation buttons or numeric keyboard by pressing main value then pressing Edit softkey. 3. Connect the object of calibration to left Hi and Lo terminal. 4. Switch output terminals on by pressing output button or terminals area on left. Figure 30 Frequency mode display Meatest 9000 User Manual... -
Page 31: Performance Verification
Specifications of this calibrator are defined for 1 year period so it should be periodically tested (and adjusted if necessary) within the same period of time. If you don’t have the necessary equipment or can’t do the calibration on your own, please ask local Meatest representative to help you calibrate this device. Required equipment Following instruments are required for performance verification test: - 8½... -
Page 32: Test Points
7.00047 7.99947 8.00053 8.99941 9.00059 9.99935 10.00065 -100 -100.007 -99.993 -50.004 -49.996 -11.00166 -10.99834 10.99834 11.00166 49.996 50.004 99.993 100.007 -950 -950.1005 949.8995 -500 -500.06 -499.94 -110 -110.0249 -109.9751 1000 109.9751 110.0249 499.94 500.06 949.8995 950.1005 Meatest 9000 User Manual... - Page 33 0.109823 0.110177 10 kHz 0.10845 0.11155 50 kHz 0.10845 0.11155 100 kHz 0.4997 0.5003 60 Hz 0.4997 0.5003 1 kHz 0.49955 0.50045 5 kHz 0.49955 0.50045 10 kHz 0.4965 0.5035 50 kHz 0.4965 0.5035 100 kHz Meatest 9000 User Manual...
- Page 34 10.9535 11.0465 10 kHz 49.965 50.035 60 Hz 49.965 50.035 1 kHz 49.895 50.105 5 kHz 49.895 50.105 10 kHz 99.94 100.06 60 Hz 99.94 100.06 1 kHz 99.82 100.18 5 kHz 99.82 100.18 10 kHz Meatest 9000 User Manual...
- Page 35 -20.99085 20.99085 21.00915 99.979 100.021 189.9655 190.0345 -1.9 -1.900385 -1.899615 -1.00025 -0.99975 -0.21 -0.210132 -0.209869 0.21 0.209869 0.210132 0.99975 1.00025 1.899615 1.900385 -19.01155 -18.98845 -10.00705 -9.99295 -2.1 -2.1031 -2.0969 20.5 2.0969 2.1031 9.99295 10.00705 18.98845 19.01155 Meatest 9000 User Manual...
- Page 36 9.992 10.008 1 kHz 9.986 10.014 5 kHz 9.981 10.019 10 kHz 9.96 10.04 20 kHz 18.9857 19.0143 60 Hz 18.9857 19.0143 1 kHz 18.977 19.023 5 kHz 18.9675 19.0325 10 kHz 18.933 19.067 20 kHz Meatest 9000 User Manual...
-
Page 37: Table 2 List Of Main Test Points
2.0928 2.1072 1 kHz 9.977 10.023 60 Hz 20.5 9.977 10.023 120 Hz 9.977 10.023 1 kHz 18.959 19.041 60 Hz 18.959 19.041 120 Hz 18.959 19.041 1 kHz Table 2 List of main test points Meatest 9000 User Manual... -
Page 38: Rc Option Test Points
+0.0001 (min and max kΩ 8½ digit DMM -0.00033 +0.00033 relative to calibration kΩ -0.0005 +0.0005 values) kΩ -0.00165 +0.00165 -0.005 +0.005 kΩ -0.02475 +0.02475 kΩ -0.0001 +0.0001 MΩ 2W, low voltage mode -0.000825 +0.00825 MΩ Meatest 9000 User Manual... -
Page 39: Table 3 List Of Rc Option Test Points
Fixed Capacitance -0.1155 +0.1155 (min and max -0.25 +0.25 LCR meter relative to calibration -0.825 +0.825 values) -0.0025 +0.0025 µF 100 Hz -0.00825 +0.00825 µF -0.025 +0.025 µF Table 3 List of RC option test points Meatest 9000 User Manual... -
Page 40: Adjustment
7. Adjustment Adjustment is done through MENU > Calibration > Data. This menu item is password protected, default factory set calibration code is “9000”. Figure 31 Password entry Calibration menu structure Calibration data are sorted in a tree structure with following hierarchy: 1. -
Page 41: Calibration Point Adjustment
Calibration point adjustment Two different approaches to calibration value adjustment are applied in 9000: - Values denoted in % or without any unit (mostly used in source functions with continuous ranges like V function in fig. -
Page 42: List Of Calibration Points
-190.000 mA 0.000 00 A 0.000 00 A +1.900 00 A -1.900 00 A 20.5 A 0.000 0 A 0.000 0 A +19.000 0 A -19.000 0 A Table 4 Calibration points – DC voltage and current Meatest 9000 User Manual... -
Page 43: Table 5 Calibration Points - Ac Voltage And Current
190 µA 1.9 mA 20 mA 1.9 mA 19 mA Current Harmonic 200 mA 19 mA 190 mA 190 mA 1.9 A 20.5 A 1.9 A 19 A Table 5 Calibration points – AC voltage and current Meatest 9000 User Manual... - Page 44 This function is used for calibration resistance meter of temperature sensors used for cold junction compensation. Nominal value Function Range Offset Full range + 2 kΩ 0.000 00 kΩ 1.000 00 kΩ Resistance 20 kΩ 0.000 0 kΩ 10.000 0 kΩ Meatest 9000 User Manual...
-
Page 45: Maintenance
(.upl) for your device. If your device is not listed, contact Meatest support and ask for firmware update file for your device. 2. Check if the update file version is greater than yours, installed FW version can be found in MENU >... -
Page 46: Error Messages
Check connected load if it exceeds maximal output voltage limits. 11008: Power supply temperature is too high. Check inlet and outlet perforation and remove items that can block air flow. Table 6 Error code list Meatest 9000 User Manual... -
Page 47: Specifications
10.000 mV – 100.000 mV 0.010 + 0.0060 0.10000 V – 1.00000 V 0.006 + 0.0010 1.0000 V – 10.0000 V 0.006 + 0.0005 10.000 V – 100.000 V 0.006 + 0.0010 100.00 V – 1050.00 V 0.009 + 0.0015 Meatest 9000 User Manual... -
Page 48: Current
RMS, peak, peak-peak, average Frequency range: 10.000 Hz – 20.0000 kHz below 200 mA 10.000 Hz – 5.0000 kHz for 200 mA – 2 A 10.000 Hz – 1000.00 Hz above 2 A Frequency uncertainty: 5 ppm Meatest 9000 User Manual... - Page 49 THD 13.45 %, harmonics Current range: 100.0000 µA – 2.000000 A (2.82 A max.) Frequency range: 10.000 – 1000.00 Hz Peak value uncertainty: 0.21 % of value + 0.1% of range + 700 nA Meatest 9000 User Manual...
-
Page 50: Frequency Output
2080 – 2315 uncertainty 0.72 0.49 0.35 0.39 Automatic cold junction compensation (Adapter 91) Sensor type: Pt100 Temperature uncertainty: 0.1 °C with calibration constants saved in 9000, 0.3 °C otherwise Typical sensor stability: < 0.05 °C/year Meatest 9000 User Manual... -
Page 51: Rc Option (Resistance, Capacitance And Rtd Functions)
12. Specification applies to “True Ohm” (bipolar) measurement method. Add 15 µV divided by test current when measuring with pure DC signal to account for thermoelectric voltage at output terminals. For example, 10 mA test current adds 15 µV / 10 mA = 1.5 mΩ additional floor. Meatest 9000 User Manual... - Page 52 Range of R0 setting: 20 – 2000 Ω Thermometer type Temperature range Uncertainty -200.000 – 0.000 ºC 0.15 ºC Pt100 – 1000 -0.001 – 850.000 ºC 0.2 ºC Ni100 – 1000 -60.000 – 300.000 ºC 0.1 ºC Meatest 9000 User Manual...
-
Page 53: Certificate Of Conformity
According to EN ISO/IEC 17050-1:2010 standard as well as 2014/30/EU and 2014/35/EU directives of European Parliament and European Council, MEATEST, spol. s r. o., manufacturer of 9000 Portable Multifunction Calibrator, based in Železná 3, 619 00 Brno, Czech Republic, declares that its product conforms to following specifications: Safety requirements - EN 61010-1 ed.
