Summary of Contents for Meatest M505D
- Page 1 M505 (D) Process calibrator Operation manual...
-
Page 3: Table Of Contents
MEATEST, s.r.o. Process Calibrator M505 Content INTRODUCTION ..........................2 UNPACKING INSTRUCTIONS ....................... 3 INPUTS, OUTPUTS and KEYBOARD .................... 4 GRAPHICS DISPLAY ........................5 DATALOGGER (Software Option) ....................5 FUNCTION SELECTION - CALIBRATOR ................... 6 GRAPHICS ............................8 GRAPHICS............................ 8 TRANSIENTS ..........................8 MENU STEPS ............................ -
Page 4: Introduction
Process Calibrator M505 (D) MEATEST, s.r.o. Introduction Current Calibrator 0/4 - 22mA, Source/Sink Voltage Calibrator 0-25V mV Outputs 0-27mV and 0-540 mV DIN Thermocouples J, K, N, R, S, T, B, E RTD Simulator Pt and Ni ... -
Page 5: Unpacking Instructions
When you receive the shipment, inspect the container and equipment for signs of damage. Note any evidence of rough handling in transit. Immediately report any damage to the Meatest customer service, Phone +420 543 250 886 or Fax +420 543 250 890 and to the shipping agent. -
Page 6: Inputs, Outputs And Keyboard

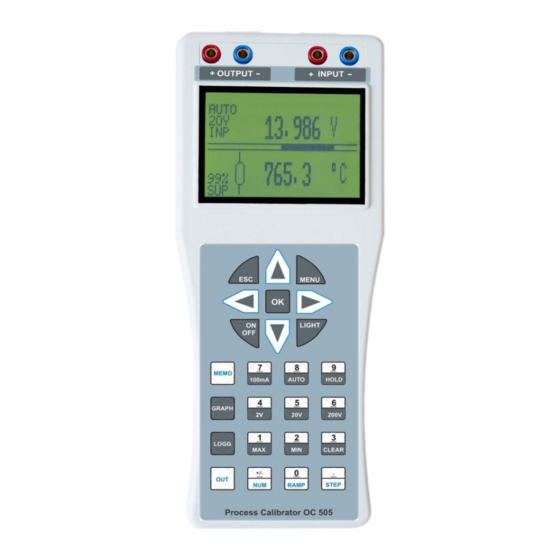

Process Calibrator M505 (D) MEATEST, s.r.o. Inputs, Outputs and keyboard CALIBRATOR Voltage and Current Outputs, Resistance and RTD: + OUTPUT - Thermocouples: Terminals at the front MULTIMETER Voltage and Current Inputs: + INPUT - 1 Thermocouples Connector 2 Output Calibrator... -
Page 7: Graphics Display
Process Calibrator M505 (D) MEATEST, s.r.o. Graphics display The LCD Display is divided into two parts. The upper part is for the multimeter functions, the lower part for the calibrator. The bargraph in the middle is the analogical representation of the measured input signals. The left side... -
Page 8: Function Selection - Calibrator
Process Calibrator M505 (D) MEATEST, s.r.o. Function selection – calibrator The calibrator function is selectable with the keys. The output values can be set in steps, ramps or free values. The output function will be selected with OUT. Vertical cursor keys select the required function:... - Page 9 Process Calibrator M505 (D) MEATEST, s.r.o. DIRECT VALUE ENTRY When the key NUM is pressed, the display shows the previous value with flashing digit. This digit can be set from the keyboard. The flashing digit will be positioned automatically. It can also be positioned with the horizontal cursors.
-
Page 10: Graphics
Process Calibrator M505 (D) MEATEST, s.r.o. Graphics For fast diagnostics of external signals measured by the multimeter the graphics representation can be displayed. Two modes of operation are available: - GRAPHICS the running measurement is automatically stored in 128 points (FI-FO) - TRANSIENTS Eight individual memory slots are assigned for fast signals –... -
Page 11: Menu Steps
Process Calibrator M505 (D) MEATEST, s.r.o. Menu steps When the key MENU is used in the measuring mode, the display will change into program mode. Ramp and step selection Step selection Individual step, minimum value, User 1 Individual step, maximum value, User 1... -
Page 12: Additional Functions In The Multimeter Mode
Process Calibrator M505 (D) MEATEST, s.r.o. Additional functions in the multimeter mode The key MENU opens the Functions TARA and FILTER for the Multimeter: The TARE can be activated The Filter can be set for the input signal ADDITIONAL FUNCTIONS... -
Page 13: Calibration Of Calibrator Outputs
Process Calibrator M505 (D) MEATEST, s.r.o. 10.1 CALIBRATION of CALIBRATOR OUTPUTS Select the required range (1) or (4). Currents, Voltage, Resistors and Thermocouples will be calibrated in the Range (1). In the Range (2) the Resistors and the RTD will be calibrated. -
Page 14: Calibration Of Resistances
Process Calibrator M505 (D) MEATEST, s.r.o. 10.1.3 Calibration of Resistances Connect Ohm-Meter to the calibrator outputs. The required accuracy is 0.05%. Set with the keyboard the resistance value which is being measured with the connected Ohm-Meter. Set with the keyboard the resistance value which is being measured with the connected Ohm-Meter. -
Page 15: Datalogger
MEATEST, s.r.o. The key ESC terminates the calibration and the display returns into the measuring mode. Datalogger (model M505D only) When the function Datalogger is activated, the calibrator output and the multimeter input signals will be stored in the internal memory. This permits fast checking of transmitters and their calibration in the field. -
Page 16: Softmanager M505W
Process Calibrator M505 (D) MEATEST, s.r.o. Softmanager M505W The Softmanager M505W permits an upload of the stored data and the transients to a PC, displaying the results in tables and graphics and handling under Windows and Excel. M505 Calibrator will be connected via USB to a PC and switched-on. - Page 17 Process Calibrator M505 (D) MEATEST, s.r.o. Logger Table The stored data in M505 are transferred to the PC with Upload. They appear in selected units in a table format with date and time added from internal RTC. When the calibrator signal sent to the transmitter under test is e.g. 0-22mA and the transmitter output is a current, the transmitter signal has to be measured at the multimeter input 100mA.
- Page 18 Process Calibrator M505 (D) MEATEST, s.r.o. Transient Data Table Number Eight memory slots for fast signals at the multimeter input. Each Transient contains 256 samples, selectable Sampling Time and selectable Trigger Level (see 5.2). Upload The selected Transiente will be transferred to the PC with Upload.
- Page 19 Process Calibrator M505 (D) MEATEST, s.r.o. Transient Graphics The selected Transient appears as Graphics, with Time Base, Scale, Date and Time. Operation manual v6...
-
Page 20: Specification
Process Calibrator M505 (D) MEATEST, s.r.o. Specification 13.1 CALIBRATOR Voltage and Current: + OUTPUT – Thermocouples: Cu Connector Current Source Range 0 ... 22mA. Maximum external Shunt 750 Ohm ± (0.05% from Value + 0.1% from Range) Accuracy Resolution 0.001 mA... -
Page 21: Multimeter
We will be pleased to answer all your questions not only to this instrument but also to all our calibrators and measuring equipment. Please call our customer service or write to us meatest@meatest.cz MEATEST, spol. s r.o. www.meatest.com Zelezna 509/3 meatest@meatest.cz...
