Chassis Quick Installation Guide
Bottom foam
packing material
Shipping skid
4 Remove the top foam packing material (Figure 5).

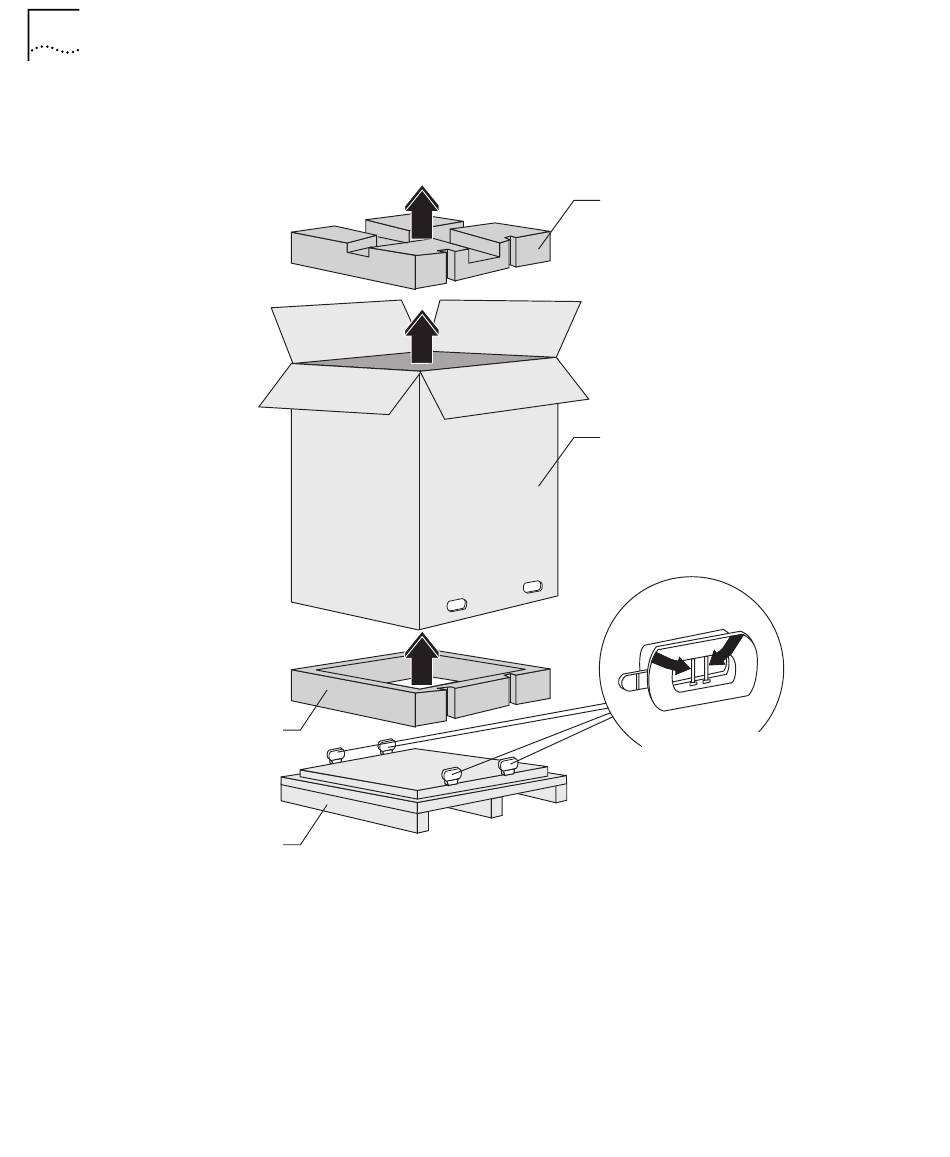

Figure 5 Removing the Chassis Shipping Box
5 On the outside of the shipping box on the skid, remove the locking
inserts. To release the inserts easily, push in on the inner latch mechanism
at the same time that you pinch together the top of the inner latch
mechanism, and then pull the inserts out.
See the diagrams of the locking inserts on the outside of the shipping box
just above the locking inserts.
6 Remove the corrugated sleeve by pulling it straight up (Figure 5).
Top foam
packing material
Corrugated sleeve
Remove locking inserts
by pinching top of inner latch
mechanism together to
release and pull out
