Switch Setup Tasks
Administer and Operate
the Switch
• Enterprise Management Engine
User Guide , Chapter 4 and
Chapter 5
Troubleshoot Problems
• Enterprise Management Engine
User Guide , Chapter 8
Configure the Switch for
Management
• Enterprise Management Engine
User Guide , Chapter 4 and
Chapter 5
Power On the Switch
• Enterprise Switch Getting Started
Guide , Chapter 5
Install Interface Modules
• Interface module quick start or
getting started guides
• Interface module user guides
(if available)

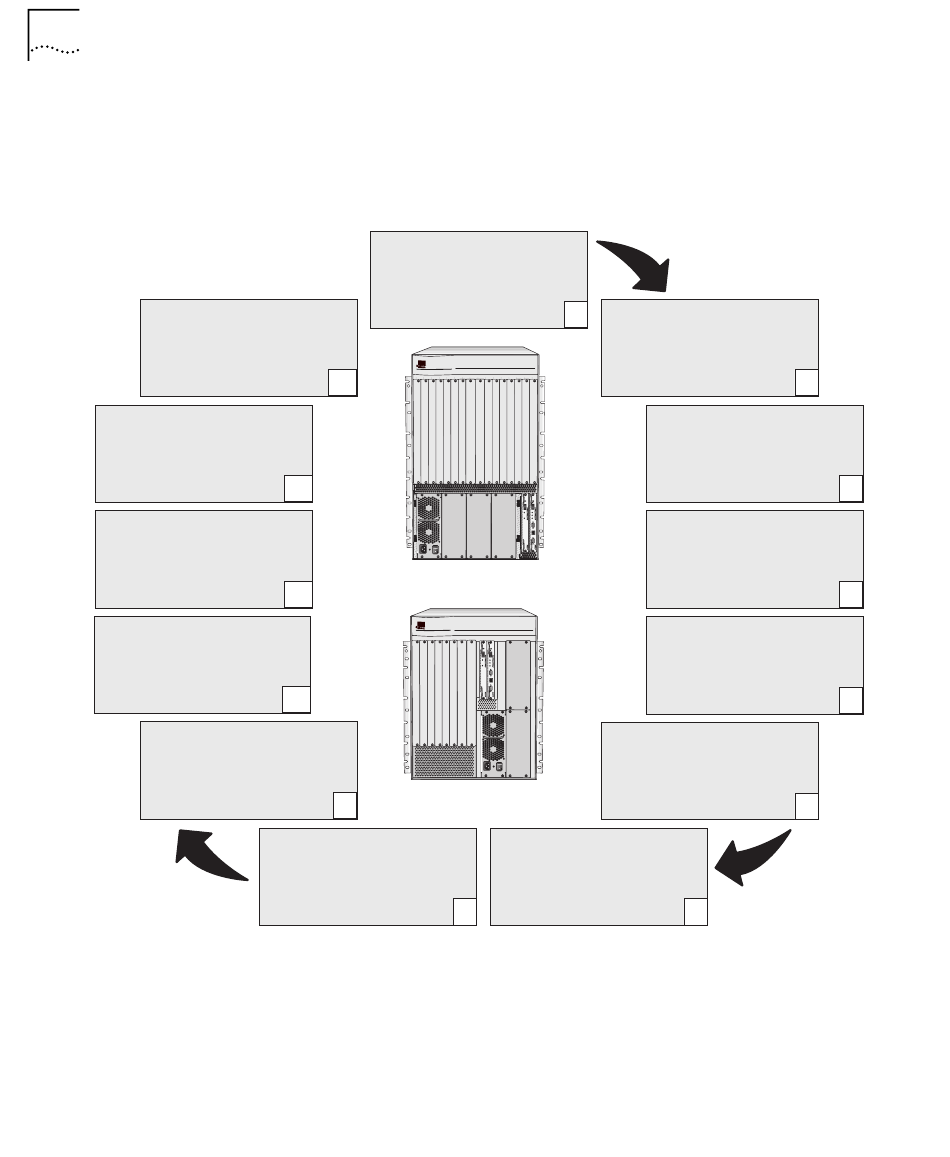

Figure 3 illustrates the tasks to perform to set up a CoreBuilder 9000
8-slot or 16-slot Enterprise Switch.
Figure 3 Setup Tasks for CoreBuilder 9000 Enterprise Switch 8-slot Chassis and
16-slot Chassis
Determine Site Requirements
• Enterprise Switch Getting Started
Guide , Appendix B
R
13
1 2 3 4
12
CoreBuilder
11
R
1 2 3 4
10
CoreBuilder
9
Install a Switch Fabric
Module
• Switch fabric module quick
start or getting started guides
• Switch fabric module
user guides (if available)
Unpack the CoreBuilder 9000
1
Chassis
• "Unpacking Instructions"
(On the shipping box and
®
CoreBuilder 9000 in this guide)
5 6 7 8 9 10 11 12 13 14 15 16
®
9000 16-slot Chassis
®
CoreBuilder 9000
5 6 7 8 9 10
Install the Plastic Power
Supply Air Grille Bezel
(for the 16-slot chassis only)
ON
• Chassis Quick Installation Guide for
the 8-slot Chassis and the
®
9000 8-slot Chassis
16-slot Chassis
Install an EME Management
Module
• Enterprise Management Engine
Quick Start Guide
• Enterprise Management Engine
8
User Guide
2
Install the Universal Mounting
Shelf (for a rack installation)
• Chassis Quick Installation Guide for
the 8-slot Chassis and the
16-slot Chassis
Install the Chassis and
Optional Devices
• Chassis Quick Installation Guide for
the 8-slot Chassis and the
16-slot Chassis
Install a Power Supply and
the Power Cable
• Power Supply Installation Guide
for the 8-slot Chassis and
16-slot Chassis
6
7
3
4
5
