10 Chassis Quick Installation Guide
The 16-slot chassis is shipped with module slot 1, slot 8, and slot 17
empty; power supply slot 1 empty; and management module slot 17
empty. No blank faceplate covers these slots. After you receive the
chassis, remove the faceplate from power supply slot 4 to help make
chassis installation easier. See step 8 in this section.

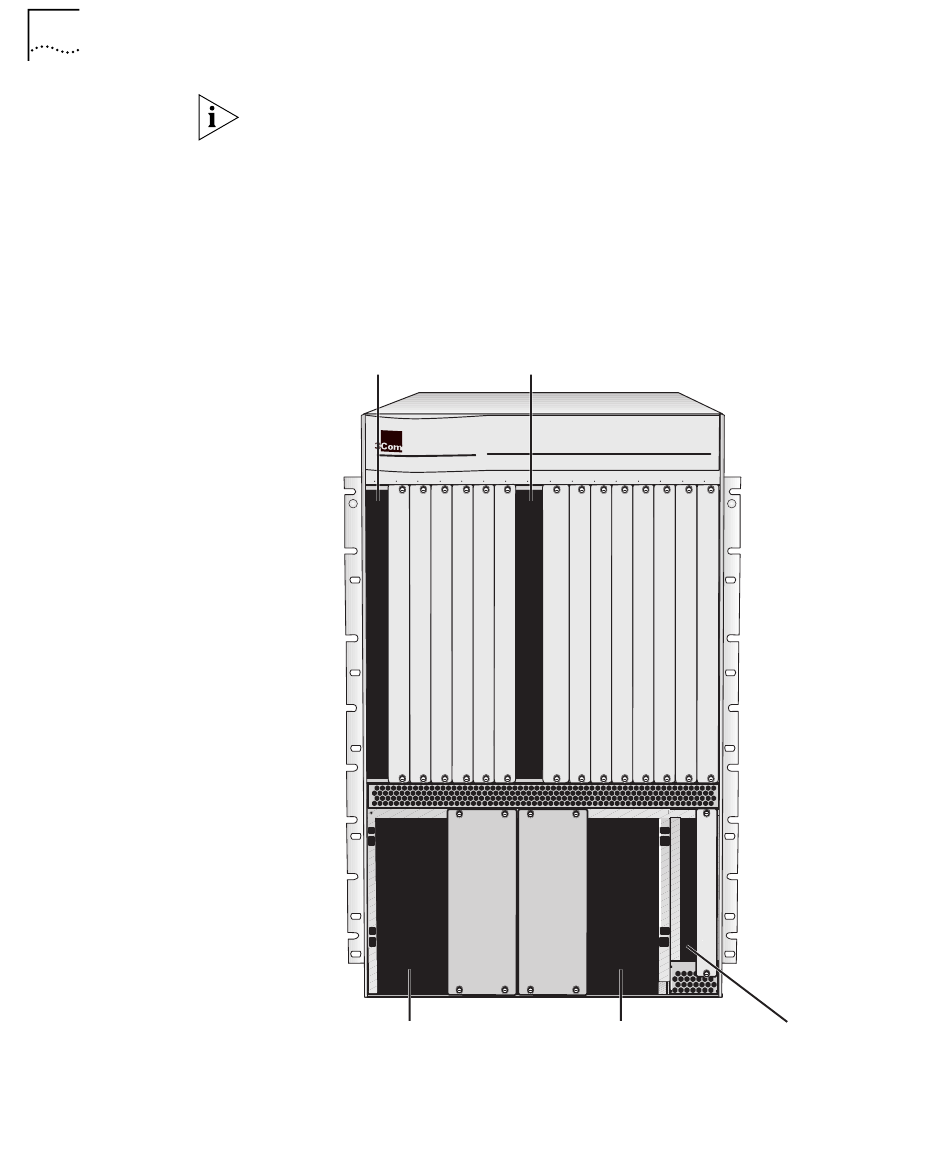

Figure 7 The CoreBuilder 9000 16-slot Chassis is Installed with These Slots
Empty
Interface Switch
module fabric module
slot 1 slot 8
®
CoreBuilder 9000
R
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Power supply Power supply Management
slot 1
slot 4 module
slot 17
