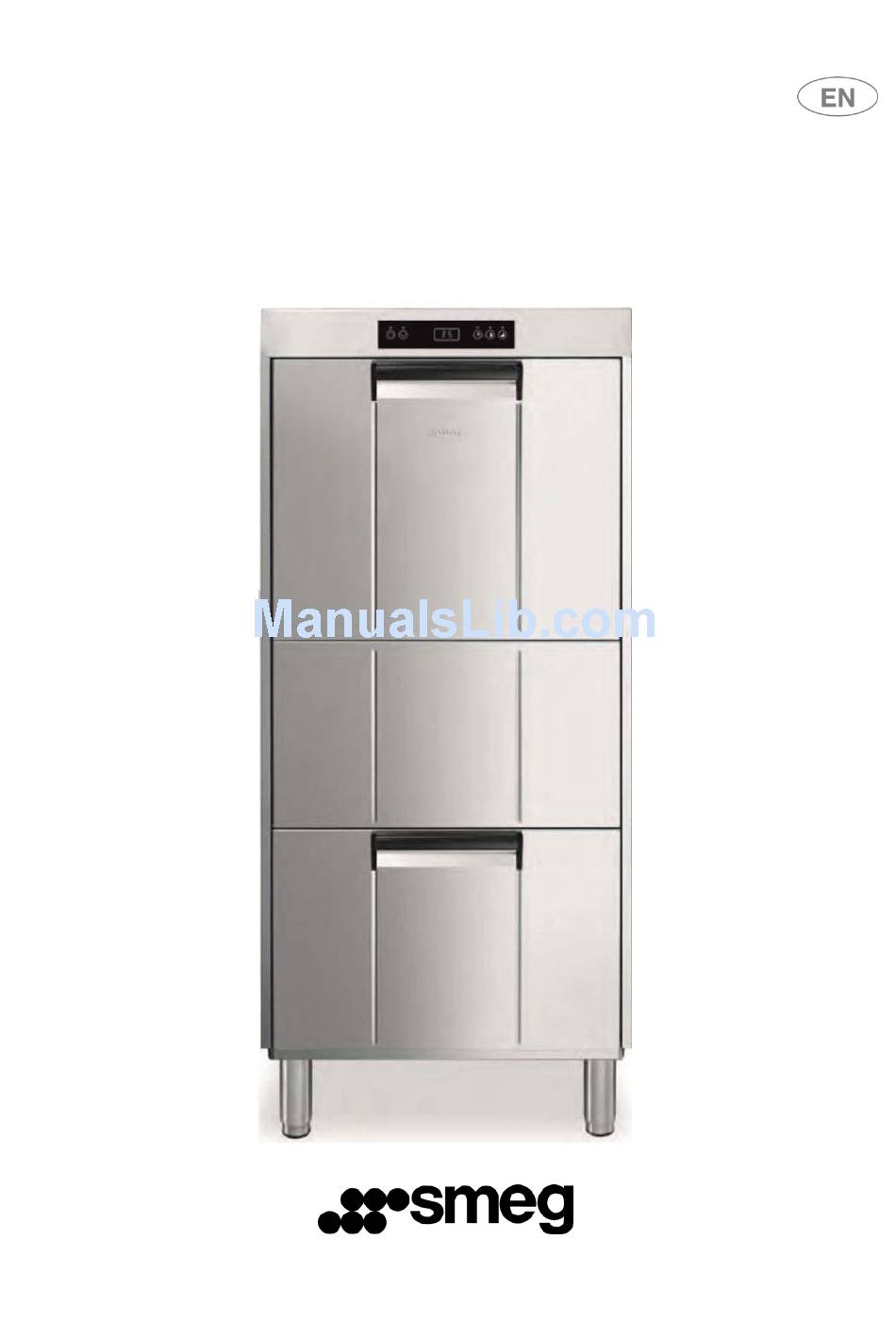

- Page 1 PROFESSIONAL DISHWASHER ...
-
Page 2: Table Of Contents
CONTENTS PRECAUTIONS FOR SAFETY AND USE ..4 TECHNICAL DATA ...6 INSTALLATION AND POSITIONING ...8 INSTRUCTIONS FOR TECHNICAL STAFF ...8 Plumbing hookup ..8 Electrical connection .. 10 Using the water softener (on models with this feature only) .. 14 SET‐UP .. 16 Display Contents ... 16 Note on display of temperatures .. 16 Parameter programming procedure .. 16 Modifiable parameters ... 17 ... - Page 3 Lengthy periods out of use ... 28 TROUBLESHOOTING .. 28 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE USER) ... 30 SMEG Thanks you for choosing one of its products. Read all the instructions in this manual carefully to become familiar with the right conditions for the TECHNICAL INSTRUCTIONS These are intended for the qualified staff who are to install, commission and test the appliance and carry out any servicing and repairs. INSTRUCTIONS FOR THE USER These provide recommendations for use, a description of the controls and the correct procedures for cleaning and maintaining the dishwasher. ‐ CWH 510 D proper use of your dishwasher. ...
-
Page 4: Precautions For Safety And Use
1 PRECAUTIONS FOR SAFETY AND USE THIS MANUAL IS AN INTEGRAL PART OF THE DISHWASHER AND MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE APPLIANCE. POSITIONING, HOOKUP, COMMISSIONING, TROUBLESHOOTING AND REPLACING THE POWER CABLEMUST ALWAYS BE CARRIED OUT BY QUALIFIED STAFF. THEAPPLIANCE MUST BE GROUNDED AS REQUIRED BY ELECTRICAL EQUIPMENT SAFETY STANDARDS. THE DISHWASHER IS INTENDED FOR PROFESSIONAL USE ONLY AND MUST ONLY BE USED BY AUTHORISED ... - Page 5 THE SYMBOL OF THE RUBBISH BIN WITH A BAR ACROSS IT ON THE PRODUCT OR IN THE TECHNICAL DOCUMENTATION INDICATES THAT THIS PRODUCT MUST NOT BE TREATED AS ORDINARY DOMESTIC WASTE BUT MUST BE CONSIGNED TO THE SPECIAL COLLECTION POINT FOR THE RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT. NEVER PLACE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE, WHICH MIGHT CAUSE AN EXPLOSION, INSIDE THE APPLIANCE. NEVER LOAD DISHES DIRTY WITH ASH, WAX OR PAINTS. NEVER USE THE DISHWASHER OR ANY PART OF IT AS A LADDER, SUPPORT OR STAND FOR PEOPLE, ANIMALS OR ANY OBJECT. LEANING OR SITTING ON THE OPEN DOOR OF THE DISHWASHER MIGHT CAUSE IT TO TIP OVER, PUTTING PEOPLE IN DANGER. NEVER LEAVE THE DISHWASHER DOOR OPEN SINCE PEOPLE MIGHT TRIP OVER IT. DO NOT DRINK ANY WATER LEFT IN THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM. THE APPLIANCE IS NOT SUITABLE FOR USE BY JUVENILES OR PERSONS WITH REDUCED PHYSICAL, SENSORIAL OR MENTAL CAPACITIES, OR THOSE WITHOUT THE NECESSARY KNOWLEDGE AND EXPERIENCE. SUCH PERSONS MAY ONLY USE THE APPLIANCE UNDER THE SUPERVISION OF A PERSON RESPONSIBLE FOR THEIR SAFETY. ‐ CWH 510 D 5 ...
-
Page 6: Technical Data
2 TECHNICAL DATA Supply voltage Supply voltage Frequency Max. power absorption at 400V 3N ~ Max. power absorption at 230V 1N ~ Boiler heating element power at 400V 3N ~ Boiler heating element power at 230V 1N ~ Tank heating element power Water intake pressure Water intake temperature Intake water hardness Rinse cycle water consumption Boiler capacity Tank capacity Standard cycle duration with intake water at 50°C Noise level Degree of protection Net weight Power supply cable type Fuse 400V 3N ~ C CWH 510 D 3.7kW ‐‐‐‐ 5.2kW 5x2.5 16° 3P+N ... - Page 7 CAVITY DIMENSIONS FOR BUILT‐UNDER INSTALLATION KEY TO LETTERS USED IN DIAGRAM R LOWER BACK PANEL C FILLER HOSE Q EARTH TERMINAL E ELECTRICITY SUPPLY CABLE P PERISTALTIC HOSES S DRAIN HOSE EXTERNAL DISPENSER POWER SUPPLY CABLE T ENTRY POINT ‐ CWH 510 D 7 ...
-
Page 8: Installation And Positioning
3 INSTALLATION AND POSITIONING INSTALLATION and POSITIONING Bring the dishwasher to the installation site, remove the packaging and check the appliance and components for damage; any damage found must be reported to the transporter in writing. The packaging components (plastic bags, expanded polystyrene, nails, etc.) must not be left within reach of children and pets since they are potentially dangerous.. All packaging materials used are environment‐friendly. They can be kept without constituting any hazard, or may be disposed of at a specialist waste disposal centre. The plastic components suitable for recycling are marked as follows: PE polyethylene: external packaging film, bag containing the instructions, protective bags. PP polypropylene: straps. PS expanded polystyrene: corner guards, top of packaging. Wooden and cardboard components can be disposed of in accordance with the relevant regulations. When the product is decommissioned it must not be dumped in the environment; it must be disposed of in accordance with the relevant regulations. All metal parts are in stainless steel and can be removed. The plastic parts are marked with the symbol identifying the material used. POSITIONING: Caution: the indoor system and premises in which equipment for institutions is installed must comply with the relevant regulations. The manufacturer declines all liability for direct or indirect injury or damage deriving from failure to comply with these regulations. Before installation, check that there are no objects or materials in the vicinity which may be damaged by steam or splashes of washing solution, or that any such items are suitably protected. ... - Page 9 The water pipelines and electricity supply cable lead out of the bottom right‐ hand corner of the appliance. Connect the water intake hose to a connector with ¾” gas threaded fitting, fitting the filter A provided (in models with aquastop, the filter and ring‐nut form a single unit). The connection to the water mains must only be made with new hoses; the use of old or worn hoses is not permitted. The dynamic water supply pressure must be between 2 and 6 bar; if it is higher a pressure reducer must be installed. If the pressure is less than 2.5 bar it might be necessary to fit a special pump on the appliance to ensure optimal performance. Contact the After‐Sales Service. It is essential to fit a main stop tap on the water intake deliver pipeline; the tap must be accessible after installation of the appliance, so do not install it behind the dishwasher. The stated cycle duration applies to appliances supplied with hot water >50°C<60°C If the dishwasher is supplied with cold water, the cycle duration might increase depending on the intake water temperature. ‐ CWH 510 D 9 ...
-
Page 10: Electrical Connection
The dishwasher is fitted with a drain pump and can operate with drain connections on the floor or wall. Refer to the connection diagram for the maximum permitted height of wall drains – (see TECHNICAL DATA) Caution: make sure that the intake and drain hoses are not bent, constricted or crushed after installation. When installing the drain hose to a siphon with valve, the maximum height of the drain outlet is reduced to 600 mm. 4.2 Electrical connection The dishwasher and any additional equipment must be connected to the electrical system ... - Page 11 Key to single‐phase/three‐phase electrical system diagram NTCB Boiler temperature probe NTCV Tank temperature probe SDET Detergent sensor SBRIL Rinse aid sensor SFIL Filter sensor FLMT Flowmeter Salt sensor Door sensor Rinsing pump Washing pump Boiler level pressure switch Boiler safety thermostat Terminal board RFI filter FUSE Mains fuse Boiler contactor Boiler heating element T‐FU Overtemperature fuse THRV Tank safety thermostat Tank heating element Figure – Appliance single‐phase electrical system diagram ‐ CWH 510 D Aquastop solenoid valve Regeneration solenoid valve Brine discharge solenoid valve ...
- Page 12 ‐ CWH 510 D Figure – Appliance three‐phase electrical system diagram 12 ...
- Page 13 ‐ CWH 510 D 13 ...
-
Page 14: Using The Water Softener (On Models With This Feature Only)
First start‐up The electrical protection system must undergo a functional test before the appliance is put into operation. The appliance must be installed and/or inspected by qualified staff, who will start it up for the first time and provide the relevant operating instructions. Preparing for use (important) The rinse aid dispenser is fitted on all models, the detergent dispenser only on some. If both dispensers are present put the external detergent and rinse aid containers in place and insert the respective intake hoses on the rear of the appliance into them. ... - Page 15 The first time the dishwasher is used, a litre of water must be poured into the tank with the salt. Whenever the tank is filled, always take care to ensure that the cap is firmly closed. The mixture of water and detergent must not get into the salt tank, as this would impair operation of the regeneration system. In this case warranty cover will be forfeited. Whenever the type of detergent or rinse aid is changed, it is ABSOLUTELY ESSENTIAL to flush out the peristaltic pumps by placing the external intake pipes in water for a few cycles. Always use only products specifically recommended for use in a dishwasher. Failure to comply with this recommendation leads to forfeiture of the warranty entitlement on the appliance’s water system. The internal pipes of the detergent and rinse aid pumps should be replaced by the After‐Sales Service every 12 months or 15,000 wash cycles and operation of the diaphragm rinse aid pump ...
-
Page 16: Set-Up
5 SET-UP Set‐up During first start‐up, the functions/parameters listed below must be set or adjusted: A series of operations can be carried out when the dishwasher is first installed to customise it to the user's requirements. To modify the parameters, proceed as follows. 5.1 Display Contents The two green digits provide the following information: Appliance off but powered up: all decimal points on both digits Appliance on: Boiler temperature Washing phase: Tank temperature ... -
Page 17: Modifiable Parameters
ID Description M F A0 F A1 Boiler max. heating time F A2 Tank max. heating time F A3 Maximum water intake time F A4 Maximum emptying wait time ‐ CWH 510 D CWH510D Notes 03 Construction version Do not modify 03 Do not modify 80C Step 1 degree WARNING: The actual boiler temperature depends on whether the connection is single‐phase or three‐phase. With three‐phase connection, do not set more than 85° 58C Step 1 degree 01 0=off 1=on 01 ... -
Page 18: Adjusting Detergent And Rinse Aid Dispensing
5.6 Adjusting detergent and rinse aid dispensing Caution: ensure that the appliance is not powered up ‐ ELECTRIC SHOCK HAZARD RD Detergent dispensing regulator screw (on some models only) RB Rinse aid dispensing regulator screw RV Inspection panel removal screw RD: Detergent dispensing regulator screw. (on some models only ) Adjustments are made using the adjuster screw AS SHOWN. The quantity dispensed is reduced by turning anticlockwise and increased by turning clockwise. ‐ CWH 510 D RB: Rinse aid dispensing regulator screw Adjustments are made using the adjuster screw AS SHOWN. The quantity dispensed is reduced by turning ... -
Page 19: Adjusting The Regeneration Frequency (Models With Softener Only)
5.7 Adjusting the regeneration frequency (models with softener only) 5.8 Memorisation procedure To access the programming menu, proceed as follows: 1) switch the appliance off by pressing the On Off 2) Hold down the and 3) Use the key to modify the parameter; H0,H1,H2,H3,H4,H5 and H0 will appear on the display in cyclic sequence 4) Press the On Off key to confirm the change and quit programming mode. With values over 60°dF an external water treatment device must be used and the regeneration frequency must be set at H00 5.9 Table of parameters ... -
Page 20: Malfunctions Shown On The Display (For The Technician)
6 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE TECHNICIAN) The dishwasher is able to identify a number of malfunctions and show them on the display. If the problem persists after the dishwasher has been switched off and back on, proceed as described below: E.1 Boiler temperature probe malfunction E.2 Tank temperature probe malfunction E.3 Water intake malfunction E.4 Boiler overheating. E.5 Tank overheating E.6 Water not pumped out of tank ‐ CWH 510 D Boiler temperature probe disconnected or not working Tank temperature probe disconnected or not working Water intake not completed in the maximum time allowed Check dynamic pressure in intake system, clean water intake filter. If the problem persists: ‐ tank pressure switch has failed (continuous empty ... -
Page 21: Instructions For The User
E.7 Boiler heating malfunction (does not heat up) E.8 Tank heating malfunction (does not heat up) E.9 Microprocessor failure 7 INSTRUCTIONS FOR THE USER 7.1 Control panel On‐off button Total emptying button (tank and boiler) Regeneration key (only if softener is fitted) L1 power on LED L2 pump‐out in progress LED L3 no salt LED (only if softener is installed) L4 no salt LED (only if softener is installed) ... -
Page 22: Before Washing
L5 short cycle program LED L6 medium cycle program LED L7 long cycle program LED 7.2 Before washing Use only detergents and rinse aids for industrial dishwashers. Do not use detergents intended for hand washing. We recommend the use of Smeg products, specially developed for this dishwasher. When topping up the tanks, take care not to swap the products; this might damage the dishwasher and cause malfunctions. Do not mix different detergents; this would damage the dispenser device. Failure to comply with this recommendation leads to forfeiture of the warranty entitlement on the appliance’s water system. Industrial dishwasher detergents may cause serious irritation. Comply carefully with the instructions provided by the detergent producer on the pack. 2. The level of ... -
Page 23: First Use Each Day (Tank And Boiler Empty)
7.3 First use each day (tank and boiler empty) Display shows WARNING! If the appliance is connected to cold water, wait at least 15' before moving on to the next phase to give the tank time to reach the correct washing temperature. When the door is closed again, the last program is repeated. 7.4 Choosing the program ‐ CWH 510 D Actions and what happens Door closed and master switch on ON: Press and hold it down for 2‐3 seconds; the ON/OFF light and the two digits on the display light up. The dishwasher fills the tank automatically. At the end of this phase, when the tank is full, P appears on the display and program lights L5, L6 and L7are lit. Load the dishes and close the door. Select the programme required by pressing one of the three buttons; the LED of the selected program flashes and the other two go out. The cycle starts once ... -
Page 24: Changing The Program (Not Possible Once The Program Has Started)
PROGRAM Short Glasses and cups Medium Glasses, cups and plates with light dirt Long Very dirty dishes and cutlery (*) The cycle duration stated above is guaranteed if the appliance is connected to hot water > 50°C <60°C If the dishwasher is supplied with cold water, the cycle duration might increase depending on the intake water temperature and the "thermostop" setting. 7.5 Changing the program (not possible once the program has started) Glasses Load glasses upside down. (see photo) Cutlery Use the basket(s) provided. Load cutlery loose, preferably with the handle at the bottom, taking care not ... - Page 25 The dishwasher is able to perform a pump‐out and self‐cleaning cycle with automatic switch‐off. After a total pump‐out the filters should be cleaned as described in the relevant point. Never switch the dishwasher off with water in the tank; always pump out first. Models with water softener: if cycles are added to total pump‐out. Resin regeneration + flushing is performed. The pump‐out phase lasts about 15' after which the appliance switches off automatically. Resin regeneration (for models with water softener) Once the number of washing cycles set during installation has been completed, as indicating that the resins will be spent and regeneration is required, the LED above the cycle. Therefore, during the working day resin regeneration is RECOMMENDED following the procedure ...
-
Page 26: Maintenance And Cleaning
Caution: use only salt of the specific type, do not use cooking salt. Salt must be added when the LED underneath the symbol shown in the box on the left lights up. Top up with salt when there is no water in the tank to prevent washing water from getting into the water softener device. The salt tank has a capacity of about 1 kg of coarse‐grained salt . The salt tank is in the bottom of the appliance's tank. After removing the basket, undo the cap and pour the salt in using the funnel supplied. Remove any salt residues around the opening before screwing the cap back on. ... -
Page 27: Daily Cleaning Of Filters
8.1 Daily cleaning of filters Cleaning the filter at the end of each working day Remove the filters (simply lift them out as shown here), taking care that no large residues fall into the sump underneath. Clean them to remove residues and rinse with plenty of water, then put them correctly back in place; do not use sharp or pointed tools. ... -
Page 28: Troubleshooting
Clean the outside of the appliance with a damp cloth and neutral soap, rinsing and drying thoroughly. 8.3 Lengthy periods out of use If the dishwasher is to be out of use for a fairly long period of time, the detergent and rinse aid dispenser devices must be emptied to prevent crystallisation and damage to the pumps: remove the intake hoses from the detergent and rinse aid containers and place them in a container of clean water, then perform a few wash cycles followed by a complete pump‐out. Finally, turn off the master switch, close the water intake valve and leave the door ajar until the interior is completely dry. The detergent and rinse aid intake hoses must be put back into the containers when the dishwasher is returned to service, taking care not to swap them over (red hose = detergent, blue hose = rinse aid). 9 TROUBLESHOOTING How to deal with any problems without calling the after‐sales service ... - Page 29 PROBLEM INADEQUATE RINSING STAINS ON GLASSES AND CUTLERY WATER IN TANK AFTER PUMP‐OUT DISHES NOT PROPERLY DRIED ‐ CWH 510 D POSSIBLE CAUSE Dynamic pressure of mains water insufficient Spray arm nozzles fouled Limescale in boiler Rinse aid unsuitable or not being delivered correctly. Water hardness above 12°dF or large amounts of dissolved salts Drain hose incorrectly positioned or partially obstructed. Low rinsing temperature due to thermostop OFF and/or water intake temperature below 50° 29 POSSIBLE REMEDY Check mains water pressure. ...
- Page 30 10 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE USER) The dishwasher is able to identify a number of malfunctions and show them on the display. If the problem persists after the dishwasher has been switched off and back on, proceed as described below: E.1 Boiler temperature probe malfunction E.2 Tank temperature probe malfunction E.3 Water intake malfunction E.4 Boiler overheating. E.5 Tank overheating E.6 Water not pumped out of tank ‐ CWH 510 D Switch the dishwasher off and back on and perform another cycle; if the problem persists call the after‐ sales service. Switch the dishwasher off and back on and perform another cycle; if the problem persists call the after‐ sales service. Water intake not completed in the maximum time allowed Check dynamic pressure in intake system: the water ...
- Page 31 E.7 Boiler heating malfunction (does not heat up) E.8 Tank heating malfunction (does not heat up) E.9 Microprocessor failure ‐ CWH 510 D Switch the dishwasher off and back on and perform another cycle; if the problem persists call the after‐ sales service. Switch the dishwasher off and back on and perform another cycle; if the problem persists call the after‐ sales service. Switch the dishwasher off and back on and perform another cycle; if the problem persists call the after‐ sales service. 31 ...
- Page 32 INFORMATION AND AFTER‐SALES SERVICE FOR SMEG PRODUCTS Our Sales Department staff will be able to provide you with information about prices and special offers. Our After‐Sales Department will be able to provide you with guidance about keeping your appliance functioning correctly and put you in touch with your nearest authorised Service Centre. * Maximum cost 14,26 cent./min. including VAT with no charge on answer from landline. * Maximum cost 48 cent./min. including VAT with maximum charge on answer of 15.49 cents including For further details of costs of calls from cell phones contact your operator. Our whole product offering can be viewed at: International customers, please contact your local SMEG distributor. Via Leonardo da Vinci, 4 ‐ 42016 Guastalla (Reggio Emilia) ‐ CWH 510 D COMMERCIAL DISHWASHERS VAT from cell phone. www.smeg‐ristorazione.com Smeg S.p.A Tel. +39 0522 8211 ‐ Fax + 39 0522 821453 email ristorazione@smeg.it 19.390.2750.00 02/12/2011 Manual Ed. Date 32 ...
