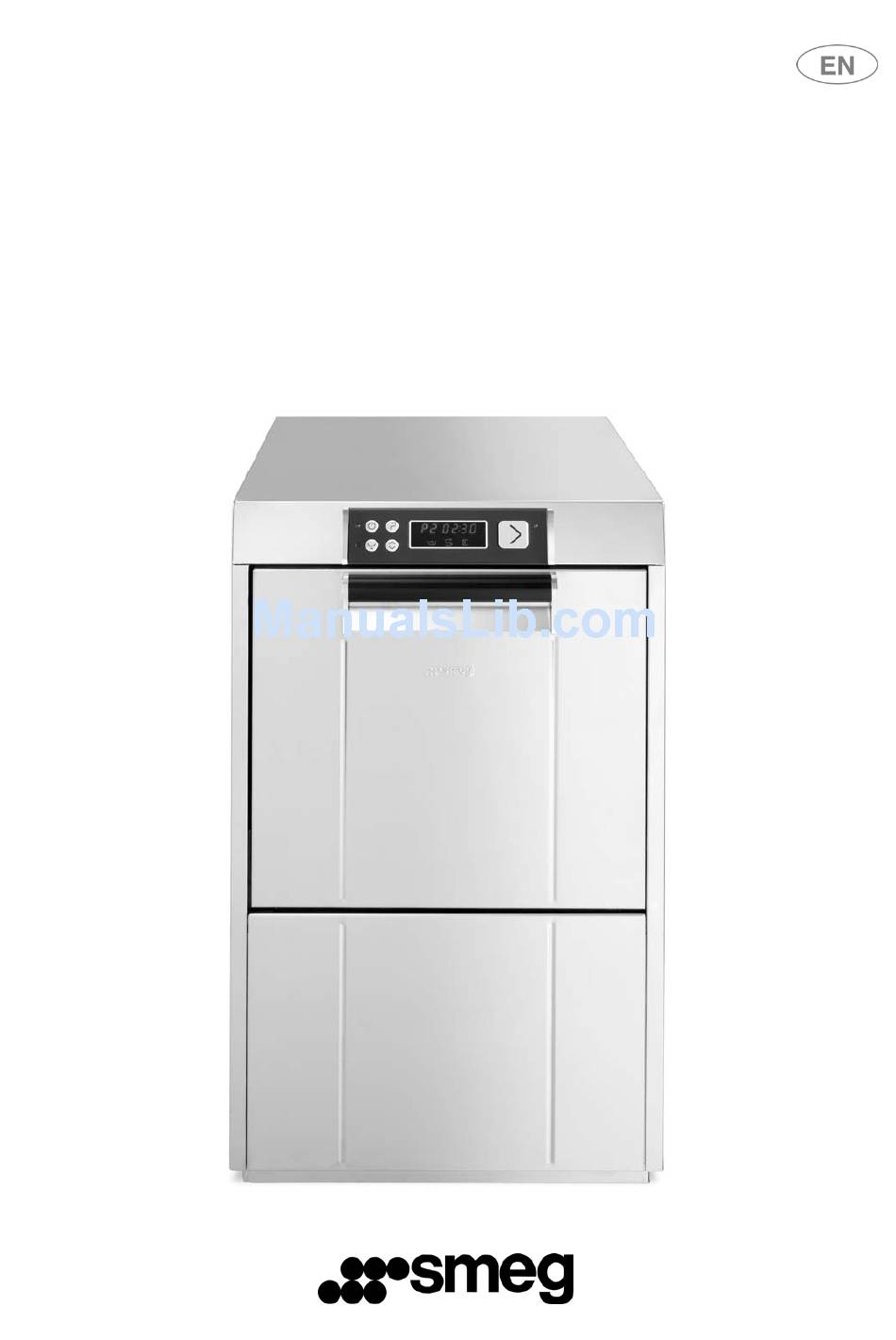

  • Page 1 PROFESSIONAL DISHWASHER...
  • Page 2  ...

  • Page 3: After Sales Service

    1 Precautions for safety and use 4 INSTALLATION INSTRUCTIONS FOR THE 7 Malfunctions shown on the display (for the technician) 8 INSTRUCTIONS FOR THE USER 13 Malfunctions shown on the display (for the user) You are advised to read all the instructions in this manual carefully to become familiar with the right conditions TECHNICAL INSTRUCTIONS: These are intended for the qualified staff who are to install, commission and test the appliance and carry out any servicing and repairs.
  • Page 4 1 Precautions for safety and use THIS MANUAL IS AN INTEGRAL PART OF THE DISHWASHER AND MUST ALWAYS BE KEPT WITH THE APPLIANCE. POSITIONING, REPLACEMENT OF THE POWER SUPPLY CABLE MUST BE CARRIED OUT BY SKILLED STAFF. THE DISHWASHER IS INTENDED ONLY FOR PROFESSIONAL USE BY TRAINED STAFF. IT IS DESIGNED TO WASH TABLEWARE (PLATES, CUPS, BOWLS, OVEN DISHES AND CUTLERY) AND SIMILAR ITEMS IN THE RESTAURANT AND INSTITUTIONAL CATERING SECTOR, AND COMPLIES WITH THE INTERNATIONAL STANDARDS ON ELECTRICAL AND MECHANICAL SAFETY (CEI-EN-IEC 60335-2-...

  • Page 5: Technical Data

    Technical data Supply voltage - convertible to single-phase version Frequency Max. power absorption at 400V 3N ~ Max. power absorption at 230V 1N ~ (double heating) Max. power absorption at 230V 1N ~ (single heating) Boiler heating element power at 400V 3N ~ Boiler heating element power at 230V 1N ~ Tank heating element power Water intake pressure...
  • Page 6 LOWER BACK PANEL FILLER HOSE EARTH TERMINAL ELECTRICITY SUPPLY CABLE PERISTALTIC HOSES DRAIN HOSE EXTERNAL DISPENSER POWER SUPPLY CABLE ENTRY POINT TERMINAL BOARD 4 ...

  • Page 7: Installation And Positioning

    3 Installation and positioning INSTALLATION and POSITIONING Bring the dishwasher to the installation site, remove the packaging and check the appliance and components for damage; any damage found must be reported to the transporter in writing. The packaging components (plastic bags, expanded polystyrene, nails, etc.) must not be left within reach of children and pets since they are potentially dangerous.

  • Page 8: Water Connection

    4 INSTALLATION INSTRUCTIONS FOR THE AFTER-SALES SERVICE 4.1 Water connection Water supply and drain connection: The water pipelines and electricity supply cable lead out of the bottom right-hand corner of the appliance. Connect the water intake hose to a connector with ¾” gas threaded fitting, fitting the filter A provided (in models with aquastop, the filter and ring- nut form a single unit).

  • Page 9: Wiring Diagram

    WIRING DIAGRAM 7 ...

  • Page 10: First Start-Up

    FIRST START-UP The electrical protection system must undergo a functional test before the appliance is put into operation. The appliance must be installed and/or inspected by the qualified staff, who will start it up for the first time and provide the relevant operating instructions. PREPARING FOR USE Important: The rinse aid dispenser is fitted on all models, the detergent dispenser only on some.
  • Page 11 SETTINGS During start-up, the functions/parameters listed below must be set or adjusted: On first installation, a series of operations can be performed to allow the dishwasher to be customised to the user’s needs. A short testing cycle can also be performed to verify operation of all the components. To perform these operations, access “programming mode”...
  • Page 12 Rinse aid pump operating minutes display. Detergent pump operating minutes display. Energy consumption (kW) display The Pc option indicates the total kW consumed since installation of the dishwasher or since the latest reset. Displaying the cycle count When scrolling through the appliance parameters the item count of the cycles the dishwasher has performed since installation, will be found.

  • Page 13: Rinsing Temperature Setup

    6.1.2 Setting up detergent delivery * default value (factory preset) 6.1.3 Rinsing temperature setup 6.1.4 Washing temperature setup Indicator lights as follows: off; 6.1.5 Autostart function Set at “on” to start the cycle when the door is closed. Set at “off” for cycle start after confirmation with the start button Modify the value of the parameter by pressing Modify the value of the parameter by pressing...

  • Page 14: Detergent Pump

    6.1.6 Regeneration frequency setup (models with softener) • Default value: H00; modify the parameter to suit the mains water hardness. • Generally H03 will be satisfactory for most users. • At first use, the salt tank has to be filled. It is subsequently sufficient simply to fill up with regenerating salt when necessary.
  • Page 15 6.1.11 Setting the Model (for After-Sales Service only) 6.2 Starting the peristaltic pumps – rapid filling of detergent and rinse aid delivery circuit. Perform after the parameter modification procedure explained in the previous point. Indicator lights as follows: off; With the dishwasher powered up, access “programming mode” by pressing the on/off button for a few seconds;...

  • Page 16: Instructions For The User

    Boiler temperature probe malfunction Err24 Boiler water filling malfunction Err25 Boiler emptying malfunction Err26 Boiler emptying malfunction – with tank full Err27 Boiler heating malfunction (overheating) Err28 8 INSTRUCTIONS FOR THE USER 8.1 Control panel On-off button Program selection button Start CONFIRM/PAUSE button Total emptying button (tank and boiler) Additional function selection button...

  • Page 17: Before Washing

    Use only detergents and rinse aids for industrial dishwashers. Do not use detergents intended for hand washing. We recommend the use of Smeg products, specially developed for this dishwasher. When topping up the tanks, take care not to swap the products; this might damage the dishwasher and cause malfunctions.

  • Page 18: Program Change

    When the door is closed again, the last program is repeated. 8.4 Program change N.B.: During heating of the water in the boiler, the tank heating element may appear on the display. Filter presence sensor (on some models only) The filter is fitted with a sensor which checks that it is properly fitted; if it is not in the correct position, the word “FiLter”...

  • Page 19: Supplementary Functions

    10 SUPPLEMENTARY FUNCTIONS Indicator lights as follows: off; To select a supplementary function, when the program required is shown on the display (P1, P2, P3 or P4) press the button. Only one supplementary function can be selected for each program. 10.1 Selecting the “glassware”...

  • Page 20: Loading The Dishes

    LOADING THE DISHES Plates The basket is able to take 8 plates. Remove solid residues (bones, fruit peel, stones, etc.) and soak plates with dried residues of cheese, egg, etc. in water before loading in the dishwasher. Glasses: Load glasses upside down. Cutlery: Use the special basket(s).

  • Page 21: Maintenance And Cleaning

    TOTAL PUMP-OUT AT THE END OF THE DAY + Resin regeneration (form models with water softener) From time to time, on models with water softener, before the total pump-out at the end of the day the user will automatically be reminded to carry out the resin regeneration cycle, required after a number of washes which depends on the hardness of the water (about 30 for average setting H03).

  • Page 22: Periodic Checks

    Remove the filters (simply lift them out as shown here), taking care that no large residues fall into the sump underneath. Clean them to remove residues and rinse with plenty of water, then put them correctly back in place; do not use sharp or pointed tools.
  • Page 23 PROBLEM LIGHT S1 DOES NOT COME ON WASHING PROGRAM DOES NOT START POOR WASHING RESULTS INADEQUATE RINSING STAINS GLASSES CUTLERY WATER IN TANK AFTER PUMP- POSSIBLE CAUSE Mains power failure The dishwasher has not yet finished filling. The word CLOSE remains on the display Spray arm washing holes blocked by dirt or limescale...
  • Page 24 13 MALFUNCTIONS SHOWN ON THE DISPLAY The dishwasher is able to identify a number of malfunctions and show them on the display. If the problem persists after the dishwasher has been switched off and back on, proceed as described below: The anti-flooding system has been activated Err01 (for the relevant models only).
