NIVELCO NIPRESS DRD-8 Series User Manual

Thank you for choosing NIVELCO instrument
1. APPLICATION

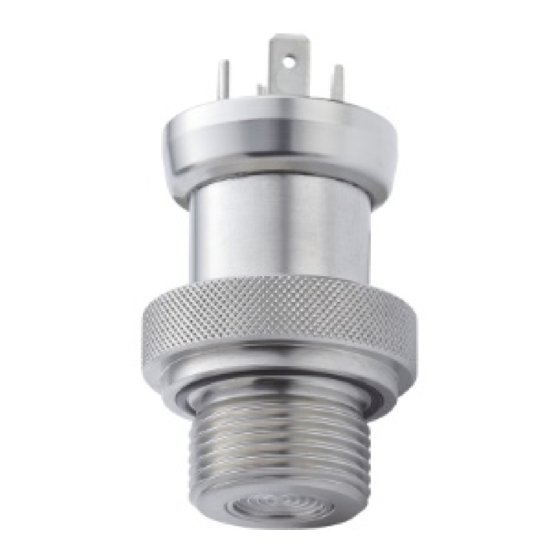

NIPRESS D–800 series pressure transmitters with stainless steel flush sensor measure pressure and convert it
into voltage and current output can be used in either 2- and 3-wire systems. D-800 consists of robust screw-in
pressure transmitters with excellent performance. Its modular construction provides high flexibility to the user.
Transmitters can be delivered with plug-in display UNICONT PLK–501 enabling on-site reading. Ex or SIL
versions are also available.
2. TECHNICAL DATA
2.1 General
T
YPE
Measurement range
Overload capability
Accuracy
Process temperature
Ambient temperature
(1)
Sensor
Materials
Sensor sealing
of the
wetted parts
Process connection
Housing
Output
Supply voltage (U )
(1)
Supply
Load resistance
Process connection
Electrical connection
Ingress protection
Electric protection
Weight
For information of Ex certified devices, see Special data for Ex certified models' chart
(1)
2.2 Special data for Ex certified models (only for 4...20 mA / 2-wire)
Type
Ex marking
Ex reference document number
Ex power supply
Intrinsically safety data
Permissible medium temperature,
atmospheric pressure
Connecting cable
(in case if the device equipped with an
integrated cable)
2.3 Order code
(Not all combinations possible!)
NIPRESS
Measuring Process
Code
method connection
Gauge R ¾" BSP
* Ex versions are marked "Ex" right after the type designation on the label.
Custom measuring range, based on prior negotiations
(1)
p ≥ 0.4 bar (5.8 psi)
(2)
p ≤ 0.4 bar (5.8 psi)
(3)
(4) Ex or SIL versions are available upon special request
Note:
In case of non-standard applications, the sensor type, sealing and housing,
as well as the requirement for filling with food compatible oil has to be
specified in the order!
drd842en23h03 - 1/3
DRD–8–2/ – 6/ –C/ –D
0...40 bar (0...580 psi)
(as per order code)
As per order code
P ≤ 0.4 bar (5.8 psi): 0.5%;
N
P ≥ 0.4 bar (5.8 psi): 0.25%;
N
(as per order code)
–40...+125 °C (–40...+257 °F)
–25...+85 °C (–13...+185 °F)
(with integrated cable: –5...+70 °C [+23...+158 °F])
Stainless steel 1.4435 (316L)
FKM (Viton )
®
Optional: EPDM
Stainless steel 1.4404 (316L)
4...20 mA
standard version: 8...32 V DC,
SIL version: 14...28 V DC,
R = [(U – U ) / 0,02 A], [Ω]
max Supply Supply min.
¾" BSP
ISO 4400, M12x1 (4-pin), integrated cable
IP65 (ISO 4400), IP67 (M12x1), IP68 (integrated cable with ventilation tube)
Class III (SELV)
~0.2 kg (~0.44 lb)
The maximum interior capacity between the power supply connections and the metal housing is 27 nF.
D R D – 8
Range
Code
Overpressure (bar)
D 0...0.1 /
0...0.16 /
0...0.25 /
0...0.4 /
0...0.6 /
0...1 /
0...1.6 /
0...2.5 /
0...4 /
0...6 /
0...10 /
0...16 /
0...25 /
0...40 /
DRD–8–3
0...10 V
14...30 V DC
R = 10 kΩ
min
DRD–8–6 Ex, DRD–8–D Ex
II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T 135°C Da
drd8422a0600h _02
U = 10...28 V DC
supply
U = 28 V DC, I = 93 mA, P = 660 mW, C
imax imax imax
Zone 0: 20...+60 °C ( 4...+140 °F), 0.8 bar ≤ p
– –
Zone 1, 2: 20...+70 °C ( 4...+158 °F)
– –
Cable capacitance: 160 pF/m
Cable inductivity: 1µH/m
– *
/
(1)
Code Accuracy
0.5 1 0.25%
(2)
1 R 0.5%
(3)
1 2
2 3
4
5
5
5
10 6
10 7
8
20
9
40
A
40
80 B
80 C
105 D
2.1 A
CCESSORIES
User's manual
•
Warranty Card
•
EU Declaration of Conformity
•
≈ 0 nF, L ≈ 0 µH
i i
≤ 1.1 bar
atm
Code Output / Certificates
1 4...20 mA, 2-wire
2 0...10 V, 3-wire
4...20 mA, 2-wire / Ex ia
4...20 mA, 2-wire, SIL2
4...20 mA, 2-wire, SIL2 / Ex ia
Code
2
3
6
(4)
C
(4)
D
(4)
