LEGRAND Wattstopper LMDM-601-W Quick Start Manual

No: 27361 – 4/24 rev. 10
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMDM-601
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Once paired to an LMRC-611 wireless room
controller or LMBC-650 wireless bridge,
this unit is set for Plug n' Go operation,
adjustment via the DLM Configuration
App is recommended to meet the local
energy code where installed.

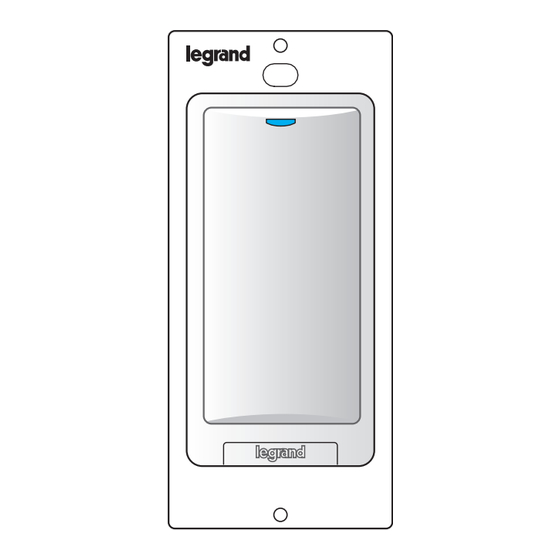

The DLM Wireless 1-Button dimmer switch is a
wireless battery powered wall switch intended for
operation with wireless room controllers.
Do not apply cleaning solvent directly onto unit.
Apply cleaning solvent onto a cloth, then wipe the
unit to clean it.
NOTE: Installation shall be in accordance with all applicable
regulations, local, and NEC codes
INSTALLING THE BUTTON
The LMDM-601-W (White) ships with the button installed. All
other switch colors ship with our quick install button kit. To install:
Frame
Place button into Body, then snap-on frame,
pressing down till tabs click.
INSTALLING THE SWITCH
Pull to remove
battery protection tab
before use
Dimmer Body
Button
Connect ground wire if installing
next to Class 1 power. If not, there
is no need to connect the ground
wire (please comply with local code).
Wattstopper
DLM Wireless Dimming Wall Switch
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
Power Supply .......................... Battery powered, CR123A Lithium Ion, 3 VDC
Connection to DLM Network ............Wireless via LMRC-611 room controllers
...................................................................................... or LMBC-650
Wireless Radio ........................................ Single, Concurrent 802.15.4 and
....................................................Bluetooth Low Energy, 2.4GHz
Wireless Communication
IPv6 Mesh (6LoWPAN) Range ........................................... up to 60 ft.
Bluetooth low energy Range .............................................. up to 30 ft.
60 ft. max. between LMDM-601 and room controller or bridge
Wireless Encryption ..........................................AES-128 bit symmetric key
Environment ............................................................... For Indoor Use Only
Operating Temperature ...............................32° to 104°F (0° to 40°C)
Storage Temperature .................................23° to 140°F (-5° to 60°C)
Relative Humidity .....................................5 to 95% (non condensing)
Compliance/Regulatory
FCC, RoHS,
Bluetooth certified
UL and cUL listed (E101196)
Patent Pending
BUTTONS AND INDICATORS
Status/Battery
Life LED
Rocker Panel
LED Color
White
Green, 1 Blink
Blinking Green
Red, 1 Blink
Blinking Red
Blue
®
SPECIFICATIONS
Tap when load OFF: Turn ON to last level
Tap when load ON: Go to full bright
Press & Hold: Ramp Up
Double Tap: Immediate ON
with no fade
Configuration Button
(behind switch plate)
Tap: Fade to OFF
Press & Hold: Ramp Down
Double Tap: Immediate OFF
with no fade
Function
Unit Boot Up
Config Button Pressed
Push to Pair Mode
In normal operation, if any button
press, indicates low battery
Also blinks if Reset button on back is
pressed
Push n' Learn Mode
Paddle pressed during normal
operation
