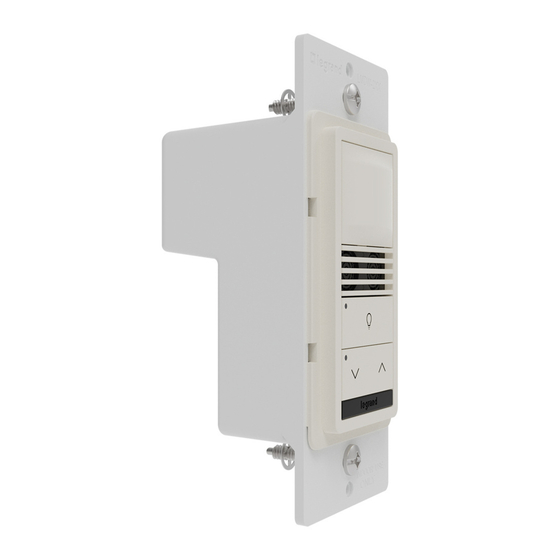

LEGRAND Wattstopper LMDW-211 Quick Start Manual

No: 32730 – 12/23 rev. 1
Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo: LMDW-211, LMDW-220
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Models ending in -U are BAA and TAA compliant (Product produced in the U.S.)
This unit is pre-set for Plug n' Go™ operation, adjustment
is optional.
For full operational details, adjustment and more features of the
product, see the DLM System Installation Guide provided with
Wattstopper room controllers, and also available at www.legrand.us/
wattstopper.
Installation shall be in accordance with all applicable regulations,
local and NEC codes. Wire connections shall be rated suitable for
the wire size (lead and building wiring) employed.
For Class 2 DLM devices and device wiring: To be connected to a
Class 2 power source only. Do not reclassify and install as Class 1, or
Power and Lighting Wiring.
Do not apply cleaning solvent directly onto unit. Apply cleaning solvent
onto a cloth, then wipe the unit to clean it..

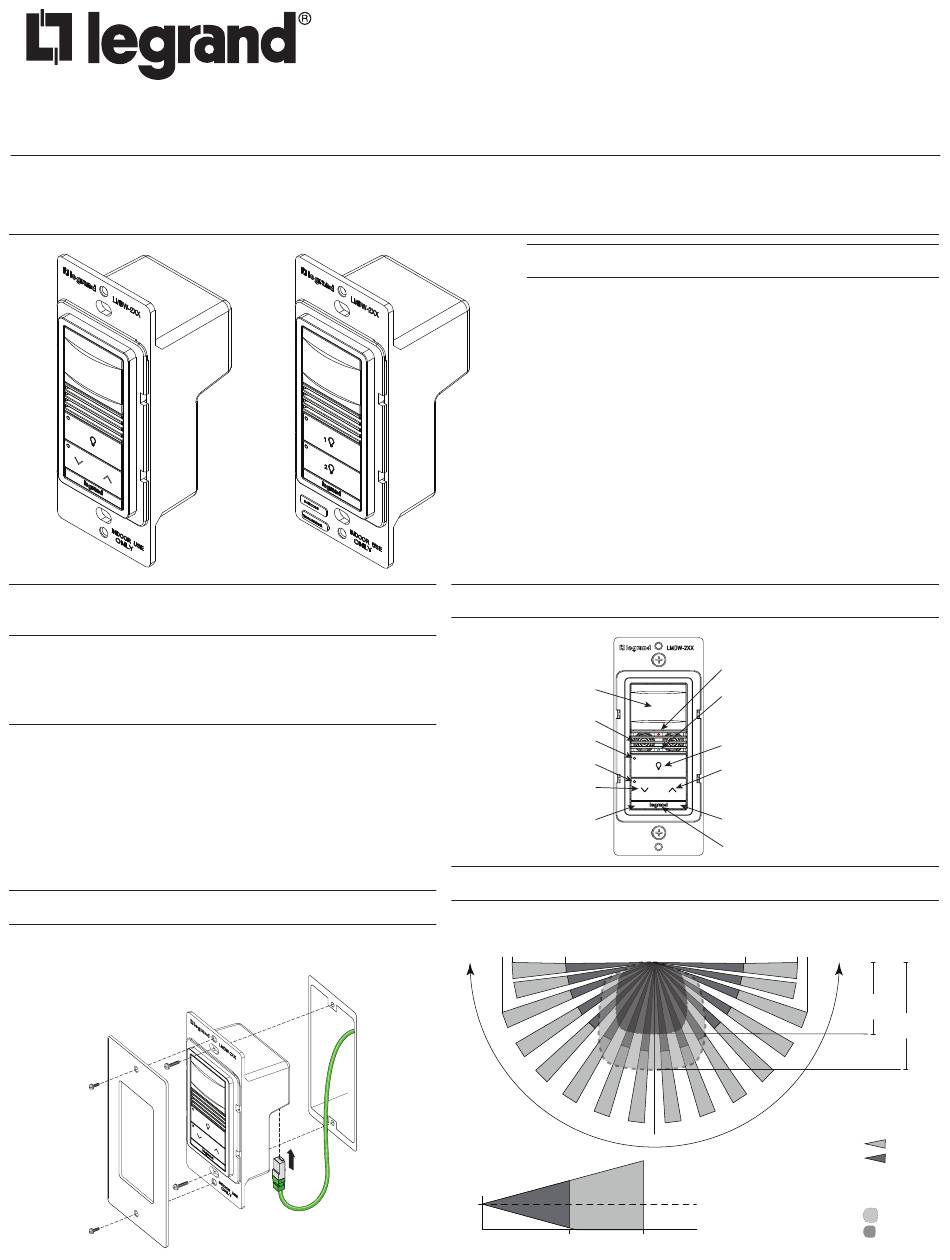

MOUNTING
WARNING: Do Not Install To Cover a Junction Box Having
Class 1, 3 or Power and Lighting Circuits.
Wattstopper
DLM Wired Standard Occupancy Sensor Switches
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
Voltage .............................................................................. 24VDC
Current Consumption ...........................................................20mA
Power Supply ................................. Wattstopper Room Controller
Connection to the DLM Local Network .................... 2 RJ-45 ports
DLM Local Network Characteristics when using LMRC-11x/2xx
room controllers:
Provides low voltage power over Cat 5e cable (LMRJ).
Supports up to 24 communicating devices, including 4
LMRC-10x or LMPL-101 max per each DLM Local Network.
Free topology up to 1,000ft of low voltage cable.
Environment ................................................. For Indoor Use Only
Operating Temperature .................32° to 131°F (0° to 55°C)
Storage Temperature ...................23° to 176°F (-5° to 80°C)
Relative Humidity .......................5 to 95% (non condensing)
Patent Pending
BUTTONS AND INDICATORS
PIR Lens
Ultrasonic Detectors
Status/Config LED
Status LED
Tap: Fade to OFF
Press & Hold: Ramp Down
Sensor Button
COVERAGE PATTERN
Do not obstruct the lens.
40 ft 35 ft 13 ft TOP VIEW
4 ft
SIDE VIEW 13 ft
®
SPECIFICATIONS
PIR Detection LED (Red)
Ultrasonic Detection LED (Blue)
Button(s) can be set to
toggle on/off or to
function as a scene switch
Tap when load OFF: Turn ON to last level
Tap when load ON: Go to full bright
Press & Hold: Ramp Up
Configuration Button
IR Window
NOTE: Plus 10° above horizon.
13 ft 35 ft 40 ft
PIR
Coverage
180°
Major motion
Minor motion
Ultrasonic
Coverage
Major motion
Minor motion
40 ft
20'
(6.1m)
30+'
(9.1m)
