Dlm wireless scene switch with ipv6/bluetooth low energy technology

Advertisement

Quick Links

No: 27360 – 5/19 rev. 3a
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMSW-605
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Once paired to an LMRC-611 wireless
room controller or LMBC-650 wireless
bridge, this unit is set for Plug n' Go™
operation, adjustment via the DLM
Configuration App is recommended
to meet the local energy code where
installed.

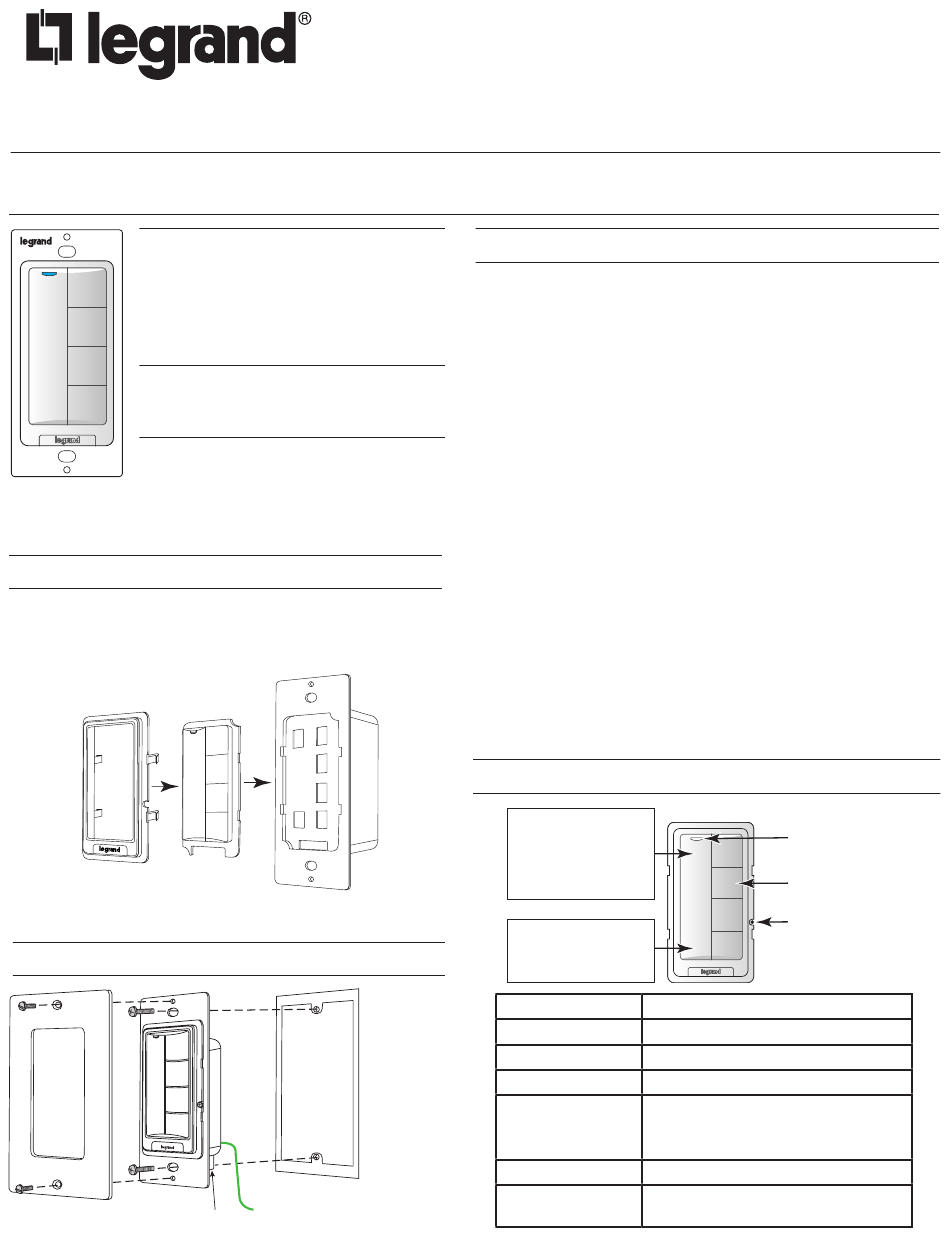

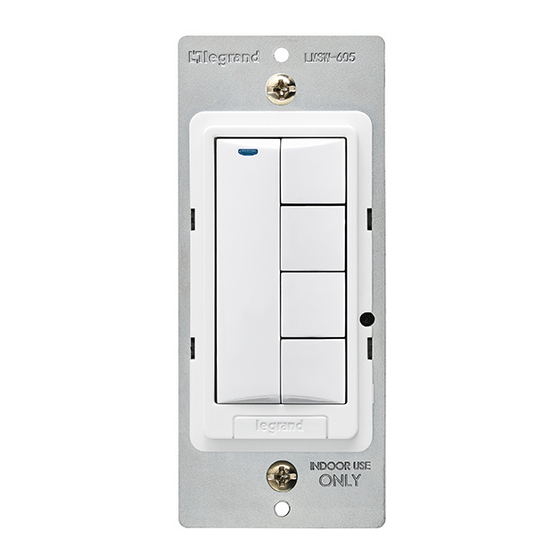

The DLM Wireless 5-Button scene switch is a
wireless battery powered wall switch intended for
operation with wireless room controllers.
Do not apply cleaning solvent directly onto unit.
Apply cleaning solvent onto a cloth, then wipe the
unit to clean it.
NOTE: Installation shall be in accordance with all applicable
regulations, local, and NEC codes
INSTALLING THE BUTTONS
The LMSW-605-W (White) ships with the buttons installed. All
other switch colors ship with our quick install button kit. To install:
Frame
Buttons
Place buttons into Body, then snap-on frame,
pressing down till tabs click.

INSTALLING THE SWITCH

Pull to remove
battery protection tab
before use
Switch Body
Connect ground wire if installing
next to Class 1 power. If not, there
is no need to connect the ground
wire (please comply with local code).
Wattstopper
DLM Wireless Scene Switch with IPv6/Bluetooth
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
Power Supply .......................... Battery powered, CR123A Lithium Ion, 3 VDC
Connection to DLM Network ............Wireless via LMRC-611 room controllers
Wireless Hardware
Radios: ................................................................ Two IEEE 802.15.4
Frequency: ............................................................................. 2.4Ghz
Antennas: ................................ IPv6 Mesh and Bluetooth low energy
Wireless Standards
Radio 1: .........................................................IPv6 Mesh (6LoWPAN)
Range: .......................................................................up to 60 ft.
Radio 2: ............................................................ Bluetooth low energy
Range: .......................................................................up to 30 ft.
Wireless Encryption
AES-128 bit symmetric key, randomly generated per PAN
Shared via secured DTLS only
Environment ............................................................... For Indoor Use Only
Operating Temperature ...............................32° to 104°F (0° to 40°C)
Storage Temperature .................................23° to 140°F (-5° to 60°C)
Relative Humidity .....................................5 to 95% (non condensing)
Compliance/Regulatory
FCC, RoHS,
Bluetooth certified
UL and cUL listed (E101196)
Patent Pending

BUTTONS AND INDICATORS

Tap when load OFF:
Turn ON to last level
Tap when load ON:
Go to full bright
Press & Hold:
Ramp Up
Tap when load ON:
Turn OFF
Press & Hold:
Ramp Down
LED Color
White
Green, 1 Blink
Blinking Green
Red, 1 Blink
Blinking Red
Blue
®
®
Low Energy Technology

SPECIFICATIONS

Status/Battery
Life LED
Scene Button (4)
Configuration Button
(behind switch plate)
Function
Unit Boot Up
Config Button Pressed
Push to Pair Mode
In normal operation, if any button is
pressed, indicates low battery
Also blinks if Reset button is pressed
Push n' Learn Mode
Any button or paddle pressed during
normal operation
