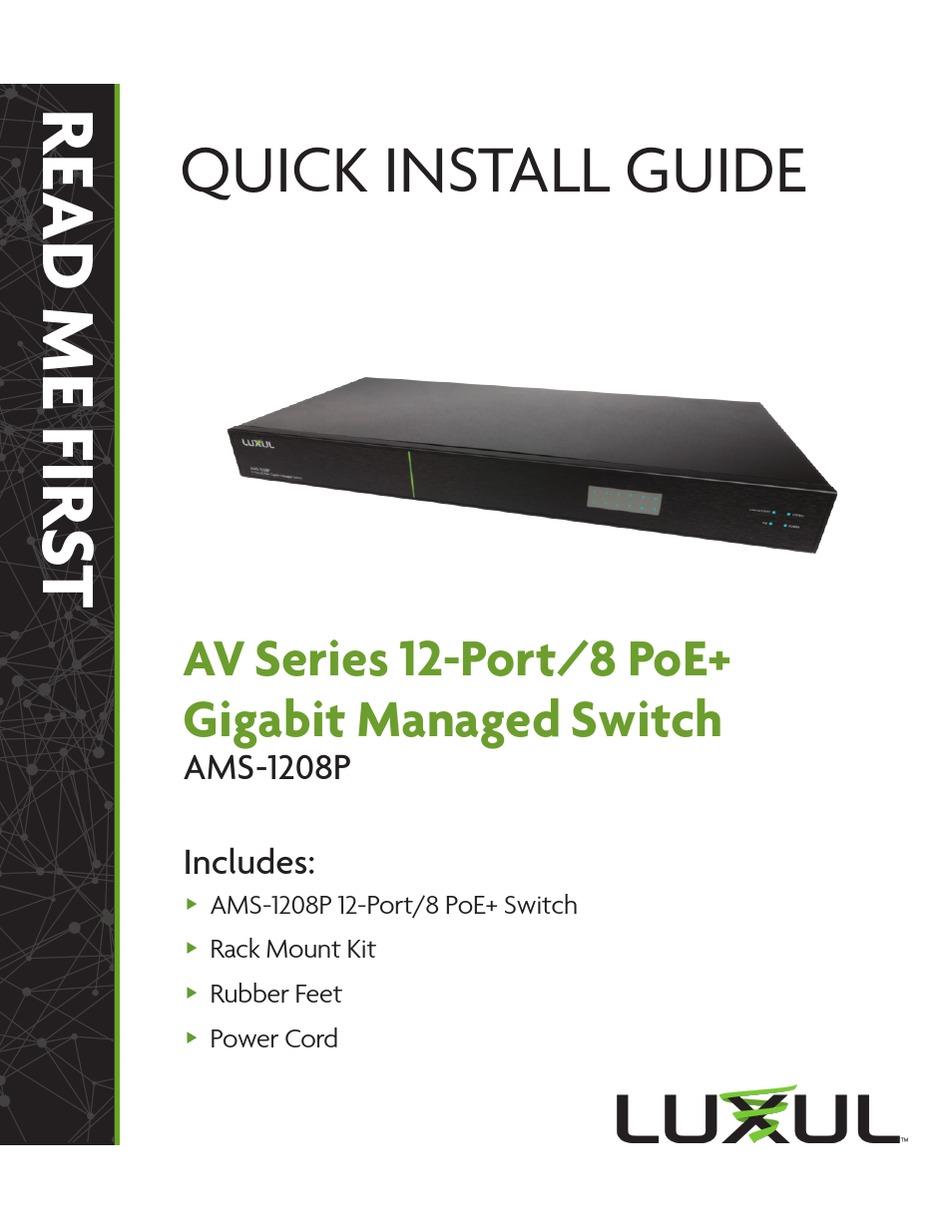

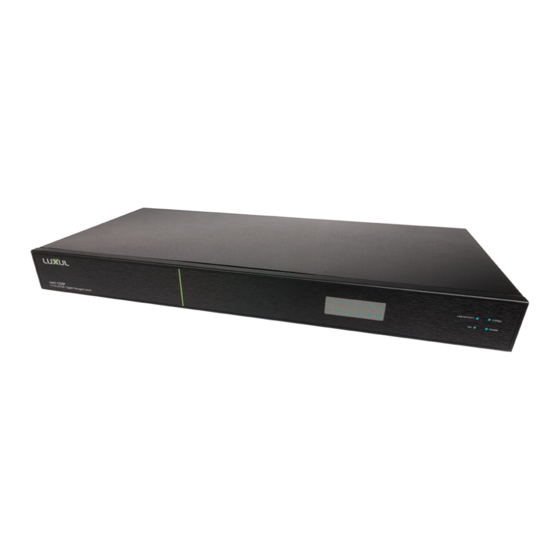

- Page 1 QUICK INSTALL GUIDE AV Series 12-Port/8 PoE+ Gigabit Managed Switch AMS-1208P Includes: AMS-1208P 12-Port/8 PoE+ Switch „ Rack Mount Kit „ Rubber Feet „ Power Cord „...
- Page 2 INSTALLATION AND SETUP Physical Installation The AMS-1208P can easily be installed in a standard 19” rack. Two mounting ears are included for installing and stabilizing the switch. When attaching the mounting ears and installing the switch in a rack, please refer to the following illustration: Rack-Mounting the AMS-1208P Use the included screws to attach the mounting ears to each side „...
- Page 3 The AMS-1208P supports 10/100/1000 Mbps Ethernet; 10/100 Mbps half/ full-duplex mode and 1000 Mbps full-duplex mode. Ports 1-8 are PoE+ and are enabled by default. Ports 9 and 10 are Gigabit Ethernet only (non PoE), while ports 11 and 12 are Gigabit SFP ports. Use the included power cable to connect the AMS-1208P to a surge- protected outlet.
- Page 4 Preparing for Access IP Addressing If the AMS-1208P is connected to a network with a 192.168.0.X address scheme, and your computer shares a similar address on the same network, you can skip to the next step, Access and Setup . Note: If another device on your network shares the 192.168.0.3 address, you’ll need to temporarily reassign or remove that device while you configure the AMS-1208P.
- Page 5 Logging In To access the AMS-1208P web configuration, open your web browser and enter the switch’s default 192.168.0.3 IP address in the address field. Log in to the switch using the default user name and password: Default IP: 192.168.0.3 Username: admin Password: admin Select the menu items on the left to view and/or modify the configuration.
- Page 6 LED Indicators The LED indicators on the AMS-1208P include System, Link/Act and PoE LEDs, and an LED for each port. These LED indicators show the operating status of the AMS-1208P and each port connection. Mode/Reset Button to Change LED Functionality Tapping the Mode/Reset button briefly switches the port indicators between displaying port link speed and PoE status.
- Page 7 Port PoE Green Switch is providing PoE power to a device. Status 1-8 Yellow PoE is off due to a fault or because the connected device is exceeding power limit. Port disconnected or link failed. Note: At startup, the port LEDs will flash briefly during a self-test. Mode/Reset Button to Reset/Restore The Reset button (located at the lower-left corner of the rear panel) is used to reset (reboot) the switch, or to restore the switch to factory...
- Page 8 Sales Technical Support P: 801-822-5450 P: 801-822-5450 Option 3 E: sales@luxul.com E: support@luxul.com Copyright and Trademark Notices No part of this document may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this document is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design.
