TUYA TRV601 Manual

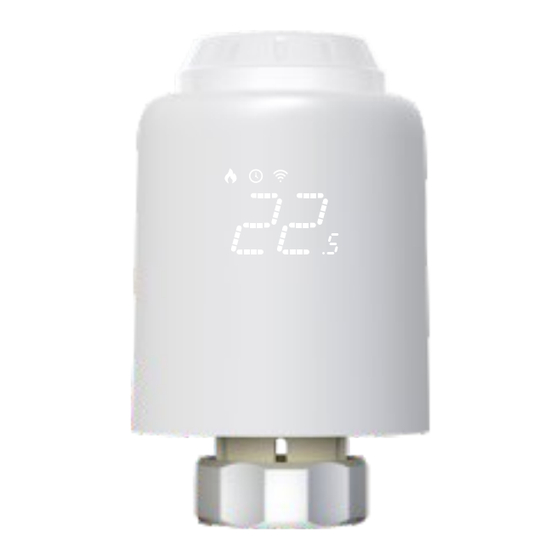

Led zigbee smart thermostatic radiator valve

Hide thumbs

Table Of Contents

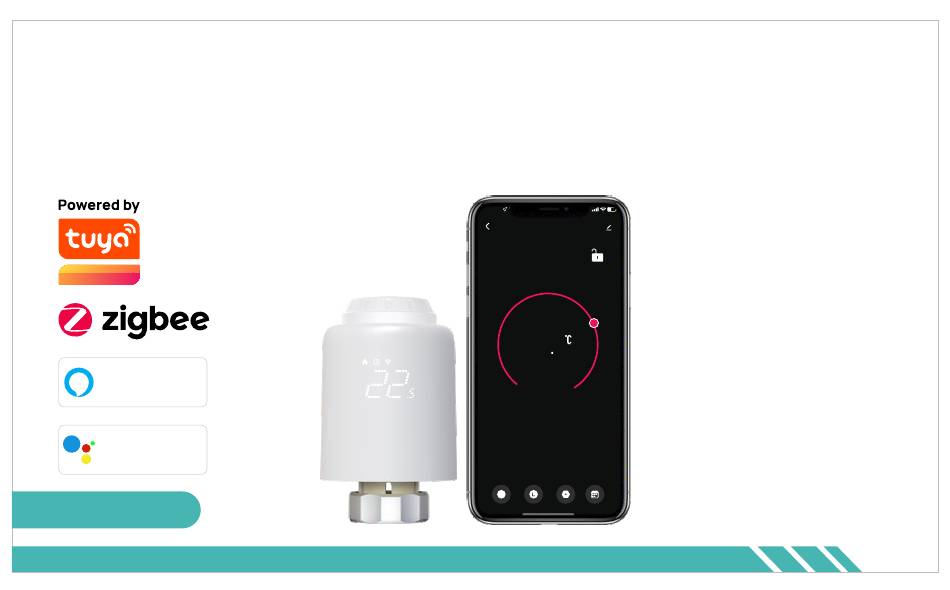

LED ZigBee Smart Thermostatic Radiator Valve

Supporting remote control by smart life app,

voice control by Amazon Alexa and Google Assistant

WORKS WITH

Amazon Alexa

WORKS WITH

Google Assistant

English

16:00

TRV_new

22 5

Current temperature 20.6°C

Mode

Working status

State of the window

Auto

Heating

Auto

Week prog...

Setting

Statistics

Version:1.0(12/2022)

71.04.00204

Table of Contents

Need help?

Do you have a question about the TRV601 and is the answer not in the manual?

Questions and answers

Summary of Contents for TUYA TRV601

Page 1 LED ZigBee Smart Thermostatic Radiator Valve Supporting remote control by smart life app, voice control by Amazon Alexa and Google Assistant 16:00 TRV_new 22 5 Current temperature 20.6°C WORKS WITH Amazon Alexa WORKS WITH Mode Working status State of the window Google Assistant Auto Heating...
Page 2: Product Introduction
Product Introduction English Standard accessories LED ZigBee Smart Thermostatic Radiator Valve Supporting remote control by smart life app, voice control by Amazon Alexa and Google Assistant TRV_new Current temperature 20.6°C WORKS WITH Amazon Alexa WORKS WITH Google Assistant Heating English Version:1.0(12/2022) 71.04.00204 User Manual...
Page 3: Technical Specifications
Product Introduction English Technical speciﬁcations 3 x 1.5 V alkaline AA batteries (not included) Power Supply: 6 μA Min Standby Current: Protection Degree: IP20 Ambient Temperature: 0~50℃ Surface Temperature: 90℃ Max (at the radiator) Connection: M30 x 1.5mm Linear Travel: 4.3 mm Dimensions(W x H x D): 58.4mm x 97mm x 58.4mm...
Page 4 Product Introduction English ①Interface and buttons ② Dimentions 58.4mm Middle button Knob button Network conﬁguration icon Auto Heating Low battery Setting temperature 97mm Set button Battery compartment lock Union nut for heating valve...
Page 5: Installation
Installation English ① Press the battery compartment lock, remove *Attention: the cover, and insert the batteries. While inserting the batteries, please make sure the polarity of battery (+/-) is aligned. ② Initialize, the mandrel ③ When “ ” stop blinking, ④...
Page 6 Installation English How to install the adapter correctly For Danfoss RA valves For Danfoss RAV valves For Danfoss RAVL valves H13mm H4.8mm For Caleﬃ valves For Giacomini valves For M28 valves H11mm H8.6mm...
Page 7: Function Introduction
Function Introduction English Temperature control mode * Attention: Only Manual mode is available when the device is not connected to Press the middle button to switch between Internet. Auto mode and Manual mode. Auto mode When “ ” is displayed on the screen, it is under Auto mode. Auto mode Four time periods and setting temperature could be programmed per day, one week as a cycle, based on customized needs.
Page 8 Function Introduction English Stop heating and pause heating ON: In summer, rotate the knob clockwise until “ ” is displayed under manual mode to stop heating. At this time, the heating valve is fully open. This can extend the use life of valve. OFF: In winter, rotate the knob counterclockwise until “...
Page 9 Function Introduction English Adjust setting temperature: Rotate the Screen rotation: Long press the Set Button knob to adjust setting temperature, for 3 seconds to switch the screen display stepping by 0.5℃. direction.
Page 10 Function Introduction English Open-window function: When “ ” is Anti-scale: TRV executes routine decalciﬁcation displayed on the screen, the open-window every Monday at 12:00 to protect the valve from function is activated. The device can identify calciﬁcation. “ ” will be displayed on the whether the window is open, and when cold screen during decalciﬁcation.
Page 11 Function Introduction English Child lock function: Long press the Restore factory settings: Long press the middle middle button for 3 seconds until “ ” button and insert the battery at the same time until “ ” is displayed on the screen and is displayed on the screen to activate blinking for 3 seconds, the device will be the child lock.
Page 12 Function Introduction English APP remote control and voice control ZigBee Smart Speaker Gateway Wi-Fi Router Cloud server Smartphone...
Page 13: Network Configuration
Network Conﬁguration English Download Smart Life APP 16:00 LogIn Download on the iPhone store China Please enter your account Password LogIn Forgot Password Scan the QR code above or search “Smart Life” on App Store and Google Play to download the Smart Life APP.
Page 14: Add Gateway
Network Conﬁguration English *Attention: Please turn on the Bluetooth of your mobile phone before adding a Add gateway gateway. And ensure that the smartphone OS allows the Smartlife APP to access the Bluetooth function. ① After the gateway is powered on, the ②...
Page 15: Add Device
Network Conﬁguration English Add device ① Under manual mode, rotate the knob ② In the APP gateway interface, select “Zigbee device list ", click “ Add Device ", wait for several counterclockwise until “ ” is displayed. seconds to search, the system will automatically Then long press the middle button for search and add devices, and then click “...
Page 16: App Features
APP Features English Mode selection *Attention: Click “ ” or “ ” to Click “ ” to select mode. adjust the setting temperature. Auto mode: Four time periods and 16:00 16:00 setting temp. could be programmed TRV_new TRV_new per day, one week as a cycle, based on customized needs.
Page 17: Weekly Programming
APP Features English Weekly programming ① Click “ ” to enter the ② Set four time periods and setting temperature Weekly programming page. based on customized needs. 16:00 16:00 16:00 Weekly-programming weekly-programming TRV_new Click to switch the date, long press to copy the current Click to switch the date, long press to copy the current setting setting...
Page 18 APP Features English Setting Click “ ” to enter the advanced setting page. 16:00 16:00 TRV_new Setting Valve Win state Temp Calib Battery 0.0% 关闭 -1.0℃ 100% Window check switch Window check Child lock switch Child lock Set temperature ceiling 26 5 Set temperature ceiling 30.0...
Page 19 APP Features English Statistics Click “ ” to enter the Temperature Statistics. 16:00 16:00 TRV_new Statistics Temperature statistics Month Year Temperature statistics Current temperature Setting temperature 00:00 08:00 16:00 26 5 Time 2022/01/19 Current temperature 26.6°C Valve Open Degree Valve Open Degree 00:00 08:00 16:00...
Page 20 APP Features English Device sharing function * Example of mobile Phone A sharing mobile Phone B Share the device to other family members, allowing them to remotely control the TRV device. 16:00 16:00 16:00 16:00 Help Add Member TRV_new Love Cause of Sharing Failure Name Please enter a home member na...
Page 21: Voice Control
APP Features English Voice control After waking up the speaker, you can say: Amazon Alexa : Alexa， Google Assistant : OK google, * Set the DEVICENAME to 26 degree. * Set the DEVICENAME to 23 degree. * Set the DEVICENAME temperature to 25. * Drop the DEVICENAME by 1 degree.
Page 22: Error Code
Error code English Troubleshooting and maintenance Error code Problem Solution Temperature sensor abnormality Contact after-sales staﬀ Check the installation and heating valve Slow valve operation Check the fastening of TRV The stroke is too long Check the heating valve The stroke is too short Running out of battery Replace batteries immediately Valve not detected...
