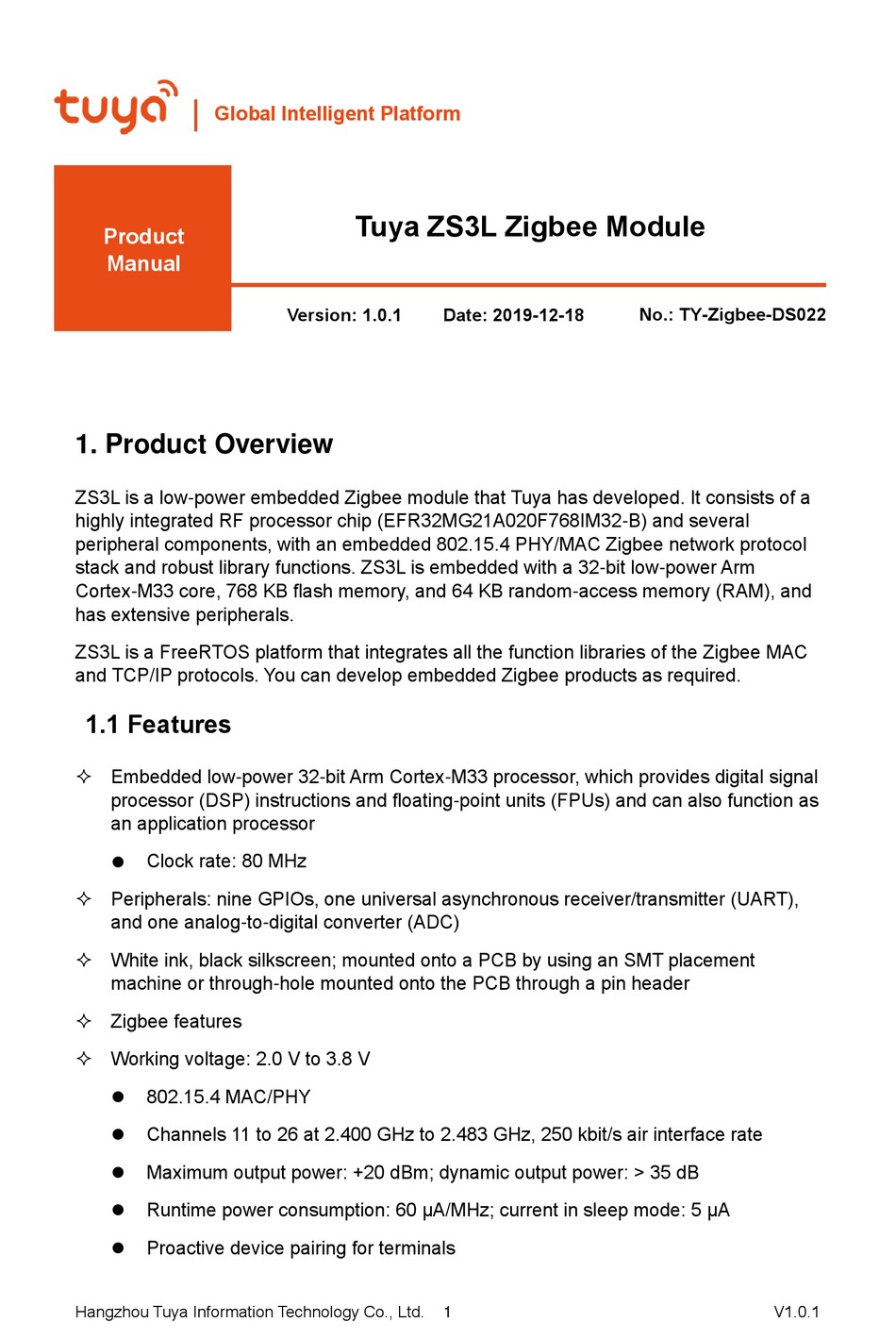

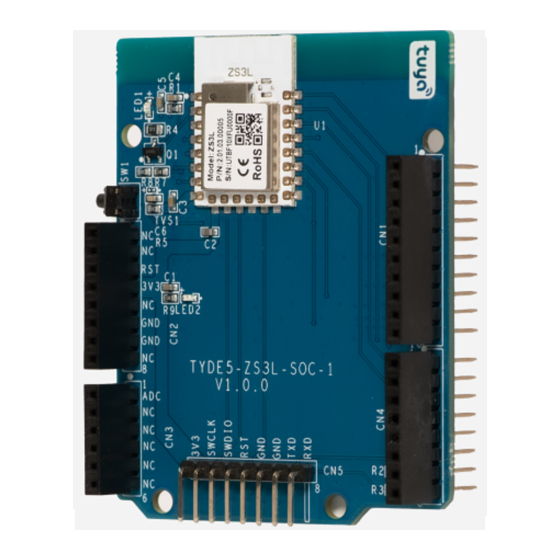

1. Product Overview

ZS3L is a low-power embedded Zigbee module that Tuya has developed. It consists of a
highly integrated RF processor chip (EFR32MG21A020F768IM32-B) and several
peripheral components, with an embedded 802.15.4 PHY/MAC Zigbee network protocol
stack and robust library functions. ZS3L is embedded with a 32-bit low-power Arm
Cortex-M33 core, 768 KB flash memory, and 64 KB random-access memory (RAM), and
has extensive peripherals.
ZS3L is a FreeRTOS platform that integrates all the function libraries of the Zigbee MAC
and TCP/IP protocols. You can develop embedded Zigbee products as required.

1.1 Features

 Embedded low-power 32-bit Arm Cortex-M33 processor, which provides digital signal
processor (DSP) instructions and floating-point units (FPUs) and can also function as
an application processor
Clock rate: 80 MHz
⚫
 Peripherals: nine GPIOs, one universal asynchronous receiver/transmitter (UART),
and one analog-to-digital converter (ADC)
 White ink, black silkscreen; mounted onto a PCB by using an SMT placement
machine or through-hole mounted onto the PCB through a pin header
 Zigbee features
 Working voltage: 2.0 V to 3.8 V
802.15.4 MAC/PHY
⚫
⚫
Channels 11 to 26 at 2.400 GHz to 2.483 GHz, 250 kbit/s air interface rate
⚫
Maximum output power: +20 dBm; dynamic output power: > 35 dB
⚫
Runtime power consumption: 60 µA/MHz; current in sleep mode: 5 µA
⚫
Proactive device pairing for terminals
Hangzhou Tuya Information Technology Co., Ltd.
Tuya ZS3L Zigbee Module
Date: 2019-12-18
Version: 1.0.1
1
No.: TY-Zigbee-DS022
V1.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZS3L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TUYA ZS3L

Summary of Contents for TUYA ZS3L

  • Page 1: Product Overview

    No.: TY-Zigbee-DS022 Version: 1.0.1 1. Product Overview ZS3L is a low-power embedded Zigbee module that Tuya has developed. It consists of a highly integrated RF processor chip (EFR32MG21A020F768IM32-B) and several peripheral components, with an embedded 802.15.4 PHY/MAC Zigbee network protocol stack and robust library functions.

  • Page 2: Application Scenarios

    AES-128 or AES-256 hardware encryption 1.2 Application Scenarios  Intelligent building  Smart household and home appliances  Smart socket and light  Industrial wireless control  Baby monitor  Network camera  Intelligent bus Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...
  • Page 3 ZS3L Datasheet Change History Date Change Description Version After Change 2019-12-10 This is the first release. 1.0.0 2019-12-18 Updated pin 3 description and antenna gain. 1.0.1 Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...

  • Page 4: Table Of Contents

    6.2 Recommended PCB Layout ................. 14 6.3 Production Instructions ..................15 6.4 Recommended Oven Temperature Curve ............16 6.5 Storage Conditions ....................18 7. MOQ and Packing Information ..................19 8. Appendix: Statement ...................... 20 Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...
  • Page 5 Figure 6-2 Side view ......................13 Figure 6-3 ZS3L pins......................14 Figure 6-4 ZS3L pin header dimensions ................14 Figure 6-5 Layout of the PCB to which ZS3L applies ............. 15 Figure 6-6 HIC for ZS3L ...................... 16 Figure 6-7 Oven temperature curve .................. 17 Hangzhou Tuya Information Technology Co., Ltd.

  • Page 6: Module Interfaces

    2.1 Dimensions and Footprint ZS3L has two rows of pins with a 2±0.1 mm pin spacing. The ZS3L dimensions (H x W x D) are 2.8±0.15 mm x 24±0.35 mm x 16±0.35 mm. Figure 2-1 shows the ZS3L front and rear views.

  • Page 7: Test Pin Definition

    Input internal IC Note: P indicates a power supply pin, and I/O indicates an input/output pin. 2.3 Test Pin Definition Table 2-2 ZS3L test pins Pin No. Symbol I/O Type Function Power supply pin (typical power supply voltage: 3.3 V)
  • Page 8 ZS3L Datasheet Pin No. Symbol I/O Type Function GND2 Power supply reference ground pin Note: Test pins are not recommended. Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...

  • Page 9: Electrical Parameters

    VBAT Power supply voltage I/O low-level –0.3 VCC x 0.25 input I/O high-level VCC x input 0.75 I/O low-level VCC x 0.1 output I/O high-level VCC x output Imax I/O drive current Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...

  • Page 10: Rf Current Consumption

    Value) The module is in EZ mode. Connected and The module is connected to the idle network. Deep sleep The module is in deep sleep μA mode mode, with 64 KB flash memory. Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...

  • Page 11: Rf Features

    Frequency error –15 4.3 RX Performance Table 4-3 RX sensitivity Minimum Average Maximum Value Parameter Unit Value Value (Typical Value) PER < 10%, 802.11n 250 kbit/s –102 –101 –99 OFDM mode Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...

  • Page 12: Antenna Information

    ZS3L Datasheet 5. Antenna Information 5.1 Antenna Type ZS3L uses an onboard PCB antenna 5.2 Antenna Interference Reduction To ensure optimal Zigbee performance when the Zigbee module uses an onboard PCB antenna, it is recommended that the antenna be at least 5 mm away from other metal parts.

  • Page 13: Packaging Information And Production Instructions

    6. Packaging Information and Production Instructions 6.1 Mechanical Dimensions The PCB dimensions (H x W x D) are 2.8±0.15 mm x 24±0.35 mm x 16±0.35 mm. Figure 6-1 ZS3L mechanical dimensions Figure 6-2 Side view Hangzhou Tuya Information Technology Co., Ltd.

  • Page 14: Recommended Pcb Layout

    ZS3L Datasheet 6.2 Recommended PCB Layout Figure 6-3 ZS3L pins ZS3L can be mounted onto a PCB by using an SMT placement machine or through-hole mounted onto the PCB through a pin header. Figure 6-4 shows the pin header dimensions.

  • Page 15: Production Instructions

    Figure 6-5 Layout of the PCB to which ZS3L applies 6.3 Production Instructions 1. Use an SMT placement machine to mount the stamp hole module that Tuya produces onto the PCB within 24 hours after the module is unpacked and the firmware is burned.

  • Page 16: Recommended Oven Temperature Curve

    Tuya is not liable for such problems and consequences. 6. Before SMT placement, take electrostatic discharge (ESD) protective measures.

  • Page 17: Figure 6-7 Oven Temperature Curve

    ZS3L Datasheet highest temperature is 245°C. Figure 6-7 Oven temperature curve Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...

  • Page 18: Storage Conditions

    ZS3L Datasheet 6.5 Storage Conditions Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...

  • Page 19: Moq And Packing Information

    7. MOQ and Packing Information MOQ and packing information Product Number of Modules Number of Reel Packing Method Model in Each Reel Pack Packs in Each Box Carrier tape and ZS3L 4000 1000 reel packing Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...

  • Page 20: Appendix: Statement

    The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. The end user manual shall include all required regulatory information/warning as shown in Hangzhou Tuya Information Technology Co., Ltd. V1.0.1...
  • Page 21 This product must be installed and operated with a minimum distance of 20 cm between the radiator and user body. This device have got a FCC ID：2ANDL-ZS3L.The final end product must be labeled in a visible area with the following: “Contains Transmitter Module FCC ID:2ANDL-ZS3L”...
