Global Intelligent Platform
Product
Manual

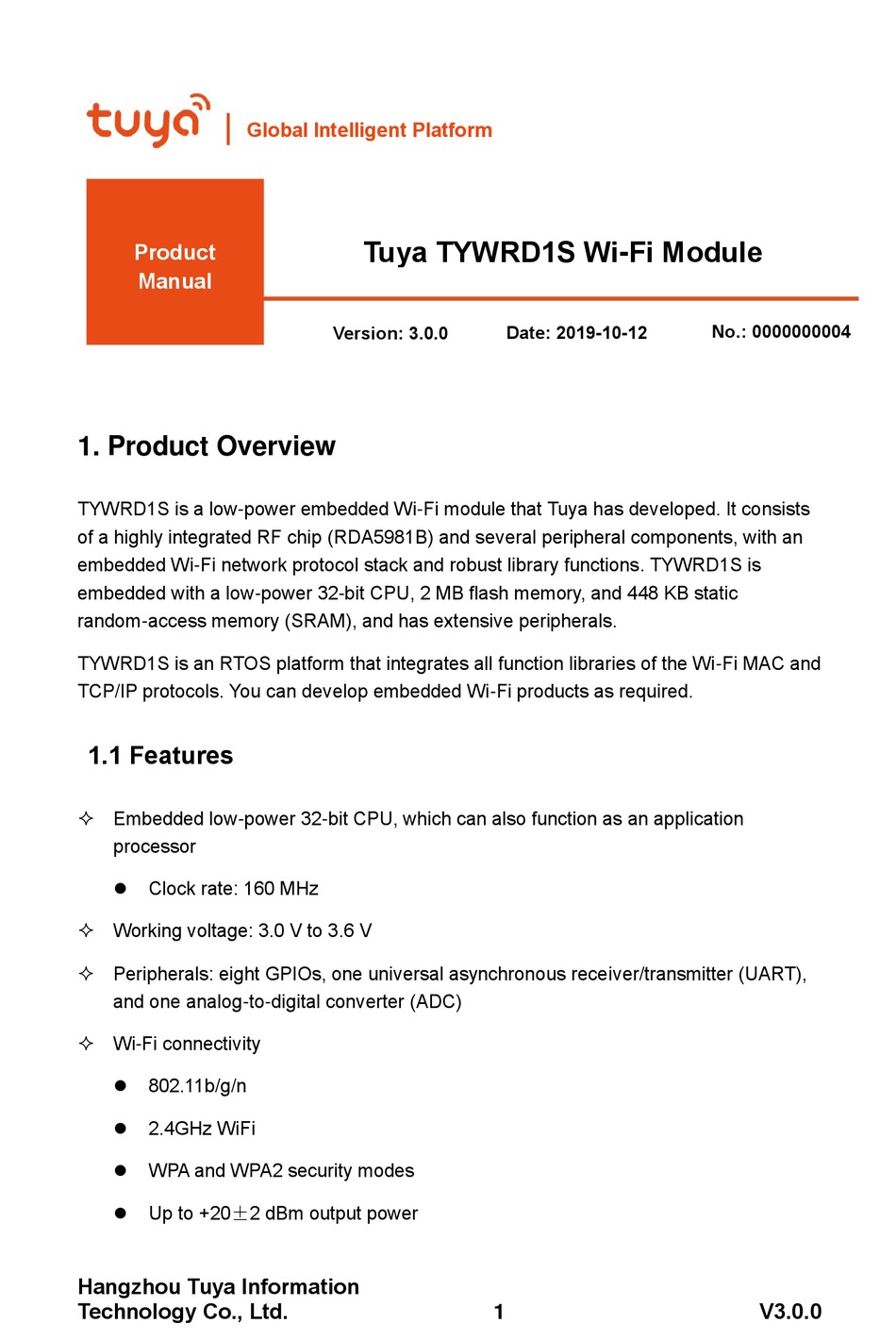

1. Product Overview
TYWRD1S is a low-power embedded Wi-Fi module that Tuya has developed. It consists
of a highly integrated RF chip (RDA5981B) and several peripheral components, with an
embedded Wi-Fi network protocol stack and robust library functions. TYWRD1S is
embedded with a low-power 32-bit CPU, 2 MB flash memory, and 448 KB static
random-access memory (SRAM), and has extensive peripherals.
TYWRD1S is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and
TCP/IP protocols. You can develop embedded Wi-Fi products as required.
1.1 Features
Embedded low-power 32-bit CPU, which can also function as an application
processor
⚫
Clock rate: 160 MHz
Working voltage: 3.0 V to 3.6 V
Peripherals: eight GPIOs, one universal asynchronous receiver/transmitter (UART),
and one analog-to-digital converter (ADC)
Wi-Fi connectivity
⚫
802.11b/g/n
⚫
2.4GHz WiFi
⚫
WPA and WPA2 security modes
⚫
Up to +20±2 dBm output power
Hangzhou Tuya Information
Technology Co., Ltd.
Tuya TYWRD1S Wi-Fi Module
Version: 3.0.0
1
Date: 2019-10-12
No.: 0000000004
V3.0.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TUYA TYWRD1S
Summary of Contents for TUYA TYWRD1S
-
Page 1: Product Overview
32-bit CPU, 2 MB flash memory, and 448 KB static random-access memory (SRAM), and has extensive peripherals. TYWRD1S is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and TCP/IP protocols. You can develop embedded Wi-Fi products as required. -
Page 2: Applications
TYWRD1S Datasheet ⚫ STA, AP, and STA+AP working modes ⚫ Smart and AP network configuration modes for Android and iOS devices ⚫ Onboard PCB antenna with a gain of 1.0 dBi Working temperature: –20°C to +85°C ⚫ 1.2 Applications ... - Page 3 TYWRD1S Datasheet Change History Date Change Description Version After Change 2019-06-20 This is the first release. 1.0.0 2019-07-26 Revised the document. 2.0.0 2019-10-12 Revised the document. 3.0.0 Hangzhou Tuya Information Technology Co., Ltd. V3.0.0...
-
Page 4: Table Of Contents
TYWRD1S Datasheet Contents 1. Product Overview ......................1 1.1 Features ......................... 1 1.2 Applications ......................2 2 Module Interfaces ......................6 2.1 Dimensions and Footprint ..................6 2.2 Interface Pin Definition ................... 6 2.3 Test Pin Definition ....................8 3. Electrical Parameters ....................... 8 3.1 Absolute Electrical Parameters ................ - Page 5 Figure 6-1 TYWRD1S mechanical dimensions ..............14 Figure 6-2 Side view ......................14 Figure 6-3 TYWRD1S pins ....................15 Figure 6-4 Layout of the PCB to which TYWRD1S applies ..........16 Figure 6-5 HIC for TYWRD1S ................... 17 Figure 6-6 Oven temperature curve .................. 18 Hangzhou Tuya Information Technology Co., Ltd.
-
Page 6: Module Interfaces
2.1 Dimensions and Footprint TYWRD1S has two rows of pins with a 1.5±0.1 mm pin spacing. The TYWRD1S dimensions (H x W x D) are 3.3±0.1 mm x 18±0.35 mm x 23.5±0.35 mm. Figure 1-1 shows the TYWRD1S dimensions. Figure 2-1 TYWRD1S dimensions 2.2 Interface Pin Definition... - Page 7 TYWRD1S Datasheet Pin No. Symbol I/O Type Function circuit (3.3 V or 5 V) UART-TX I/O UART0_TXD (See the following Note 3.) UART-RX I/O UART0_RXD (See the following Note 3.) 3.3 V Power supply pin (3.3 V) Power supply reference ground pin...
-
Page 8: Test Pin Definition
0 V to 1.0 V. UART0 is a user-side serial interface, which generates information when the module is powered on and starts. 2.3 Test Pin Definition Table 2-2 TYWRD1S test pins Pin No. Symbol I/O Type Function... -
Page 9: Electrical Conditions
TYWRD1S Datasheet Parameter Description Minimum Maximum Unit Value Value Tamb = 25°C Static electricity voltage (machine model) 3.2 Electrical Conditions Table 3-2 Normal electrical conditions Parameter Description Unit Minimum Typical Maximum Value Value Value Working –20 °C temperature VBAT Power supply... -
Page 10: Working Current
TYWRD1S Datasheet 3.3 Working Current Table 3-4 TYWRD1S working current Working Working Status (Ta = 25°C) Average Unit Mode Value The module is in EZ mode, and the Wi-Fi indicator blinks quickly. The module is in AP mode, and the Wi-Fi indicator blinks slowly. -
Page 11: Rf Features
TYWRD1S Datasheet 4 RF Features 4.1 Basic RF Features Table 4-1 Basic RF features Parameter Description Frequency band 2.4GHz Wi-Fi standard IEEE 802.11b/g/n 802.11b: 1, 2, 5.5, or 11 (Mbit/s) Data transmission rate 802.11g: 6, 9, 12, 18, 24, 36, 48, or 54 (Mbit/s) 802.11n: HT20 MCS0 to MCS7... -
Page 12: Rx Performance
To prevent adverse impact on the antenna radiation performance, avoid copper or traces along the antenna area on the PCB. For details about the onboard PCB antenna area on TYWRD1S, see Figure 6-1. 5.3 Antenna Connector Specifications Figure 5-1 shows the U.FL RF connector parameters. -
Page 13: Packaging Information And Production Instructions
TYWRD1S Datasheet Figure 5-1 U.FL RF connector parameters 6 Packaging Information and Production Instructions 6.1 Mechanical Dimensions The PCB dimensions (H x W x D) are 0.8±0.1 mm x 18±0.35 mm x 23.5±0.35 mm. Hangzhou Tuya Information Technology Co., Ltd. -
Page 14: Figure 6-1 Tywrd1S Mechanical Dimensions
TYWRD1S Datasheet Figure 6-1 TYWRD1S mechanical dimensions Figure 6-2 Side view Hangzhou Tuya Information Technology Co., Ltd. V3.0.0... -
Page 15: Recommended Pcb Layout
TYWRD1S Datasheet 6.2 Recommended PCB Layout Figure 6-3 TYWRD1S pins Hangzhou Tuya Information Technology Co., Ltd. V3.0.0... -
Page 16: Production Instructions
Figure 6-4 Layout of the PCB to which TYWRD1S applies 6.3 Production Instructions Use an SMT placement machine to mount the stamp hole module that Tuya produces onto the PCB within 24 hours after the module is unpacked and the firmware is burned. -
Page 17: Figure 6-5 Hic For Tywrd1S
(2) The shelf life of a dry-packaged product is six months from the date when the product is packaged and sealed. (3) The package contains a humidity indicator card (HIC). Figure 6-5 HIC for TYWRD1S Bake a module based on HIC status as follows when you unpack the module package: (1) If the 30%, 40%, and 50% circles are blue, bake the module for 2 consecutive hours. -
Page 18: Recommended Oven Temperature Curve
Electroless nickel immersion gold (ENIG) is used for the PCBs. If the solder pads are exposed to the air for over three months, they will be oxidized severely and dry joints or solder skips may occur. Tuya is not liable for such problems and consequences. Before SMT placement, take electrostatic discharge (ESD) protective measures. -
Page 19: Storage Conditions
TYWRD1S Datasheet 6.5 Storage Conditions Hangzhou Tuya Information Technology Co., Ltd. V3.0.0... -
Page 20: Moq And Packing Information
TYWRD1S Datasheet 7 MOQ and Packing Information MOQ and packing information Product Number of Modules in Number of Reel Packing Method Model Each Reel Pack Packs in Each Box Carrier tape and TYWRD1S 4000 1000 reel packing Hangzhou Tuya Information Technology Co., Ltd. -
Page 21: Appendix: Statement
TYWRD1S Datasheet 8 Appendix: Statement Federal Communications Commission (FCC) Declaration of Conformity FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. - Page 22 Declaration of Conformity European notice Hereby, Hangzhou Tuya Information Technology Co., Ltd. declares that this Wi-Fi module product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EC. A copy of the Declaration of conformity can be found at https://www.tuya.com.
