Global Intelligent Platform
Product
Manual

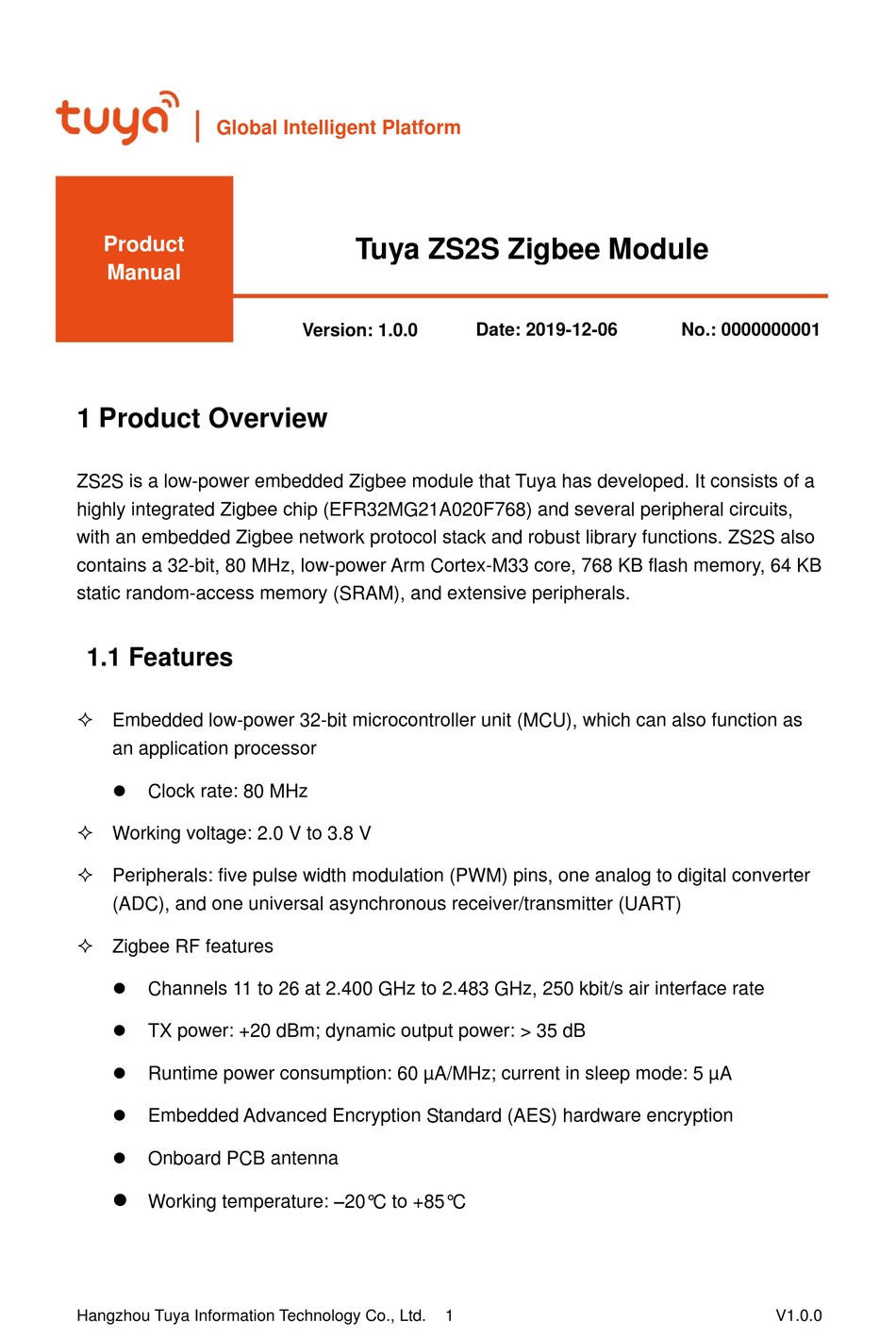

1 Product Overview

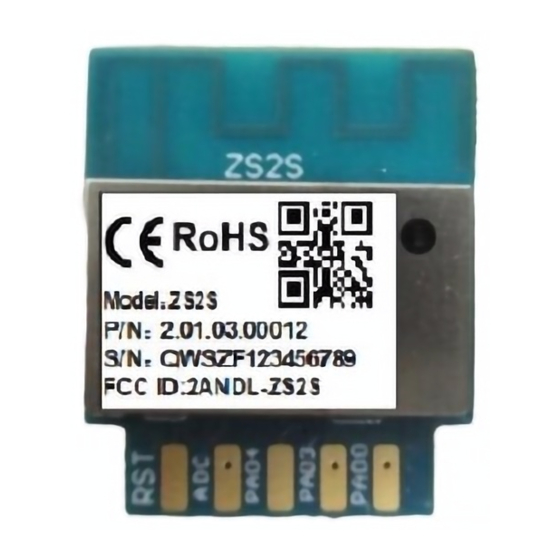

ZS2S is a low-power embedded Zigbee module that Tuya has developed. It consists of a
highly integrated Zigbee chip (EFR32MG21A020F768) and several peripheral circuits,
with an embedded Zigbee network protocol stack and robust library functions. ZS2S also
contains a 32-bit, 80 MHz, low-power Arm Cortex-M33 core, 768 KB flash memory, 64 KB
static random-access memory (SRAM), and extensive peripherals.
1.1 Features
Embedded low-power 32-bit microcontroller unit (MCU), which can also function as
an application processor
Clock rate: 80 MHz
Working voltage: 2.0 V to 3.8 V
Peripherals: five pulse width modulation (PWM) pins, one analog to digital converter
(ADC), and one universal asynchronous receiver/transmitter (UART)
Zigbee RF features
Channels 11 to 26 at 2.400 GHz to 2.483 GHz, 250 kbit/s air interface rate
TX power: +20 dBm; dynamic output power: > 35 dB
Runtime power consumption: 60 µA/MHz; current in sleep mode: 5 µA
Embedded Advanced Encryption Standard (AES) hardware encryption
Onboard PCB antenna
Working temperature: –20° C to +85° C
Hangzhou Tuya Information Technology Co., Ltd.
Tuya ZS2S Zigbee Module
Version: 1.0.0
1
Date: 2019-12-06
No.: 0000000001
V1.0.0
Advertisement
Table of Contents
Related Manuals for TUYA ZS2S
Summary of Contents for TUYA ZS2S
-
Page 1: Product Overview
Version: 1.0.0 1 Product Overview ZS2S is a low-power embedded Zigbee module that Tuya has developed. It consists of a highly integrated Zigbee chip (EFR32MG21A020F768) and several peripheral circuits, with an embedded Zigbee network protocol stack and robust library functions. ZS2S also contains a 32-bit, 80 MHz, low-power Arm Cortex-M33 core, 768 KB flash memory, 64 KB static random-access memory (SRAM), and extensive peripherals. -
Page 2: Application Scenarios
1.2 Application Scenarios Intelligent building Smart household and home appliances Smart low-power sensors Smart socket and light Asset tracing Industrial wireless control Hangzhou Tuya Information Technology Co., Ltd. V1.0.0... -
Page 3: Change History
Change History Date Change Description Version After Change 2019-12-06 This is the first release. 1.0.0 Hangzhou Tuya Information Technology Co., Ltd. V1.0.0... -
Page 4: Table Of Contents
6.1 Mechanical Dimensions and Rear Solder Pad Dimensions ....... 12 6.2 Production Instructions ..................12 6.3 Recommended Oven Temperature Curve ............14 6.4 Storage Conditions ..................... 15 7 MOQ and Packing Information ..................16 8 Appendix: Statement ....................16 Hangzhou Tuya Information Technology Co., Ltd. V1.0.0... - Page 5 Figures Figure 2-1 ZS2S front and rear views ................ 6 Figure 6-1 ZS2S mechanical dimensions and rear solder pad dimensions ..... 12 Figure 6-2 Oven temperature curve ................. 14 Figure 6-3 HIC for ZS2S ..................15 Tables Table 2-1 ZS2S interface pins ..................6 Table 3-1 Absolute electrical parameters ..............
-
Page 6: Module Interfaces
ZS2S has two rows of pins with a 2 mm pin spacing. The ZS2S dimensions (H x W x L) are 2.8± 0.15 mm x 14.9± 0.35 mm x 17.9± 0.35 mm. The PCB thickness is 0.8± 0.1 mm. Figure 2-1 shows the ZS2S front and rear views. -
Page 7: Electrical Parameters
PB01 pin on the internal IC Note: P indicates a power supply pin, and I/O indicates an input/output pin. If you have special requirements for light colors controlled by PWM outputs, contact Tuya business personnel. 3 Electrical Parameters 3.1 Absolute Electrical Parameters... -
Page 8: Working Conditions
Unit Value Value Value –20 Working ° C temperature Working voltage I/O low-level 0.3 x input IOVDD 0.7 x high-level IOVDD input I/O low-level 0.2 x output IOVDD 0.8 x high-level IOVDD output Hangzhou Tuya Information Technology Co., Ltd. V1.0.0... -
Page 9: Rf Current Consumption
(Typical Value) The module is in EZ mode. Connected and The module is idle connected to the network. μA The module is in Deep sleep deep sleep mode, mode with 64 KB flash memory. Hangzhou Tuya Information Technology Co., Ltd. V1.0.0... -
Page 10: Rf Features
Table 4-2 Power during constant transmission Parameter Minimum Typical Maximum Unit Value Value Value –30 Average RF output power Output power fluctuation (–40° C to +125° C) Output power fluctuation (3.0 V to 3.8 V) Hangzhou Tuya Information Technology Co., Ltd. 10 V1.0.0... -
Page 11: Rf Rx Sensitivity
If metal materials are wrapped around the antenna, the wireless signals will be reduced greatly, deteriorating the RF performance. As a dual in-line package (DIP), ZS2S is through-hole mounted onto the PCB. Sufficient space needs to be reserved for the antenna. -
Page 12: Packaging Information And Production Instructions
6 Packaging Information and Production Instructions 6.1 Mechanical Dimensions and Rear Solder Pad Dimensions Figure 6-1 ZS2S mechanical dimensions and rear solder pad dimensions 6.2 Production Instructions Preferentially use the wave soldering machine to solder the module, which is recommended for Tuya-developed modules that are through-hole mounted onto PCBs. - Page 13 Electroless nickel immersion gold (ENIG) is used for the PCBs. If the solder pads are exposed to the air for over three months, they will be oxidized severely and dry joints or solder skips may occur. Tuya is not liable for such problems and consequences. Throughout the production process, take electrostatic discharge (ESD) protective measures.
-
Page 14: Recommended Oven Temperature Curve
Wave Soldering Hand Soldering Preheat Wave soldering 80° C to 130° C 360± 20° C temperature temperature Preheat time 75s to 100s Soldering time < 3s per point Contact time 3s to 5s Hangzhou Tuya Information Technology Co., Ltd. 14 V1.0.0... -
Page 15: Storage Conditions
30° C and the relative humidity is lower than 70%. The shelf life of a dry-packaged product is six months from the date when the product is packaged and sealed. The package contains a HIC. Figure 6-3 HIC for ZS2S Hangzhou Tuya Information Technology Co., Ltd. 15 V1.0.0... -
Page 16: Moq And Packing Information
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following Hangzhou Tuya Information Technology Co., Ltd. 16 V1.0.0... - Page 17 Part 15 Subpart B compliance testing with the modular transmitter installed. The end user manual shall include all required regulatory information/warning as shown in this manual, including: This product must be installed and operated with a minimum Hangzhou Tuya Information Technology Co., Ltd. 17 V1.0.0...
- Page 18 20 cm between the radiator and user body. This device has gotten an FCC ID: 2ANDL-ZS2S. The final end product must be labeled in a visible area with the following: "Contains Transmitter Module FCC ID: 2ANDL-ZS2S" This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users.
