YETI SB100 - Mountain Bicycle Manual

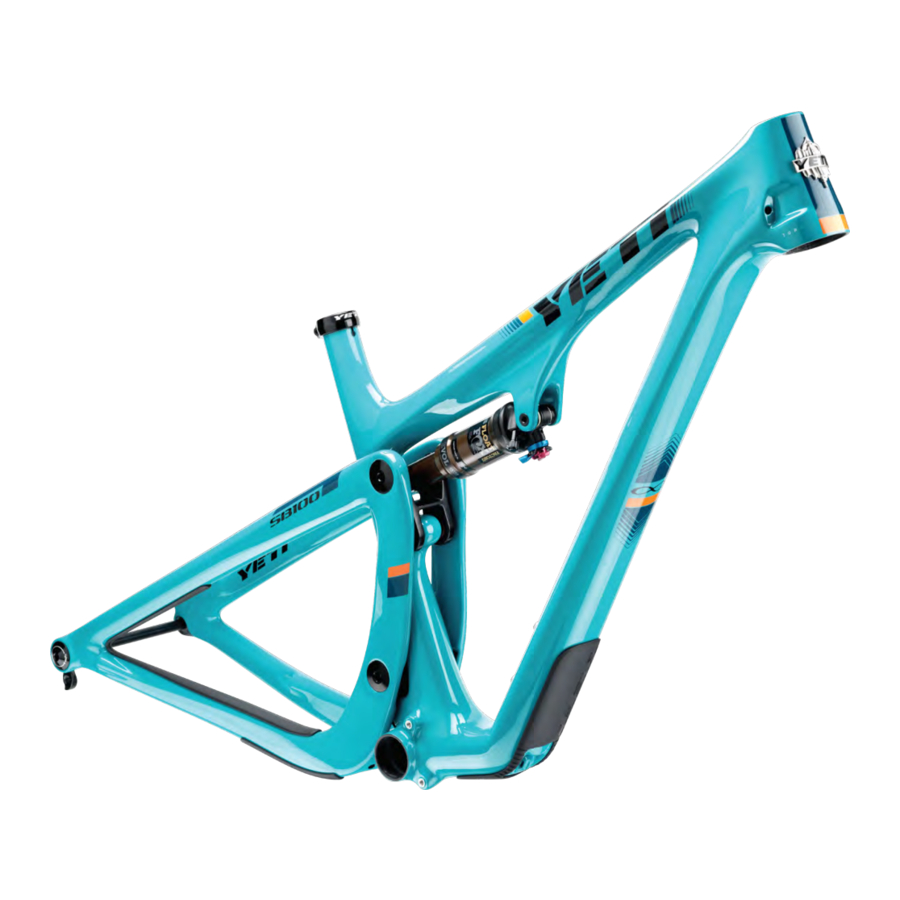

THE LOWDOWN ON THE PRODUCT AND ITS FEATURES

PATENTED SWITCH INFINITY SUSPENSION SYSTEM REDESIGNED FOR 100MM OF TRAVEL
HIGH MODULUS CARBON FIBER MAIN FRAME AND SWING ARM
INTEGRATED 2-BOLT ISCG-05 MOUNTS
TAPERED INTEGRATED HEADTUBE (41MM / 52MM)
CUSTOM DOWN TUBE PROTECTOR AND CHAIN GUARDS
INTERNALLY MOLDED CARBON TUBES INSIDE OF FRAME FOR HASSLE-FREE CABLE ROUTING
INTEGRATED AXLE AND DERAILLEUR HANGER SYSTEM
BOOST HUB SPACING, FRONT AND REAR
CUSTOM SWITCH INFINITY FENDER
CLEARANCE FOR STANDARD SIZED WATER BOTTLE INSIDE MAINFRAME
UNINTERRUPTED SEAT TUBE FOR COMPATIBILITY WITH LONGER TRAVELED DROPPER POSTS

The SB100 delivers 100mm of travel with our patented Switch Infinity Technology that has been redesigned for this short travel frame. Efficient pedaling performance while still smooth and continuous when the going gets rough.
Top of the top Turq Series frames and our Carbon series both offer the same geometry and efficiency in all models.
The SB100 does away with the front derailleur mount, making it a 1x drive specific frame. This increases stiffness in the frame, making the SB100 one of the stiffest bikes in our lineup.
2 bolt ISCG 05 chain guide mounts are included on the SB100 in case you want to go for some extra drivetrain security for the rowdy sections.
The SB100 uses an integrated 41mm / 52mm tapered headset. This system allows for the headset bearings to be contained inside the head tube for an overall lower ride height, more simplified installation, and increased stiffness.
The SB100 uses a 37.5mm stroke, 190mm eye to eye Float DPS shock, by Fox Racing Shox.
Custom guards on the seat stay, chain stay and down tube keep things quiet while riding and protect the frame.
The SB100 features internally molded routing tubes for all cables, making the bike quiet and clean looking as well as reducing maintenance and cable rub.
Dedicated 12 x 148 Boost dropouts and integrated hanger with axle threads for strength, stiffness, ease of hanger and wheel installation.

Make sure you review and understand the warnings, instructions, and content of this manual and accompanying manuals for your bicycle.

Technological advances have made bicycles and bicycle components more complex and the pace of innovation is increasing. It is impossible for this manual or the accompanying manuals to provide all the information required to properly repair and/or maintain your bicycle. In order to help minimize the chances of an injury, it is critical for you to have work performed by an authorized Yeti retailer.

GEOMETRY

FIT
X-SMALL		4'11" (150 CM) - 5'3" (160 CM)
SMALL		5'3" (160 CM) - 5'7" (170 CM)
MEDIUM		5'7" (170 CM) - 5'11" (180 CM)
LARGE		5'11" (180 CM) - 6'3" (191 CM)
X-LARGE		6'3" (191 CM) - 6'6" (198 CM)
FOX 34 / 1 0MM FORK
		SM	MD	LG	XL
A	WHEEL	29"	29"	29"	29"
B	REACH	407.1	432.1	452.1	472.1
C	EFF. TOP TUBE	576.7	605.2	630.3	657.2
D	STACK	602	612.1	627.1	647.2
E	HEAD TUBE LENGTH	96.2	107	123.2	144.7
F	SEAT TUBE LENGTH	393	419	457	495
G	EFF. SEAT TUBE ANGLE	74.3	74.2	74.1	74
H	HEAD TUBE ANGLE	67.8	67.8	67.8	67.8
I	MECH. TRAIL	96	95.9	95.9	95.9
J	BB DROP	37.9	37.9	38	38
K	EST. BB HEIGHT	332.1	332.1	332	332
L	CHAINSTAY LENGTH	437	437	437	437
M	FRONT-CENTER	685.2	714.2	740.0	768.3
N	WHEELBASE	1122.3	1151.4	1177.4	1205.5
O	STAND OVER	724	724	723.9	723.9
P	AXLE TO CROWN	530.2	530.2	530.2	530.2
Q	FORK OFFSET	44	44	44	44

*All measurements are in millimeters

KEEP YOUR PRODUCT FRESH AND CLEAN

OVERVIEW

Following these guidelines will help maintain the performance of your bicycle and prevent more serious problems from arising. It is important to remember that service intervals can vary depending on climate, trail conditions and riding frequency. If you are unsure about working on your own bicycle, contact your authorized Yeti Dealer for more information on general bicycle maintenance.

SCHEDULE

MAINTENANCE SCHEDULE

TORQUE

Yeti strongly recommends using a torque wrench when assembling your frame. Torque specifications for individual parts on the SB100 are listed below, as well as in the step by step assembly instructions later in the manual. For general bicycle maintenance please consult the torque specifications of the component you are adjusting.

KEY TORQUE SPECS

PART NUMBER	DESCRIPTION	TORQUE (NM)
300030295	SHOCK BOLT, 8MM, FLAT HEAD	10
300030156	SHOULDER BOLT, M6X1 FH, TI	12.5 - 14
200020313	PIVOT HARDWARE, MAIN, 17MM	46
300030294	SS PIVOT BOLTS, 15MM	37
300030293	BOLT, LINK PIVOT,MALE 15MM	15
100425006	AXLE, YETI BOLT ON, 12X148MM	12-15

FRAME ASSEMBLY

YETI TIPS

Make sure your tools are in good condition. A worn allen key can round the hex on a bolt not allowing for proper torque. Torque settings are listed throughout the instructions below. It is important to prep all bolt threads. The instructions denote whether to use a Loctite compound or grease.

Service on Yeti bicycles requires special knowledge and tools. Yeti Cycles recommends that all service and repairs be performed by an authorized Yeti Dealer

TOOLS NEEDED

2.5mm allen key
5mm allen keys
6mm allen key
8mm allen key
T25 allen key
Guide pin tool (2)
Torque wrench
Cassette tool
Flat head screw driver
Grease
Blue (243) Loctite

ASSEMBLY

All the parts you'll need to get your SB100 frame assembled. Please refer to the exploded view later in this manual for more information.
Install 2x Bearing Lockrings (200020311) into the SS Pivots on the Rear Triangle.
*Torque: 20 Nm
Install one Grease Zerk (200020314) into each Main Pivot bolt with a flat head screwdriver. Zerk end should be flush with the end of the Main Pivot bolt.
Install 2x H20 Bolts (300030010) and Washers to front triangle.
*Torque: 4-5 Nm
Push the SB100 Switch Infinity Link into the frame
Use a guide pin to line up the shaft eyelet holes with the frame.
Install a short Ti Female Bolt (300030301) from the inside of the shaft eyelet through the frame. Use a guide pin to help installation if necessary. Repeat for all four mounting holes.
Install a Flat Head Male Ti Bolt (300030156) through the Front Triangle into the Ti Female Bolts. Repeat for all four locations
Use a ball-end wrench to prevent the inner Ti Female Bolts from rotating. Torque the 4x Flat Head Ti Male Bolts to 12.5 - 14 Nm.
Apply a light coat of grease to the shaft of the Female Link Pivot Bolt (300030292). Slide the Alloy Link onto the Front Triangle and install the Female Link Pivot Bolt.
Install Male Link Pivot Bolt (300030293). into Female Link Pivot Bolt.
*Torque to 15 Nm
Install the rear shock eyelet into the Link. Make sure that the shock controls are facing downwards, and secure with guide pins (note they will not pass through the frame).
Grease heads of 2X Shock Bolt (300030295). Install Shock Bolt into the rear shock eyelet.
*Torque: 10 Nm
Install front Shock Bolt.
*Torque: 10 Nm
Slide the Rear Triangle over the Main Pivot onto the Switch Infinity Link. Secure with 2x Main Pivot Bolt (200020313).
*Torque: 46 Nm
Install 2x Seat Stay Pivot Bolts (300030294) through the Swingarm and into the Link.
*Torque: 37 Nm
With a needle-type grease gun, fill grease into the Main Pivot Grease Zerks until a small amount of grease is purged through the Switch Infinity seals. Clean off any excess grease with a clean cloth or rag.
Clip the Switch Infinity Fender (400100194) onto the four switch infinity mounting bolts. Orient the fender so the small raised lip on the backside is at the top
Apply grease to the outside circumference of the Derailleur Hanger (300060073). Install onto the rear triangle. Hanger threads are REVERSE THREADED.
*Torque: 10 Nm
