Important safety instructions:
Please read carefully all instructions before assembly.
For your safety and ease, assembly by two or more adults is recommended.
Keep instructions for future use.
Pre-assembly:
Do not discard any content until assembly is complete to avoid accidentally discarding small parts or hardware.
Take out all parts and hardware from box.
Parts List
Description
Item
P1
Half Top Frame
Mounting Board
P2
Leg Frame
P3
P4
Half Leg Frame
Height
Gathering
P5
Connector
Hardware List
Description
Item
H1
Bolts Ø5/16"x75mm
H2
Bolts Ø5/16"x35mm
H3
Bolts Ø5/16"x25mm
H4
Lock Washers Ø5/16"
H5
Flat Washers Ø5/16"x19mm
H6
Metal Bracket
H7
Allen Key 4mm
DISCLAIMER:
WHEN PROPERLY ASSEMBLED, THIS ITEM IS SAFE FOR INTENDED USE. SELLER IS NOT LIABLE FOR ANY DAMAGES
RESULTING FROM ITEM BEING IMPROPERLY ASSEMBLED AFTER PURCHASE.
Assembly Procedures:
Step1: Assemble the table on a flat, soft surface such as a carpet or cloth to prevent scratching the finish.
Lock all spring clips under the table top. Then attach the Mounting Board (P2) to Half Top Frame (P1) as shown
below.
(H2)x12
Bolts Ø5/16"x35mm
(H4)x12
Lock Washers Ø5/16"
(H5)x12
Flat Washers Ø5/16"x19mm
Allen Key 4mm
(H7)x1
P1

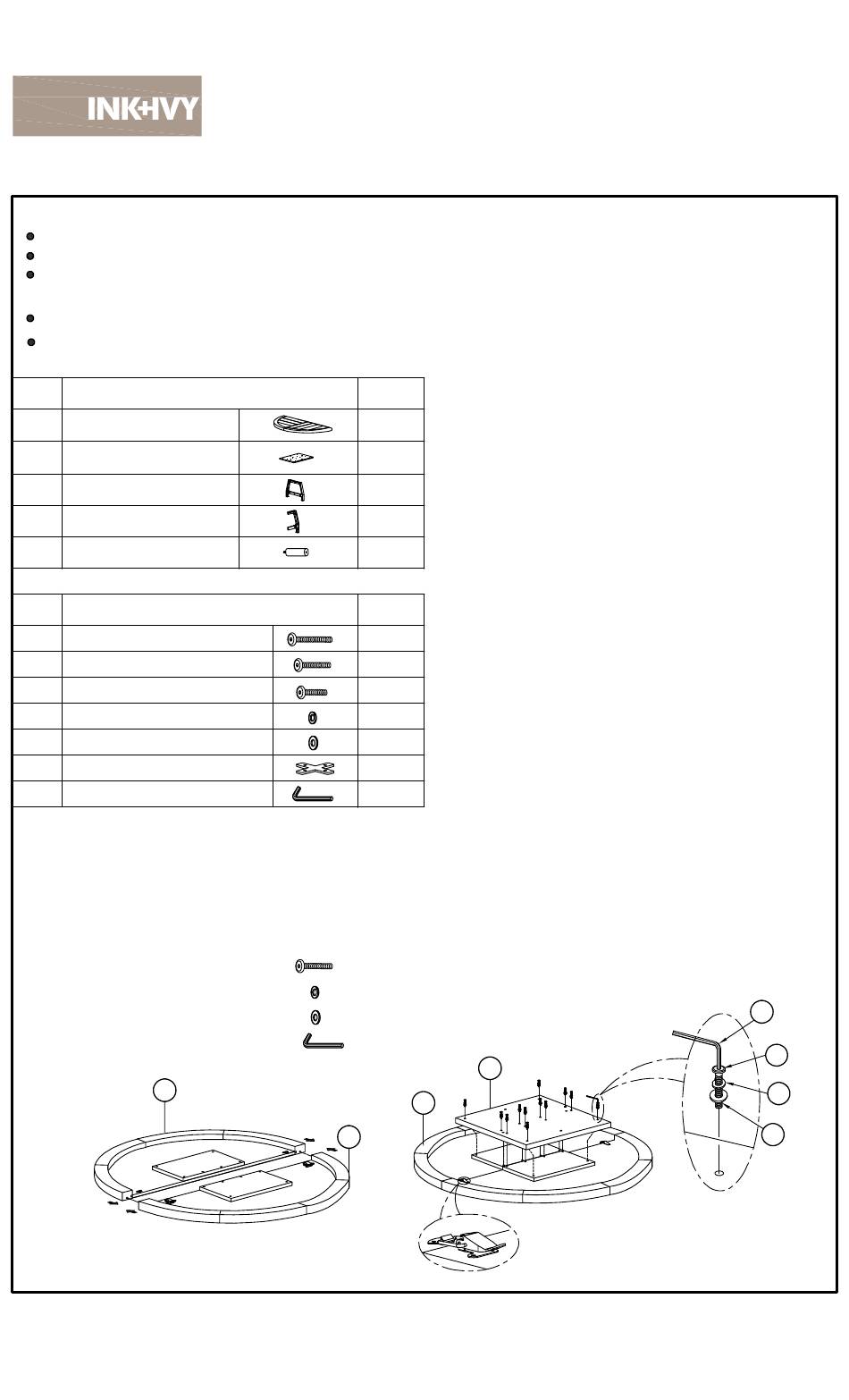

ASSEMBLY INSTRUCTIONS
Description: LANCASTER ROUND TABLE
QTY
2
1
1
2
4
QTY
4
12
8
24
24
2
1
P1
P1
Page 1 of 3
P2
LOCK
H7
H2
H4
H5
