Important safety instructions:
Please carefully read all instructions before assembling the chair.
For your safety and ease, assembly by two or more adults is recommended.
Keep instructions for future use.
Pre-assembly:
Do not discard any contents until after assembly is complete to avoid accidentally discarding small parts or
hardware.
Remove all parts and hardware from box along with any plastic protective packaging.
a
b
c
d
e
f

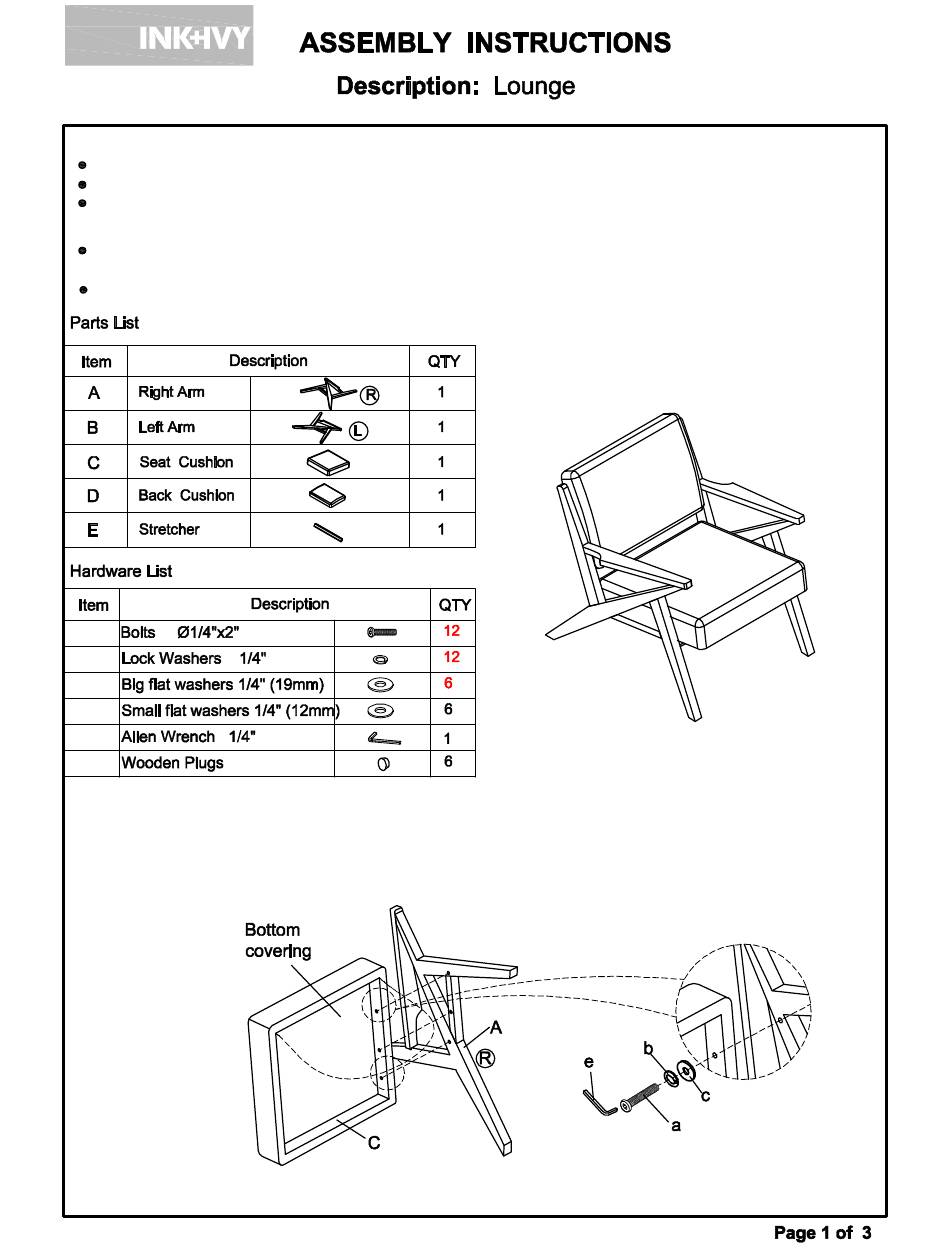

Assembly Procedures:
Step 1. Assemble the lounge on a flat, soft surface such as a carpet or cloth to prevent scratching the finish.
Open the bottom covering, then attach right arm (A) to seat cushion (C) using bolt (a), lock washer (b) and flat
washer (c) according to the label "R" on the right arm (A), seat cushion (C). Loosely tighten by Allen wrench (
Step 1
e).
Advertisement
Table of Contents
Related Manuals for INK+IVY Lounge
Summary of Contents for INK+IVY Lounge
- Page 1 Assembly Procedures: Step 1. Assemble the lounge on a flat, soft surface such as a carpet or cloth to prevent scratching the finish. Open the bottom covering, then attach right arm (A) to seat cushion (C) using bolt (a), lock washer (b) and flat washer (c) according to the label "R"...
- Page 2 Step 2. Attach right arm (A) to back cushion (D) and stretcher ( E) using bolt (a), lock washer (b) and flat washer (d) according to the label "R" on the right arm (A), seat cushion (C) and back cushion (D). Loosely tighten by Allen wrench ( e).
- Page 3 Step 4. Attach seat cushion (C) to left arm (B) using bolt (a), lock washer (b) and flat washer (c). Loosely tighten by Allen wrench ( e). Step 5. Turn the assembled loveseat to a upright position. Securely tighten all bolts by Allen wrench ( e), but do not over tighten the bolts.
