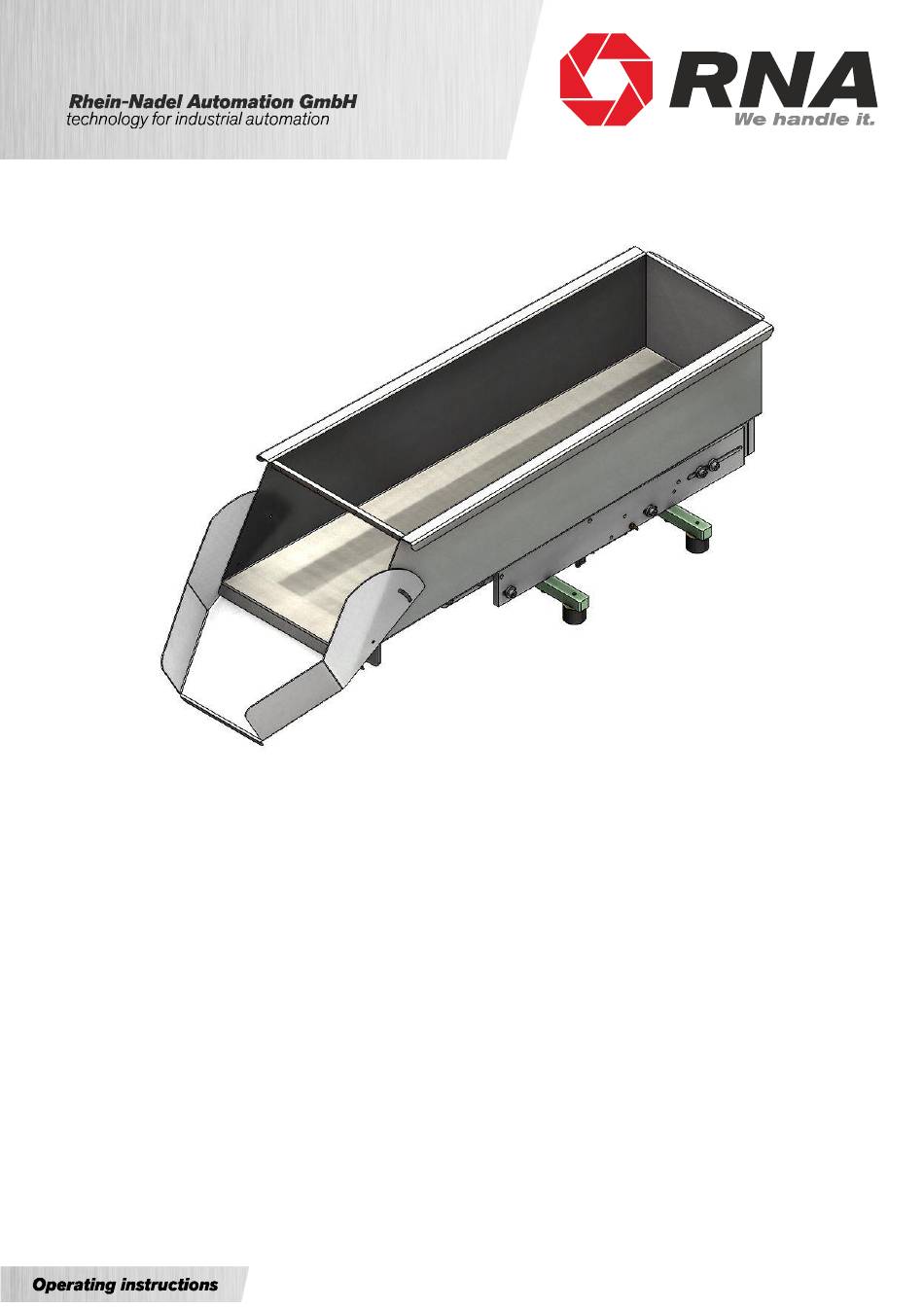

- Page 1 Installation and Operating Instructions Vibratory Hopper Type BV Type BVL...
-
Page 2: Table Of Contents
Table of Contents General ..........................4 1.1. Pin assignment ........................4 Safety Information ........................7 2.1. Applicable directives and standards..................8 Shipment and installation ....................... 8 3.1. Shipping and handling ......................9 3.1.1. Shipment ex works ....................... 9 3.1.2. On-site moving ......................9 3.2. - Page 3 Declaration of Incorporation (according to Annex II B of the Machinery Directive) Company Rhein-Nadel Automation GmbH Reichsweg 19-23 52068 Aachen Germany herewith declare under our sole responsibility that with regard to the following product: Vibratory Hopper Machine designation: (func- tion) Type designation: BV(L) Serial number...
-
Page 4: General
3 + 4. Notice All linear feeders listed in this table shall be operated only in conjunction with an RNA controller and with a mains voltage of 230 V / 50 Hz. For special voltages and frequencies please refer to the separate data sheet. - Page 5 BV 8 BV 15 BV 30 BV 60 BV 100 BV 150 BV 200 Filling volume 15 l 30 l 60 l 100 l 150 l 200 l Filling weight 30 kg 30 kg 35 kg 100 kg* 150 kg* 200 kg* 200 kg* Drive...
- Page 6 Fig.: BVL5 through BVL 50 Fig.: BVL3 Fig.: BVL100 BVL 3 BVL 5 BVL 15 BVL 25 BVL 50 BVL 100 Filling volume 3.5 l 15 l 25 l 50 l 100 l Filling weight 15 kg 15 kg 20 kg...
-
Page 7: Safety Information
Design types Standard design: Hopper tray made of stainless steel (1.4301) Nominal voltage 200 V / 50 Hz Factory set-up for specified filling weight * BVL 100 including adjustable chute, glass bead blasted Special design: Hopper tray coated with polyurethane, MetaLine or PX Special voltages (110 V / 50-60 Hz;... -
Page 8: Applicable Directives And Standards
Attention It is strictly forbidden to disable any guards or safety devices! Equipment user's duties • Observe the directives given in the operating instructions for any kind of work (operation, maintenance, repairs, etc.). • Refrain from any working practice that affects the safety at the hopper. •... -
Page 9: Shipping And Handling
3.1. Shipping and handling 3.1.1. Shipment ex works The linear feeders are delivered ex works in a box or crate. 3.1.2. On-site moving The weight of the vibratory hopper depends on its dimensions and motor rating. Please refer to the shipping documents for the weight of your specific equipment. -
Page 10: Commissioning
Attention The vibratory hopper is intended to complete / to be incorporated into a complete system. Do not operate the machine before safe completion/incorporation by the user. 4. Commissioning Attention Make sure that the machine frame (rack, substructure, etc.) is connected to the protective earth conductor (PE). -
Page 11: Spare Parts And Customer Service
6. Spare parts and customer service For an overview of genuine spare parts available please refer to the separate spare parts list. In order to make sure that your order is processed swiftly and correctly please specify the device type (see rating plate), the quantity required, the spare part designation and the spare part number. - Page 12 Headquarters Rhein-Nadel Automation GmbH Reichsweg 19-23 D-52068 Aachen Phone: +49 (0)241-5109-0 E-mail: vertrieb@RNA.de www.RNA.de Further manufacturing sites Further RNA group companies: of the RNA Group Lüdenscheid site PSA Zuführtechnik GmbH Rhein-Nadel Automation GmbH Steinäckerstraße 7 Nottebohmstraße 57 D-74549 Wolpertshausen D-58511 Lüdenscheid...
