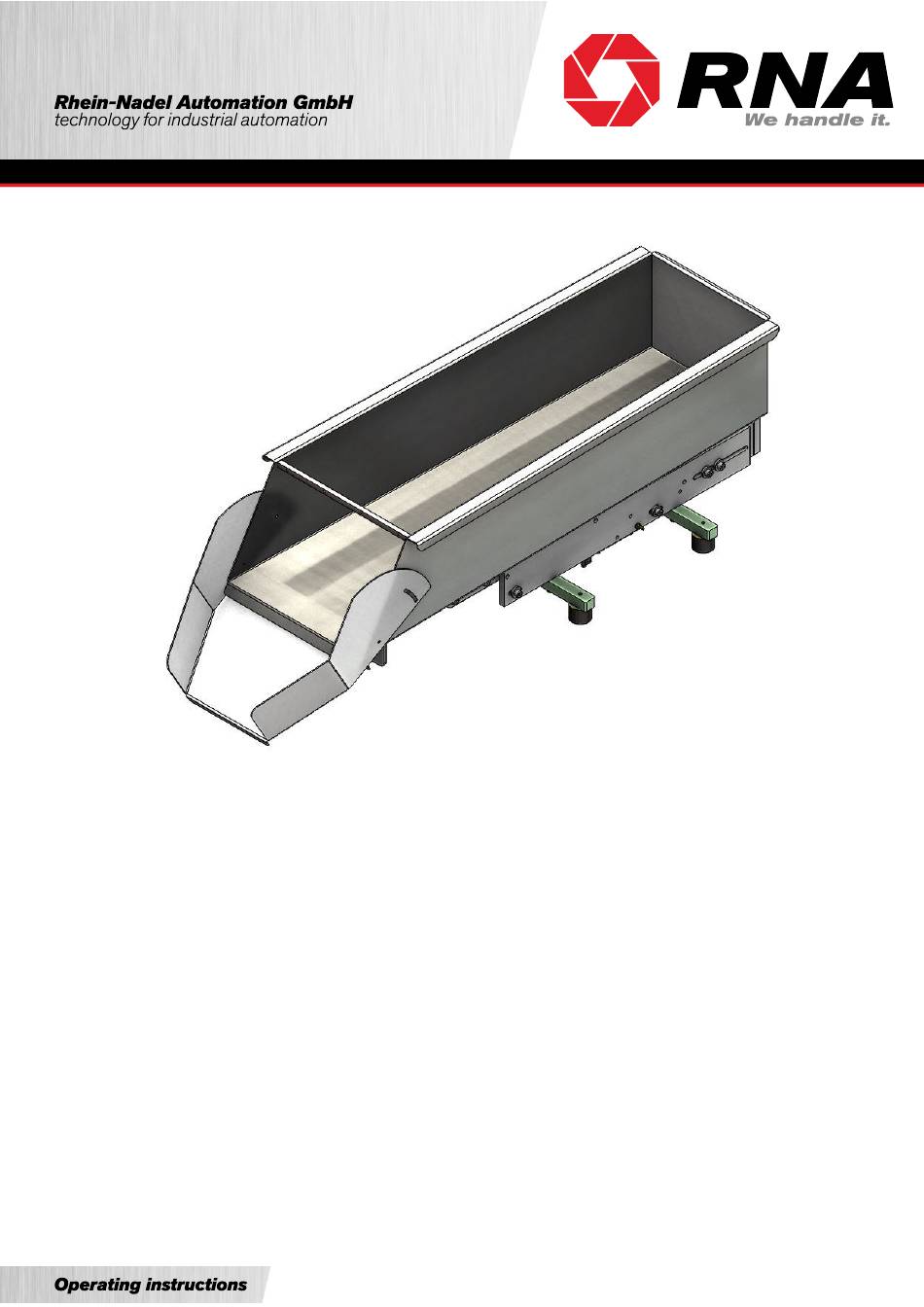

- Page 1 Installation and Operating Instructions Vibratory hopper Type BV Type BVL...
-
Page 2: Table Of Contents
Table of Contents General ............................4 1.1. Pin assignment .......................... 4 Safety directives ........................... 7 2.1. Applicable directives and standards ..................8 Shipment and installation ......................9 3.1. Shipment ........................... 9 3.2. Installation ..........................9 Commissioning ..........................9 Maintenance ..........................9 Spare parts and customer service .................... - Page 3 Declaration of Incorporation according to Machinery Directive 2006/42/EC We hereby declare that our product is intended to be incorporated into or assembled with other machinery to constitute one machine in terms of the Directive indicated above (or parts thereof) and that it must not be put into operation until the rele- vant machinery into which it is to be incorporated has been declared to be in conformity with the EC Machinery Directive.
-
Page 4: General
Notice All linear feeders listed in this table shall be operated only in conjunction with an RNA controller and with a mains voltage of 230 V / 50 Hz. For special voltages and frequencies please refer to the separate data sheet. - Page 5 BV 8 BV 15 BV 30 BV 60 BV 100 BV 150 BV 200 Filling volume 15 l 30 l 60 l 100 l 150 l 200 l Filling weight 30 kg 30 kg 35 kg 100 kg* 150 kg* 200 kg* 200 kg* Drive...
- Page 6 Fig.: BVL5 through BVL 50 Fig.: BVL3 Fig.: BVL100 BVL 3 BVL 5 BVL 15 BVL 25 BVL 50 BVL 100* Filling volume 3.5 l 15 l 25 l 50 l 100 l Filling weight 15 kg 15 kg 20 kg 25 kg 50 kg 50 kg...
-
Page 7: Safety Directives
Design types Standard design: Hopper tray made of stainless steel (1.4301) Nominal voltage 200 V / 50 Hz Factory set-up for specified filling weight * BVL 100 including adjustable chute, glass bead blasted Special design: Hopper tray coated with polyurethane, MetaLine or PX Special voltages (110 V / 50-60 Hz;... -
Page 8: Applicable Directives And Standards
Attention It is strictly forbidden to disable any guards or safety devices! Equipment user's duties • Observe the directives given in the operating instructions for any kind of work (operation, maintenance, repairs, etc.). • Refrain from any working practice that affects the safety at the hopper. •... -
Page 9: Shipment And Installation
3. Shipment and installation 3.1. Shipment Notice Take care that the hopper cannot collide with other objects during handling operations. 3.2. Installation The hopper should be mounted on a stable substructure (available as an accessory) at the point of use. This substructure must be dimensioned to ensure that no vibrations from the linear feeder can be transmitted. -
Page 10: Spare Parts And Customer Service
6. Spare parts and customer service For an overview of genuine spare parts available please refer to the separate spare parts list. In order to make sure that your order is processed swiftly and correctly please specify the device type (see rating plate), the quantity required, the spare part designation and the spare part number. - Page 11 RNA Group Headquarters Manufacturing and Sales Rhein-Nadel Automation GmbH Reichsweg 19-23 D-52068 Aachen Further manufacturing sites of the RNA Group Phone: +49 (0) 241-5109-0 Fax: +49 (0) 241-5109-219 Manufacturing E-Mail: vertrieb@RNA.de Lüdenscheid branch www.RNA.de Rhein-Nadel Automation GmbH Nottebohmstraße 57 D-58511 Lüdenscheid...
