Summary of Contents for RAIS Q-TEE II C SST

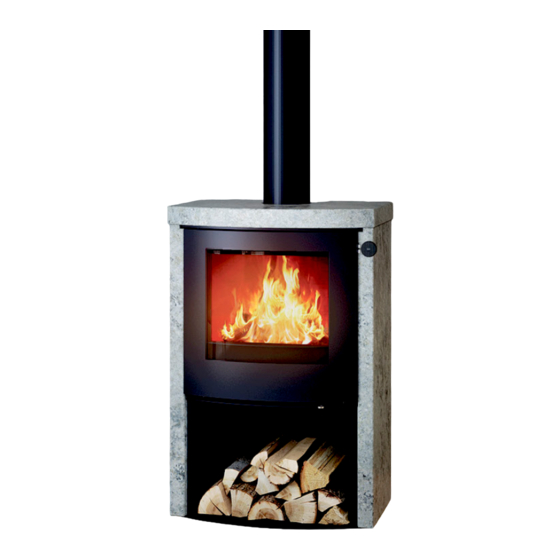

- Page 1 Q-TEE II C SST Montage af Fedtsten Montage von Speckstein Mounting the soapstone Montage de stéatite Montering av kleberstein Montering av tvålsten Vuolukivin asennus Montage van speksteen...
- Page 3 INSTALLATION MANUAL CONTENTS Dimensional drawings Mounting the soapstone Installation of firewood hopper cover 16.06.2020...
-

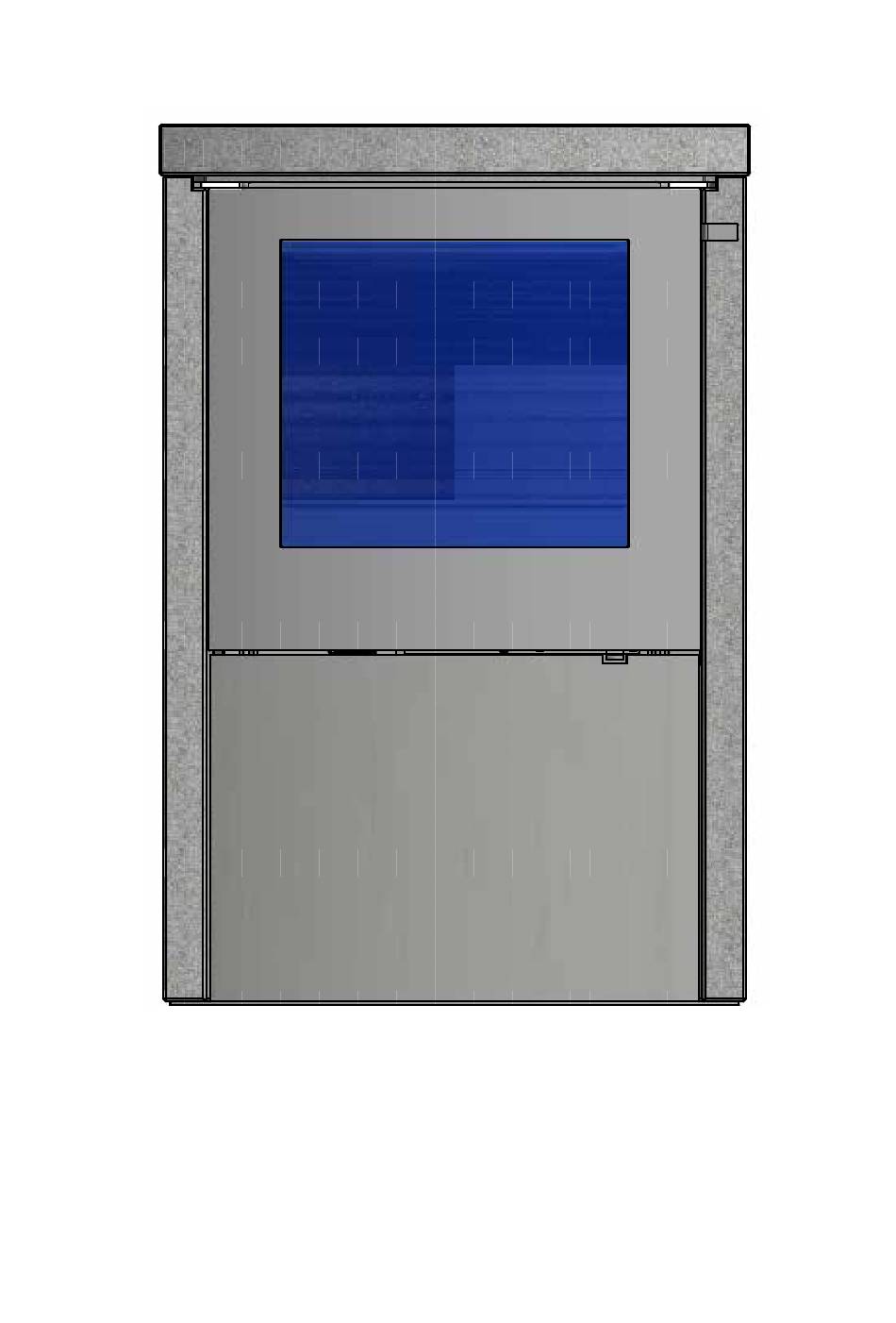

Page 4: Dimensional Drawing
Dimensional drawing 1038 332,9... - Page 5 Mounting of Soapstone Front side 1. Attach the fastener brackets (1) to the side stones using the four M5 x 10 bolts (2). 97,4 2. Position the fasteners in relation to the top of the side stones as shown here. 3.
- Page 6 5. Place the side stones on the base- plate and carefully push them in against the guide pins on the base- plate. 6. Hold the side stone against the stove and push the fastener bracket all the way to the front until it clicks into place.
- Page 7 Attaching the firewood bin cover Attach the firewood bin cover by rest- ing the cover’s rubber feet (1) on the stove baseplate. Then tilt it in against the stove until the magnets (2) hold the cover in place.
