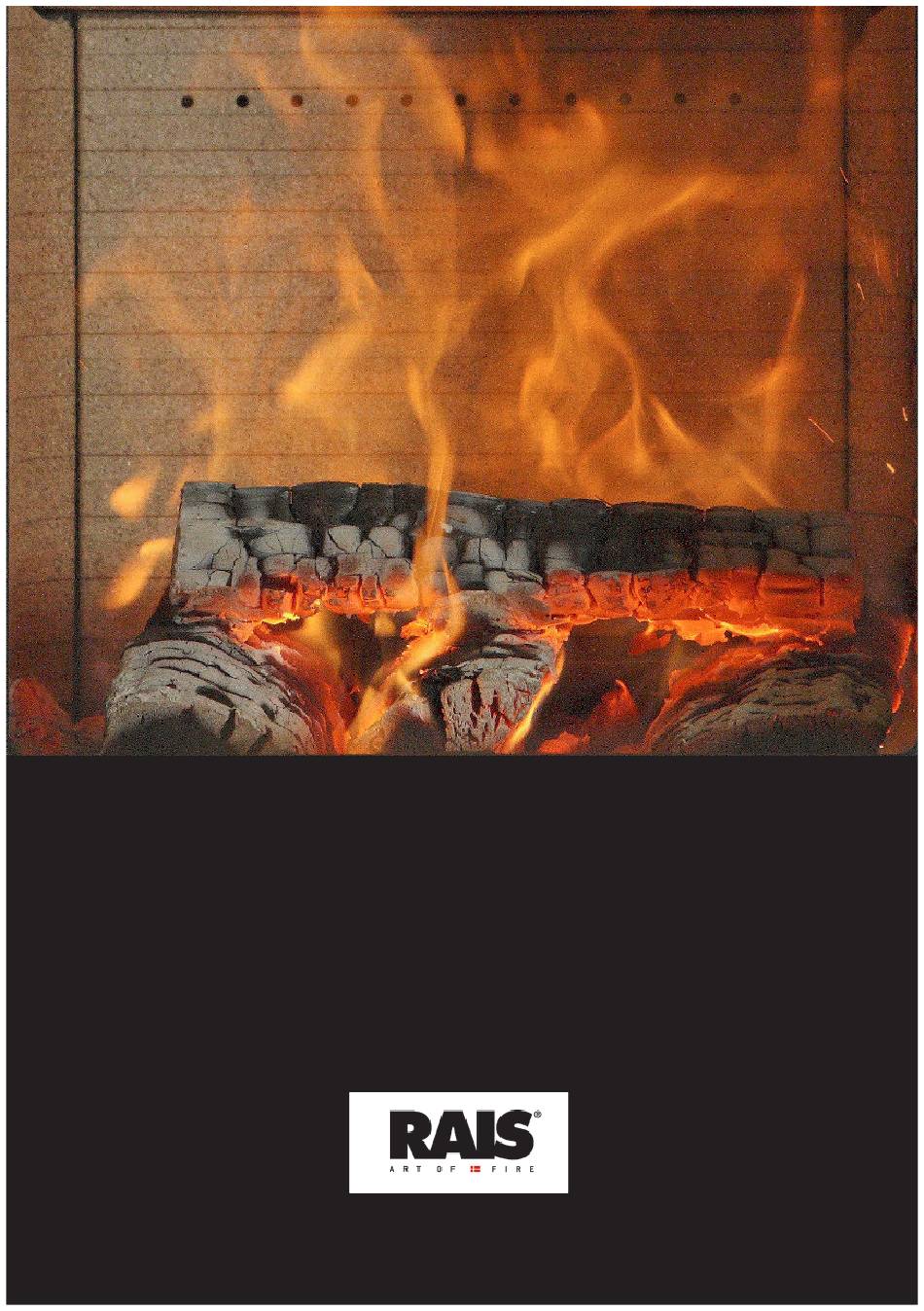

- Page 1 U S E R M A N U A L / M A N U A L D ’ U T I L I S AT I O N Q-Tee II Classic INSERT USA Q-Tee II INSERT USA...
- Page 2 FIRE ENVIRONMENTALLY FRIENDLY! 5 Eco-friendly advice for sensible heating - common sense both environmentally and economically. 1. Effective lighting. Use small pieces of wood (fir tree) and a suit- able fire lighter, for example paraffined wood wool/sawdust. Open the air damper, so plenty of air is fed to the stove and the gases from the heated wood can burn rapidly.
-
Page 3: Table Of Contents
Q-Tee II INSERT USA Report no. : # 23-203, 300-ELAB-2635-EPA Rev 1 Revision Date (DMY) : 18-09-2023 INTRODUCTION ..............4 WARRANTY . -
Page 4: Introduction
Congratulations on the purchase of your new RAIS wood burning stove. A RAIS wood burning stove is more than just a source of heat, it is a symbol of the emphasis you put on decorating your home with superiorly designed high-quality products. -
Page 5: Specifications
It is against federal regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating instructions in this manual. Specifications: Rais Q-Tee II INSERT USA Weight of Stove 333 lbs (151 kg) Stove exterior: Width/depth/height... -
Page 6: Warning
Glass and replacement of glass. All RAIS stoves supplied with Robax® glass in the door. Robax® glass is a ceramic glass type suitable for stoves. The glass is installed from RAIS as an integral part of the door and stove. -
Page 7: Installation
Installation Precautions and Specifications IF THIS STOVE IS NOT INSTALLED PROPERLY, A HOME FIRE MAY RESULT. TO REDUCE THE RISK, PLEASE CAREFULLY FOLLOW THE DIRECTIONS FOR INSTALLATION. Before installation, remember to consult your local building inspector or fire marshal to determine the need to obtain a permit. Also enquire about restrictions and in- stalla- tion inspection requirements in your area. -
Page 10: Space Requirements
Space requirements This insert requires a free space of minimum 26”(660,4mm) in height, 15.5“ (393,7mm) in depth and with a width of 25” (635mm) to funktion propperbly, and allow for con- vection air cirkulation. The insert will expand acording to the temperature when it heats up, therefore there need to be some free space around the insert. -
Page 11: Minimum Distances To Cumbustible Material
Minimum distances to cumbustible material. Distance to adjacent sidewall from door 12.25” (311 mm) Distance to floor from door >9.5” (241mm) R=0 Distance to floor from door <9.5” (241mm) R=1.4 Distance to Ceiling from door 56.5” (1435mm) Floor protection in front of the door US 16” CAN 18” (1435mm) Trim depth ¾”... -
Page 12: Assembly Instructions
Assembly Instructions Although the Insert comes assembled, it has to be mounted into the fireplace. First remove the lower baffle plate by lifting it up in one side and then down in the other side, then pulling it out. Remove the upper baffle plate by pushing the back of the plate up, tilt it and take it out. - Page 13 Connect the flue collar to the chimney or liner. place the insert in the fire place. The insert can then be placed and centered in the fireplace or built-in opening. To level the insert, use the 4 leveling screws situated under the firebox.
-
Page 14: Floor Protection
Floor protection If the floor is combustible, the stove must be placed on a non-combustible plate such as steel, glass or stone. The floor protection plate must extend 16” in front of the stove door in the US (40.6cm) and 18” (45.7cm) in Canada, 8” (20cm) beyond the sides of the fuel-loading door. -
Page 15: Removal Of The Fireplace For Inspection
Removal of the fireplace for inspection. In case of an inspection of the fireplace or fireplace insert it might be necessary to remove the insert from the fireplace. in this case you should follow the steps on page 12 for removing the baffles and smoke chicane from the insert and loosen the flue collar from the insert. -
Page 16: Change Of Chimney Connection
Change of chimney connection The stove is delivered ready for top outlet, but may be changed to back outlet in the following way: Sample photos Strike out the knock out plate at the rear of stove. Remove the baffle plate and smoke chikane. Remove the blanking plate (3 M6 nuts) and its sealing. -
Page 17: Label / Nametag
Label... -
Page 19: Firewood
Firewood Only burn wood that has been seasoned for at least one full year (two years is better). If the wood has not been seasoned or dried, energy will be lost in evaporating the wa- ter held in the wood. Furthermore, condensation or creosote might occur in the stove and pipe when damp wood is burnt. -
Page 20: Adjusting The Combustion Air
Adjusting the combustion air All RAIS stoves are equipped with an easy-to-use handle for adjusting the air control. For the various positions of the control please see the following illustrations. To en- sure proper combustion process it is very important to supply the correct quantity of air at the right time and place. -
Page 21: Using The Stove
REMEMBER THE STOVE IS HOT WHILE IN OPERATION, SO KEEP CHILDREN, CLOTHING, AND FURNITURE AWAY. CON- TACT WITH A STOVE WHEN BURNING MAY CAUSE SKIN BURNS. Warning: Do not fire the stove with the door open! Using the stove Only use wood as fuel as described in the firewood section of this manual. Adjusting the air control There are three different positions for air control: Position 1:... -
Page 22: Carbon Monoxide Detectors
First Fire Your new RAIS should be run-in gently for top performance and to prevent paint dam- age, cracks in the firebrick, and excessive wear and tear. Start with a small fire (never overload the firebox) to allow the materials to get accustomed to the higher tempera-... -
Page 23: Lighting And Stoking
Lighting and Stoking To light the stove, use alcohol briquettes or similar, as well as approx. 2 kg of firewood, split into kindling sticks. Set the air damper to the fully open position. Be careful not to place the firewood too close to the opening and glass. - Page 24 When the flames are clear - after approx. 5-10 min. - close the door. After approx. 10-20 min. - when you have a good Bed of glowing embers - add 2-3 pieces of wood. Be careful not to place the firewood too close to the opening and glass.
-
Page 25: Fuel Caution
Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, naph- tha, engine oil, or similar liquids to start or freshen up a fire in your RAIS stove. Keep all such liquids well away form the stove while it is in use. -
Page 26: Maintaining The Installation
Maintaining the installation. Establish a routine for the fuel, wood burner and firing technique. Check daily for creo- sote build-up until experience shows how often you need to clean to be safe. Be aware that the hotter the fire the less creosote is deposited, and weekly cleaning may be necessary in mild weather even though monthly cleaning may be enough in the cold- est months. -
Page 27: Cleaning The Smoke/Baffle System
Cleaning of smoke chicane Remove the smoke convert- er plate by tilting it to one side and turning it a little slantwise. Pull out the plate carefully. Then remove the smoke impediment by lifting it up and moving it forward. Carefully lift out the smoke impedi- ment. -
Page 28: Disposal Of Ashes
REOSOTE ORMATION AND EED FOR EMOVAL HEN WOOD IS BURNED SLOWLY IT PRODUCES TAR AND OTHER ORGANIC VAPORS WHICH COMBINE WITH EXPELLED MOISTURE TO FORM CREOSOTE HE CREOSOTE VAPORS CONDENSE IN THE RELATIVELY COOL CHIMNEY FLUE OF A SLOW BURNING FIRE S A RESULT CREOSOTE RESIDUE ACCUMULATES ON THE FLUE LINING... -
Page 29: Trouble Shooting
• Leak between chimney and pipe If the problems continue we recommend contacting your chimney sweep or your local RAIS dealer. Chimney fire, soot fire or creosote fire: In case of a fire in the chimney quickly close all doors, dampers, vents and call your lo-... -
Page 30: Spare Parts
Spare parts Only use the specified original Rais components! If spare parts other than those recommended by RAIS are used, the warranty is voided. All replaceable parts can be bought as spare parts from your RAIS distributor. For reference see spare parts drawing Q-Tee II (front of the user manual). - Page 31 Spare parts...
-
Page 32: Air Kit
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK delivered with the air-box Corrections: Phone +45 98 47 90 33 - Fax +45 98 47 92 91 E-mail: info@rais.dk - Homepage: www.rais.dk Fitting the air kit Drawing name: 4. Slide the air-box in under the... - Page 33 Air kit - Fresh air supply, air through the back. When the space heater is installed in a structure where direct combustion air is re- quired, an air kit must be used to supply fresh air to the appliance from outside. 1.
- Page 34 RAIS A/S Industrivej 20 DK-9900 Frederikshavn Denmark www.rais.com...
-
Page 35: Revision Log
Revision log: Dato (DMY) 01-05-2023 sparepart list updated with new part numbers for firebrick set and shaking grate. specifications updated. 15-05-2023 Section on “Carbon monoxide detectors” added 05-08-2023 Label updated 18-09-2023 Updates from changes to UL 1482-2022 & ULC-S628-2022...
