SIMPLIHOME brooklyn + max WyndenHall AXCWSH42-LGB Manual

Warm shaker / norfolk / lexington 42 inch tv media stand

Advertisement

Warm Shaker / Norfolk / Lexington
42 inch TV Media Stand
Model # AXCWSH42-LGB
TM
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCWSH42-LGB and is the answer not in the manual?

Questions and answers

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCWSH42-LGB

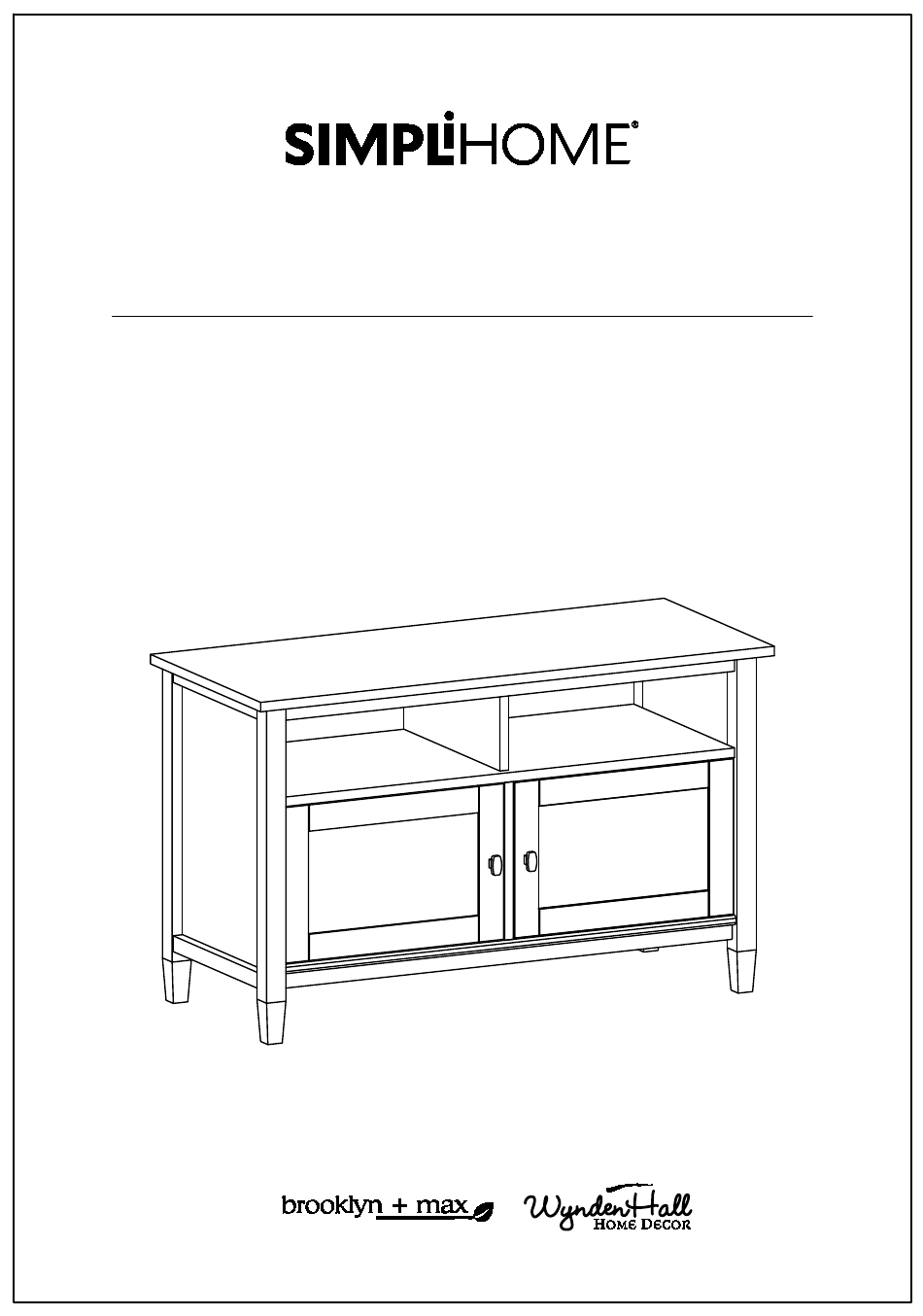

  • Page 1 Warm Shaker / Norfolk / Lexington 42 inch TV Media Stand Model # AXCWSH42-LGB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 130 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
  • Page 8: Maximum Load 25 Lbs

    WARNING For use with televisions weighing 130 lbs or less. Use with heavier televisions may result in instability causing tip over resulting in death or serious injury. If a customer wants to use this unit as a TV stand, you must install the TV at position 4 inches from the front edge of console to prevent it from tipping over.
  • Page 9 Pre-Assembly Information Model # AXCWSH42-LGB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF MIDDLE SHELF SMALL DIVIDER QTY 1 QTY 1 QTY 1 SHELF DOOR LARGE DIVIDER QTY 1 QTY 2 QTY 2 Warning Label TOP BACK PANEL BOTTOM BACK PANEL QTY 1...
  • Page 10 Pre-Assembly Information Model # AXCWSH42-LGB Hardware Description CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW ALLEN KEY BOLT CAM LOCK Ø8 X 30mm M6 X 30mm M6 X 40mm QTY 12 SETS QTY 2 QTY 4 QTY 8 PHILLIPS SCREW ROUND HEAD HANDLE SHELF SUPPORT...
  • Page 11 Components - Key Diagram Model # AXCWSH42-LGB...
  • Page 12 Assembly Model # AXCWSH42-LGB Step 1 1. Attach Cam Lock Pins 3 into pre-drilled holes on Sides BL , BR and Middle Shelf D . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert one Wood Dowels 4 into guide holes on each Side BL , BR . 4.
  • Page 13 Assembly Model # AXCWSH42-LGB Step 2 1. Attach Small Divider E to Middle Shelf D using three Allen Key Screws 2 through guide holes. 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 3. Align Cam Lock Pins with guide holes and attach Large Divider F to Middle Shelf D .
  • Page 14 Assembly Model # AXCWSH42-LGB Step 3 1. Attach Magnets 9 to Middle Shelf D using Phillips Screws 10 into pre-drilled holes on Middle Shelf D . 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. 3. Attach Large Divider F to Bottom Shelf C using two Allen Key Screws 2 through guide holes.
  • Page 15 Assembly Model # AXCWSH42-LGB Step 4 1. Align Cam Lock Pins with guide holes and attach Right Side BR to Shelves C , D . 2. Insert Cam Locks 3 into guided holes on Shelves C , D . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
  • Page 16 Assembly Model # AXCWSH42-LGB Step 5 Repeat Step 4 for Left Side BL .
  • Page 17 Assembly Model # AXCWSH42-LGB Step 6 1. Align Wood Dowels with guide holes and attach Top A to Sides BL , BR . 2. Use two Allen Key Bolts 1 to attach each Side BL , BR through guide holes. 3.
  • Page 18 Assembly Model # AXCWSH42-LGB Note: Step 7 The back of the TV frame does not have pre-drilled holes to attach the back panels. Warning Label 1. Attach Back Panels I , J to back frame by using Phillips Screws Round Head 6 . 2.
  • Page 19 Assembly Model # AXCWSH42-LGB Step 8 1. Attach Adjustable Hinges 11 to Doors H using Phillips Screws 12 into pre-drilled holes on Doors H . 2. Attach Adjustable Hinges 11 on Doors H to Sides BL ,BR using Phillips Screws 12 into guide holes on Sides BL ,BR .
  • Page 20 Assembly Model # AXCWSH42-LGB Step 9 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 9 using Phillips Screws 10 into pre-drilled holes on Doors H . 2. Use Phillips screwdriver to attach Handle 8 to Doors H through guide hole. 3.
  • Page 21: Important Note

    Assembly Model # AXCWSH42-LGB Step 10 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 22 Assembly Model # AXCWSH42-LGB Step 11 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 7 for each Cabinet Shelf G in desired location. 2. Two Shelf Supports 7 may be used on back top of each Cabinet Shelf G as a tipping restraint.
  • Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 12 NOTE: The screwdriver is not included in the hardware pack.
  • Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
