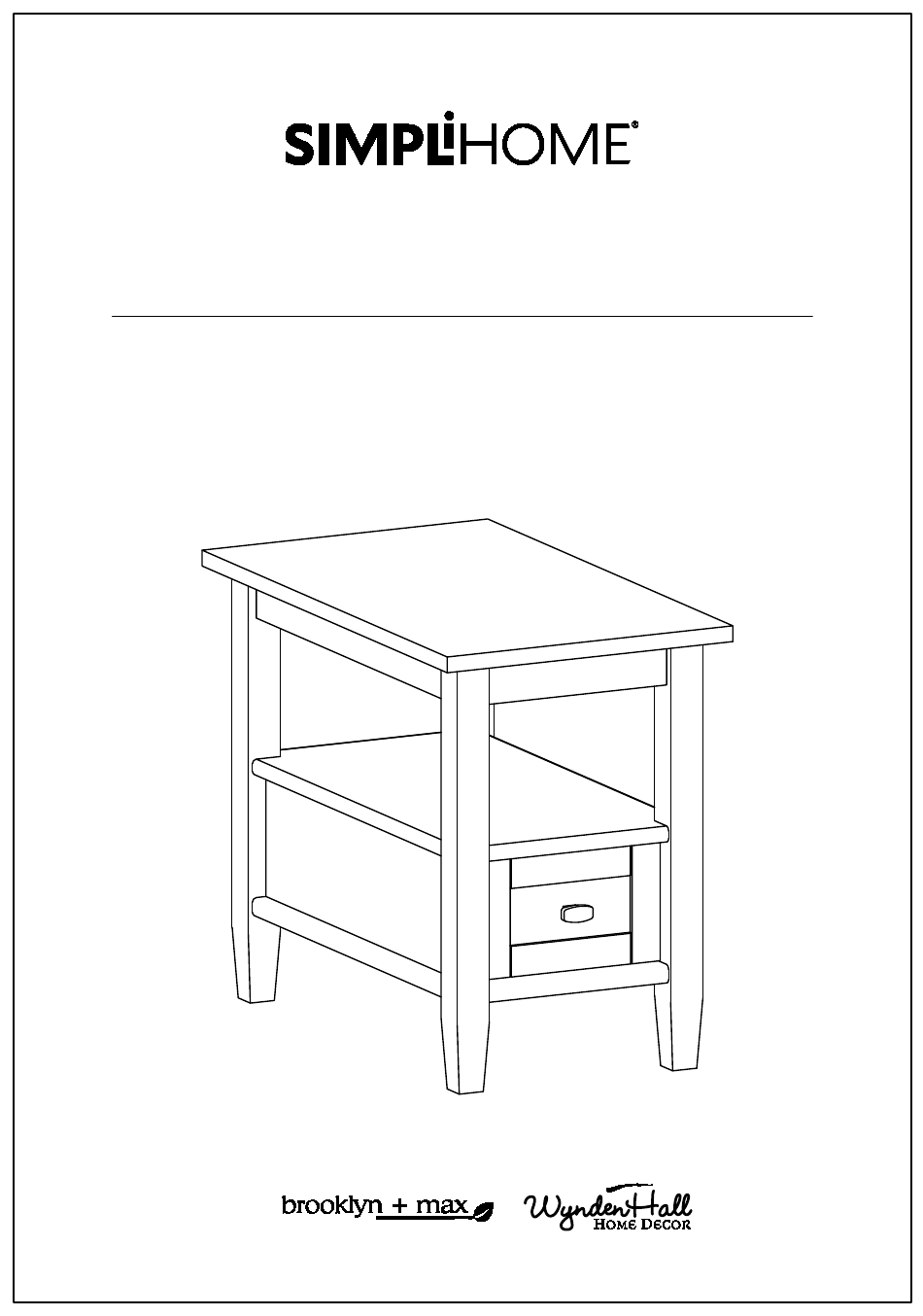

- Page 1 Warm Shaker / Norfolk / Lexington Narrow Side Table Model # AXCWSH011-GR...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCWSH011-GR Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF MIDDLE SHELF BACK PANEL QTY 1 QTY 1 QTY 1 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BACK DRAWER BOTTOM...
- Page 8 Pre-Assembly Information Model # AXCWSH011-GR Hardware Description WOOD DOWEL CAM LOCK PIN ALLEN KEY SCREW CAM LOCK Ø8 X 30mm M6 X 30mm QTY 10 SETS QTY 8 QTY 16 HANDLE ALLEN KEY M4 X 25 mm QTY 1 QTY 1 SETS Required - Flathead screwdriver Phillips screwdriver...
- Page 9 Components - Key Diagram Model # AXCWSH011-GR...
- Page 10 Assembly Model # AXCWSH011-GR Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes at back of Drawer Front F . 2. Use Phillips screwdriver secure Cam Lock Pins. Do not over-tighten. Step 2...
- Page 11 Assembly Model # AXCWSH011-GR Step 3 Step 4 1. Align Drawer Back I with Drawer Bottom J and press firmly into slot . 2. Attach Drawer Back using two Allen Key Screws 1 through drilled holes on each Drawer Side GL , GR . 3.
- Page 12 Assembly Model # AXCWSH011-GR Step 6 1. Attach Middle Shelf D to Right Side BR using three Allen Key Screws 1 through guide holes from Middle Shelf D to pre-drilled holes of Right Side BR . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten. Step 7 1.
- Page 13 Assembly Model # AXCWSH011-GR Step 9 1. Align Wood Dowels with guide holes and attach Back Panel E and Middle Shelf D to Left Side BL . 2. Use three Allen Key Screws 1 to attach Middle Shelf D through guide holes from Middle Shelf D to pre-drilled holes of Left Side BL .
- Page 14 Assembly Model # AXCWSH011-GR Step 10 1. Insert two Wood Dowels 3 into guide holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 11 1.
- Page 15 Assembly Model # AXCWSH011-GR Step 12 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Sides BL , BR to Top A . 2. Insert three Cam Locks 2 into guide holes on each Sides BL , BR . 3.
- Page 16 Assembly Model # AXCWSH011-GR Step 13 1. Use six Allen Key Screws 1 to attach Bottom Shelf C through guide holes from Bottom Shelf C to pre-drilled holes of each Side BL , BR . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten. Step 14 1.
