SIMPLIHOME brooklyn + max WyndenHall AXCWSH01A-LGB Manual

Warm shaker / norfolk / lexington lift top coffee table
Hide thumbs

Advertisement

Table of Contents

Warm Shaker / Norfolk / Lexington
Lift Top Coffee Table
Model # AXCWSH01A-LGB
TM
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCWSH01A-LGB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCWSH01A-LGB

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCWSH01A-LGB

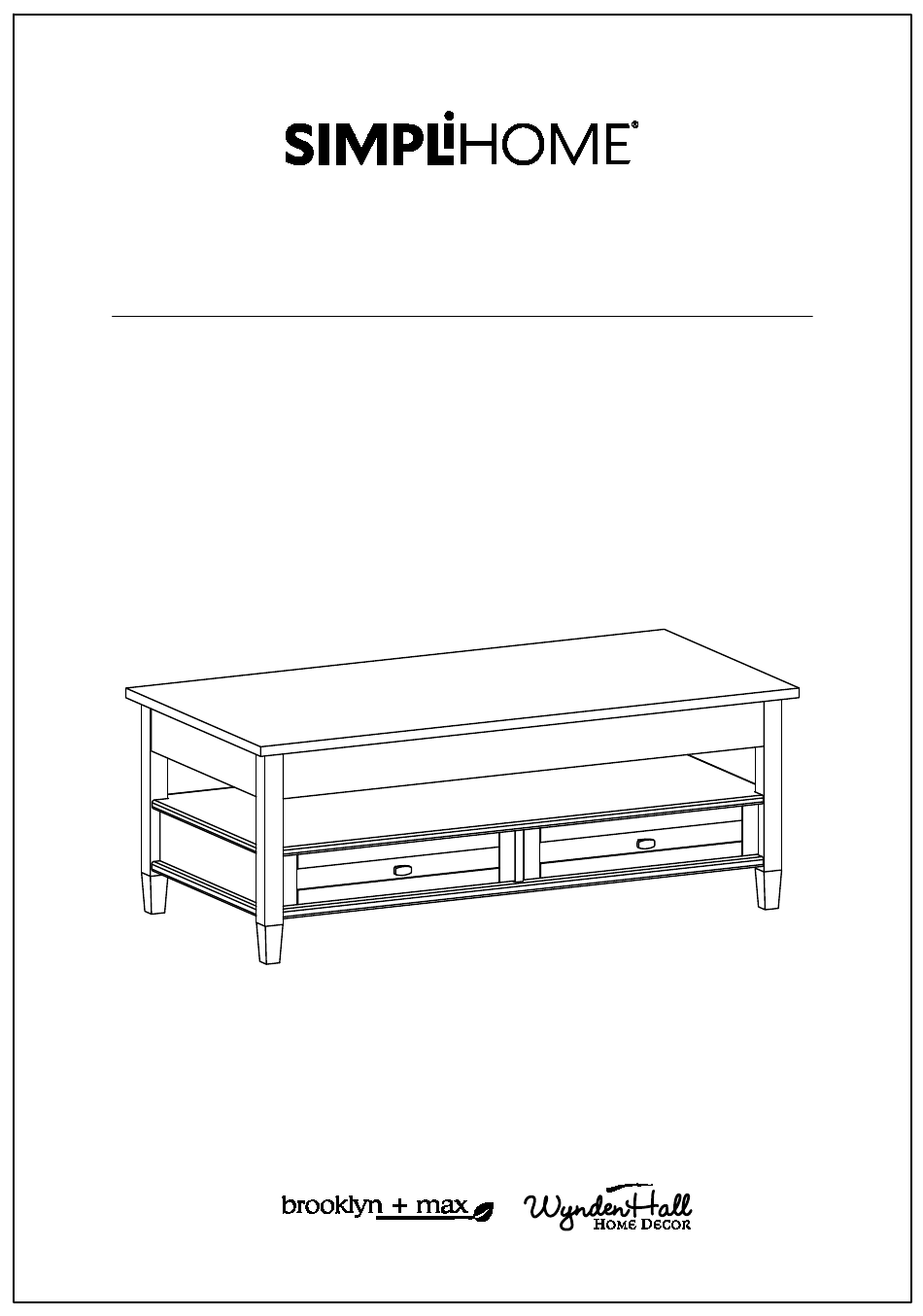

  • Page 1 Warm Shaker / Norfolk / Lexington Lift Top Coffee Table Model # AXCWSH01A-LGB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.

  • Page 7: Pre-Assembly Information

    Pre-Assembly Information Model # AXCWSH01A-LGB Part Description MIDDLE SHELF BOTTOM FRAME QTY 1 QTY 1 QTY 1 LEFT SIDE RIGHT SIDE BACK PANEL QTY 1 QTY 1 QTY 1 DIVIDER DRAWER FRONT LEFT DRAWER SIDE QTY 1 QTY 2 QTY 2 RIGHT DRAWER SIDE DRAWER BACK DRAWER BOTTOM...
  • Page 8 Pre-Assembly Information Model # AXCWSH01A-LGB Hardware Description CAM LOCK PIN ALLEN KEY SCREW CAM LOCK ALLEN KEY M6 X 30mm QTY 13 QTY 17 SETS QTY 1 ALLEN KEY BOLT HANDLE PHILLIPS SCREW ROUND HEAD M6 X 30mm M4 X 25mm M4 X 40mm QTY 6 QTY 4 SETS...
  • Page 9 Components - Key Diagram Model # AXCWSH01A-LGB...
  • Page 10 Assembly Model # AXCWSH01A-LGB Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front G . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides HL , HR to Drawer Front G .
  • Page 11 Assembly Model # AXCWSH01A-LGB Step 3 1. Slide Drawer Bottom J firmly into slots on Drawer Sides HL , HR and Drawer Front G . 2. Align Drawer Back I with Drawer Bottom J and press firmly into slot. 3. Attach Drawer Back using two Phillips Screw Round Head 6 and Plastic Cross Nuts 7 through guide holes on each Drawer Side HL , HR.
  • Page 12 Assembly Model # AXCWSH01A-LGB Step 4 1. Use Phillips screwdriver to attach Handle 5 to Drawer Front G . Repeat Step 1 - 4 for the second drawer.
  • Page 13 Assembly Model # AXCWSH01A-LGB Step 5 1. Attach nine Cam Lock Pins 2 into pre-drilled holes on Middle Shelf B . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert Wood Dowels 8 into guide holes on Divider F . 4.
  • Page 14 Assembly Model # AXCWSH01A-LGB Step 6 1. Align Cam Lock Pins with guide holes and attach Middle Frame B to Left Side DL . 2. Insert three Cam Locks 2 into guided holes on Left Side DL . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
  • Page 15 Assembly Model # AXCWSH01A-LGB Step 7 1. Repeat Steps 6 for Right Side DR .
  • Page 16 Assembly Model # AXCWSH01A-LGB Step 8 1. Use Phillips screwdriver to attach Handle 5 to Back panel E . 2. Align Cam Lock Pins with guide holes and attach Divider F to Middle Shelf B . 3. Insert three Cam Locks 2 into guided holes on Divider F . 4.
  • Page 17 Assembly Model # AXCWSH01A-LGB Step 9 1. Align Wood Dowels with guide holes and attach Bottom Frame C to Divider F . 2. Use nine Allen Key Screws 1 to attach Bottom Frame C through guide holes to pre-drilled holes of Divider F and Sides DL , DR . 3.
  • Page 18 Assembly Model # AXCWSH01A-LGB Step 10 1. Use six Allen Key Bolts 4 to attach Top A through guide holes to Sides DL , DR . 2. Use Allen Key 3 to tighten Bolts. Do not over-tighten.
  • Page 19 Assembly Model # AXCWSH01A-LGB Step 11 1. Insert assembled drawers into glides on assembled table.
