Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCWSH09-LGB

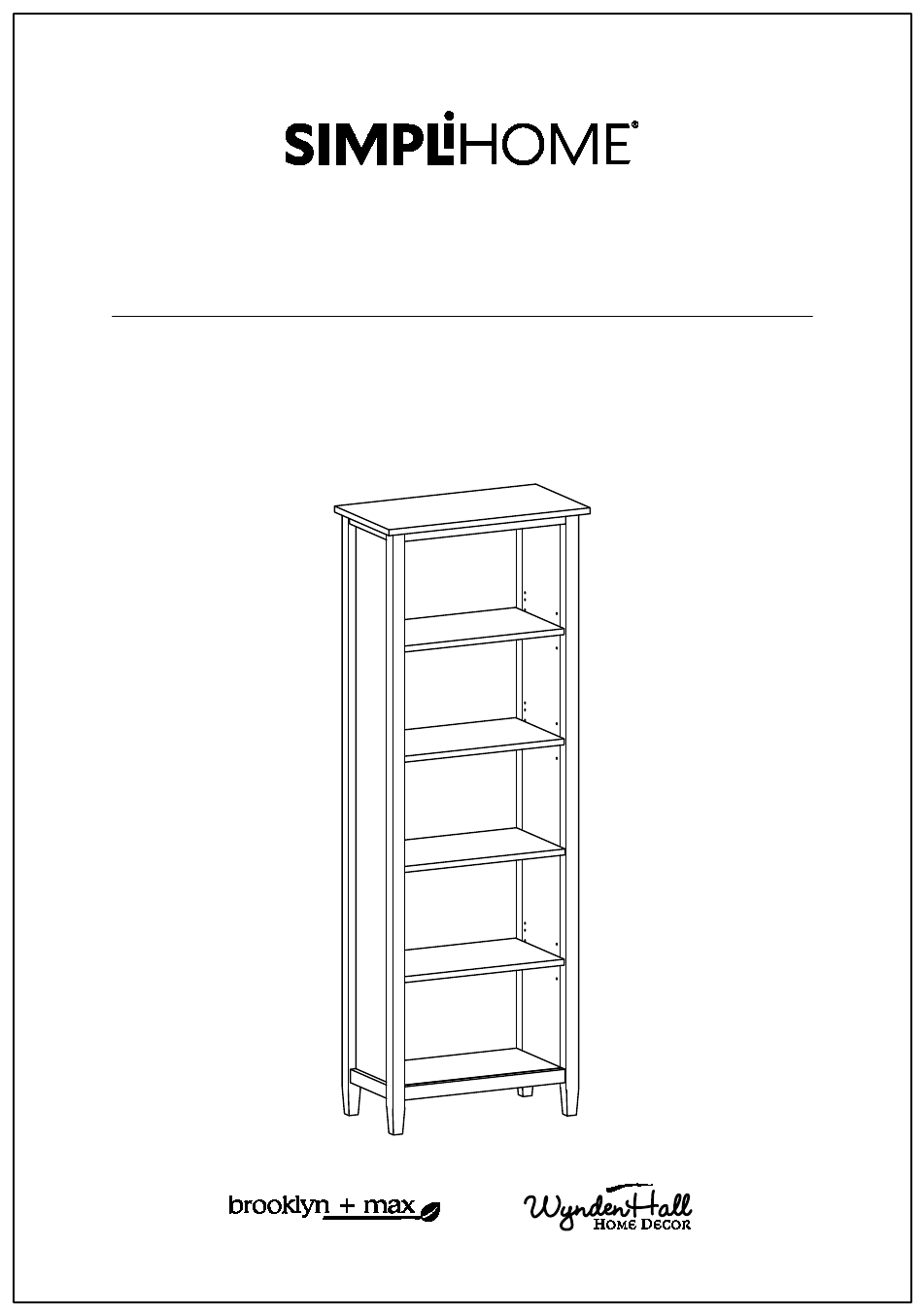

- Page 1 Warm Shaker / Norfolk / Lexington 5 Shelf Bookcase Model # AXCWSH09-LGB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCWSH09-LGB Part Description LEFT SIDE RIGHT SIDE BACK PANEL QTY 1 QTY 1 QTY 1 BOTTOM SHELF MIDDLE SHELF SHELF QTY 1 QTY 1 QTY 1 QTY 3...
- Page 8 Pre-Assembly Information Model # AXCWSH09-LGB Hardware Description WOOD DOWEL CAM LOCK PIN ALLEN KEY BOLT Ø8 X 30mm CAM LOCK M6 x 40 mm QTY 2 QTY 12 SETS QTY 4 PHILLIPS SCREW ROUND HEAD ALLEN KEY SHELF SUPPORT M4 X 15mm QTY 1 QTY 18 QTY 21...
- Page 9 Components - Key Diagram Model # AXCWSH09-LGB...
- Page 10 Assembly Model # AXCWSH09-LGB Step 1 1. Attach six Cam Lock Pins 3 into pre-drilled holes on each Side AL , AR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert one Wood Dowels 2 into guide holes on each Side AL , AR . 4.
- Page 11 Assembly Model # AXCWSH09-LGB Step 2 1. Align Cam Lock Pin with guide holes and attach Middle Shelf E and Bottom Shelf D to Left Side AL . 2. Insert three Cam Locks 3 into guide holes on each Shelf D , E . 3.
- Page 12 Assembly Model # AXCWSH09-LGB Step 3 1. Repeat Step 2 for Right Side AR .
- Page 13 Assembly Model # AXCWSH09-LGB Step 4 1. Align Wood Dowels with guide holes and attach Top C to Sides AL , AR . 2. Use two Allen Key Bolts 1 to attach each Side AL , AR through guide holes. 3.
- Page 14 Assembly Model # AXCWSH09-LGB Step 5 Note: Warning Label 1. Use Phillips Screws Round Head 5 to attach Back Panel B through guide holes to the back of Bookcase. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 15 Assembly Model # AXCWSH09-LGB shelf support Step 6 anti - tipping shelf level 1 shelf level 2 shelf level 3 1. Use four Shelf Supports 6 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 6 may be used on back top of each Cabinet Shelf F as a tipping restraint.
- Page 16 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 7 NOTE: The screwdriver is not included in the hardware pack.
- Page 17 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
