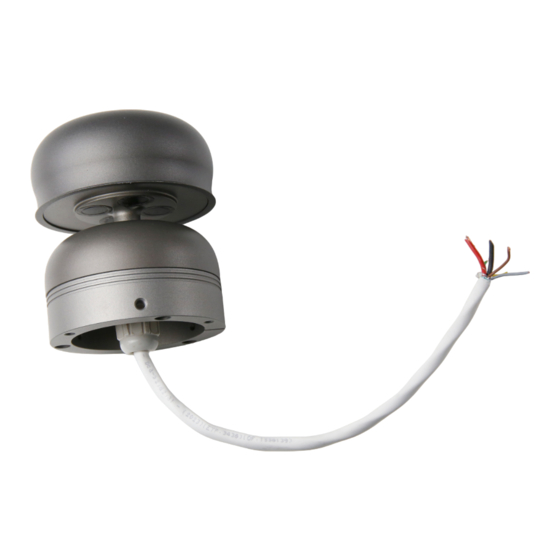

- Page 1 . c a l y p s o i n s t r u m e n t s . c o m CALYPSO INSTRUMENTS ULTRA-LOW-POWER ULTRASONIC SUMMIT HEATED WIND METER User manual ULTRASONIC Portable User manual 0809 English version 3.0...
- Page 2 If you want to know more about our new ULP SUMMIT HEATED wind meter, please keep reading or visit our website www.calypsoinstru- ments.com...
-
Page 3: Table Of Contents
Index Product Overview Package Content Communication Protocols Modbus RTU RS485 (Further protocols under request) Technical Specifications Dimensions Weight Power Sensors Wind Information Easy Mount Mounting Accessories Product Material & Quality Control Firmware General Information General Recommendations Maintenance and Repair Warranty ULP SUMMIT HEATED User Manual 04/09... -
Page 4: Product Overview
1 Product Overview Thank you for choosing the ULP SUMMIT HEATED wind meter from Calypso Instru- ments. This is the first model or our generation II, representing an important technology breakthrough condensing an extensive R+D investment: · Both shape and firmware have been enhanced for an improved rain performance. This is key for static applications such as weather stations. -
Page 5: Communication Protocols
VCC (Power +) 3.1.2 Modbus Configuration The ULP SUMMIT HEATED can be set up by using a special configuration app made by Calypso Instruments. In order to use the app, you should download the configurator from our website at www.calypsoinstruments.com. - Page 6 Modbus Configuration Setup (ULP) The ULP SUMMIT HEATED can be set up by using a special configuration app made by Calypso Instruments. In order to use the app, you should download the configurator from our website at www.calypsoinstruments.com. For more information, please watch the following video.
- Page 7 Modbus Configuration Setup (II) 6. Wait to complete configuration and when the system advises that it is finished, disconnect the USB and cables. 7. Your unit is now configured. ULP SUMMIT HEATED User Manual...
-
Page 8: Rs485
3.1.3 Modbus Registers DIR_BASE_LA1 30001 SYSTEM_STATUS DIR_BASE_LA1 + 200 WIND_SPEED DIR_BASE_LA1 + 201 WIND_DIRECTION DIR_BASE_LA1 + 202 TWO_MIN_AVG_WS DIR_BASE_LA1 + 203 TWO_MIN_AVG_WD DIR_BASE_LA1 + 204 TEN_MIN_AVG_WS DIR_BASE_LA1 + 205 TEN_MIN_AVG_WD DIR_BASE_LA1 + 206 WIND_GUST_SPEED DIR_BASE_LA1 + 207 WIND_GUST_DIR DIR_BASE_LA1 + 208 FIVE_MIN_AVG_WS DIR_BASE_LA1 + 210 FIVE_MIN_AVG_WD DIR_BASE_LA1 + 211 FIVE_WIND_GUST_SPEED DIR_BASE_LA1 + 212... - Page 9 RS485 Configuration Setup for ULP (just wind meter, NO HEATING) The ULP SUMMIT HEATED can be set up by using a special configuration app made by Calypso Instruments. In order to use the app, you should download the configurator from our website at www.calypsoinstruments.com.
- Page 10 RS485 Configuration Setup (II) 6. Wait to complete configuration and when the system advises that it is finished, disconnect the USB and cables. 7. Your unit is now configured. ULP SUMMIT HEATED User Manual...
- Page 11 3.2.3 RS485 Registers MWV Wind Speed and Angle 1 2 3 4 5 | | | | | $--MWV,x.x,a,x.x,a*hh 1) Wind Angle, 0 to 360 degrees 2) Reference, R = Relative, T = True 3) Wind Speed 4) Wind Speed Units, K/M/N 5) Status, A = Data Valid 6) Checksum By default, the communication parameters are 38400bps, 8N1.
-
Page 12: Technical Specifications
4. Technical specifications The ULP has the following technical specifications: 4.1. Dimensions · Diameter: 70 mm (2.76 in.) · Height: 83 mm (3.27 in.) 4.2. Weight 418 grams (14.7 ounces) 3.3 - 18 VDC (Wind Meter) 4.3 Power 12 VDC (Heating) 4.5 Wind Information ·... -
Page 13: Easy Mount
4. Technical specifications (II) - 3 x M4 lateral female tripod thread 4.6. Easy mount - 3 x M4 base female tripod thread UNC 1/4” - 20 It can be mounted either on a plate (inferior screws) or on a tube (lateral screws). 4.7. -
Page 14: Product Material & Quality Control
4. Technical specifications (III) 4.8. Firmware Upgradable via RS485, MODBUS 4.9 Product Material The ULP SUMMIT HEATED is engineered to be a robust device with a minimal downtime. This new shape has been designed for optimum water spillage which implies lower probability of ice formation. -
Page 15: General Information
Warranty is void in case of non-following the instructions of use, repair or maintenance without written authorisation. Any wrongful use by the user will not incur any responsibility on part of Calypso Instruments; therefore, any harm caused to the ULP by a mistake will not be covered by the waranty. Using assembly elements different from those delivered with the product will void the waranty. - Page 16 MODBUS Sensor Data Requests Measurements all have a resolution of 0.1 but are reported as 10*. 8.2 m/s is returned as a value 82. The user must /10 in order to reinsert the decimal precision. Address Register Access Response Data Description Type Range...
- Page 17 Ultra-Low-Power Ultrasonic wind meter SUMMIT HEATED (ULP SUMMIT HEATED) User manual English version 3.0...
