Summary of Contents for Calypso Instruments ULP STD

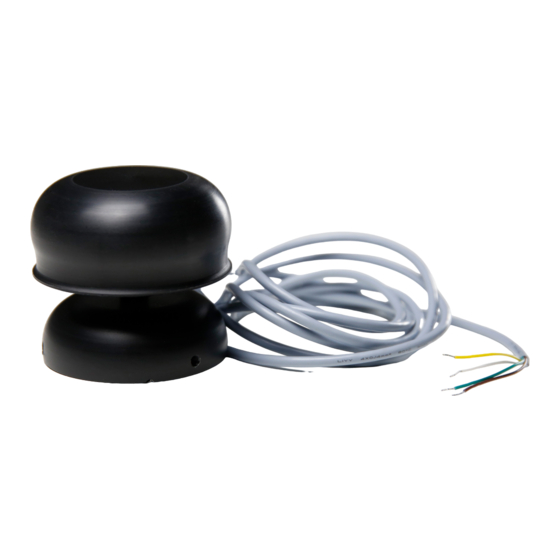

- Page 1 . c a l y p s o i n s t r u m e n t s . c o m CALYPSO INSTRUMENTS ULTRA-LOW-POWER ULTRASONIC STD (ULP STD) WIND METER User manual - SDI 12 Protocol ULTRASONIC Portable...
- Page 2 If you want to know more about our new ULP STD wind meter, please keep reading or visit our website www.calypsoinstruments.com...
-
Page 3: Table Of Contents
Index Product Overview Package Content Communication Protocols SDI 12 Technical Specifications Dimensions Weight Power Sensors Wind Information Easy Mount Mounting Accessories Product Material & Quality Control Firmware General Information General Recommendations Maintenance and Repair Warranty ULP STD User Manual 04/09... -
Page 4: Product Overview
1 Product Overview Thank you for choosing the ULP STD wind meter from Calypso Instruments. This is the first model or our generation II, representing an important technology breakthrough condensing an extensive R+D investment: · Both shape and firmware have been enhanced for an improved rain performance. This is key for static applications such as weather stations. -
Page 5: Communication Protocols
10 min wind speed average avg_direction2: 10 min wind angle average tion10+gust10<CR><LF> gust2: 10 min wind speed gust Example: Tx -> 0R0! Rx -> 0+1.0+90+1.1+89+2.2<CR><LF> addr: 0, curr_speed: 1.0 m/s, curr_direction: 90º, avg_speed: 1.1m/s, avg_direction: 89º, gust: 2.2m/s ULP STD User Manual... -
Page 6: Technical Specifications
Range: 0.5 to 45 m/s (1.12 to 100 mph) or 0.5 to 25m/s (1.12 to 56 mph) Accuracy: ±0.1 m/s at 10m/s (0.22 at 22.4 mph) Threshold: 0.5 m/s (1.12 mph) Wind direction Range: 0 - 359º Accuracy: ±1º ULP STD User Manual... -
Page 7: Easy Mount
4.7. Mounting accessories A wide range of accessories can be used with the device. The ULP STD can be mounted on a flat service and screwed on to different sizes of poles. It can also be used with an adaptor for poles of 39 mm. -
Page 8: Product Material & Quality Control
4.8. Firmware 4.9 Product Material The ULP STD is engineered to be a robust device with minimal downtime. This new shape has been designed for optimum water spillage which implies lower probability of ice formation. Frost might affect measurements if it blocks the wave path. -
Page 9: General Information
Warranty is void in case of non-following the instructions of use, repair or maintenance without written authorisation. Any wrongful use by the user will not incur any responsibility on part of Calypso Instruments; therefore, any harm caused to the ULP by a mistake will not be covered by the waranty. Using assembly elements different from those delivered with the product will void the waranty. - Page 10 Ultra-Low-Power Ultrasonic wind meter STD (ULP STD) User manual English version 3.0 30.05.23...
