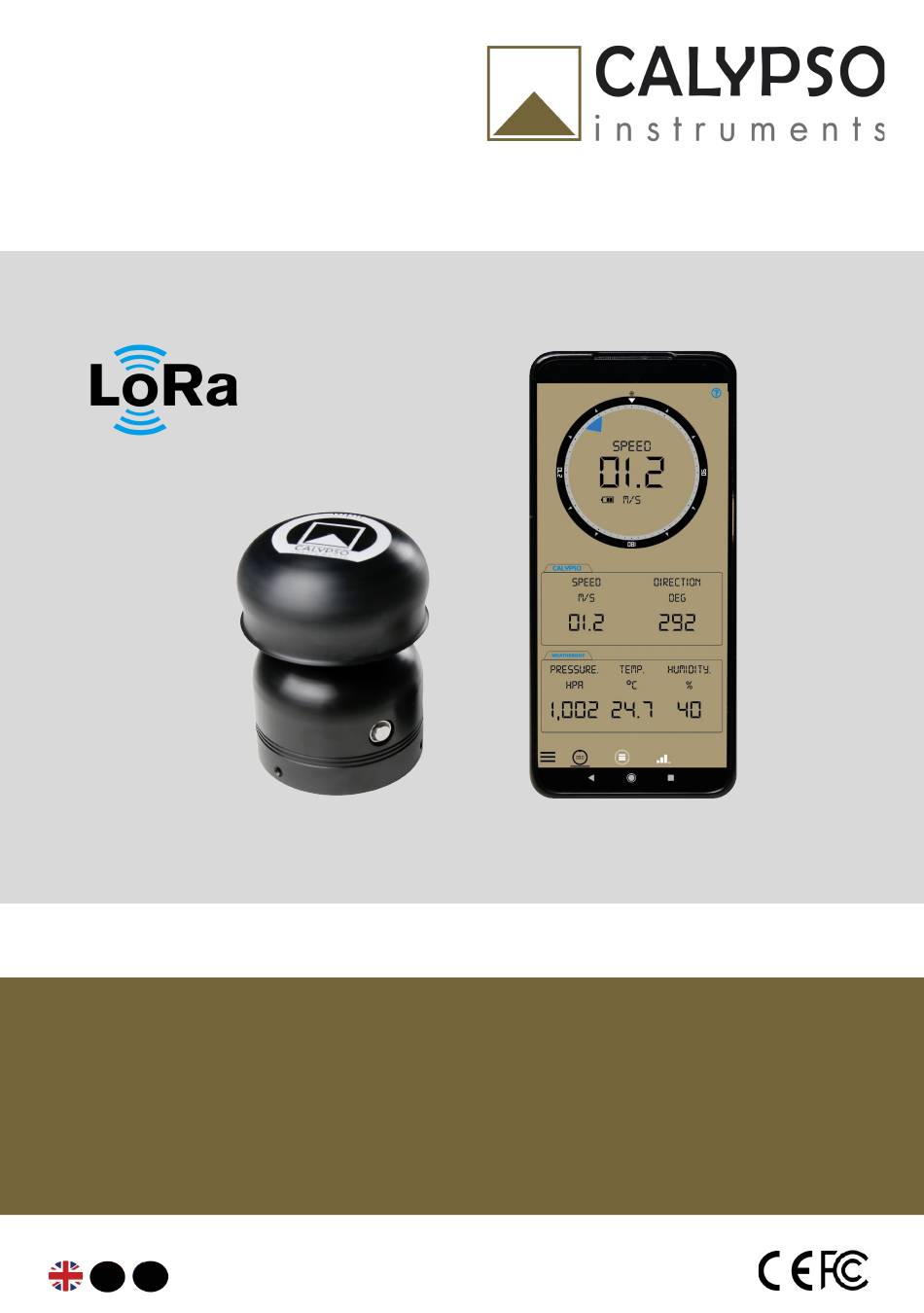

- Page 1 . c a l y p s o i n s t r u m e n t s . c o m CALYPSO Ultra Low Power LoRa WIND METER User manual ULTRASONIC Portable 0809 English version 1.0 User manual 22.11.2024...
- Page 2 ACCURATE WIND SPEED & DIRECTION If you want to know more about our new Ultra Low Power LoRa wind meter, please keep reading or visit our website www.calypsoinstruments.com...
- Page 3 Sensors Bluetooth Wind Information Protection Grade Easy Mount Firmware Product Material & Quality Control Installation General Information General Recommendations Maintenance and Repair Warranty Additional Information General Features and Product Description Usage Example Ultra Low Power LoRa Wind Meter User manual...

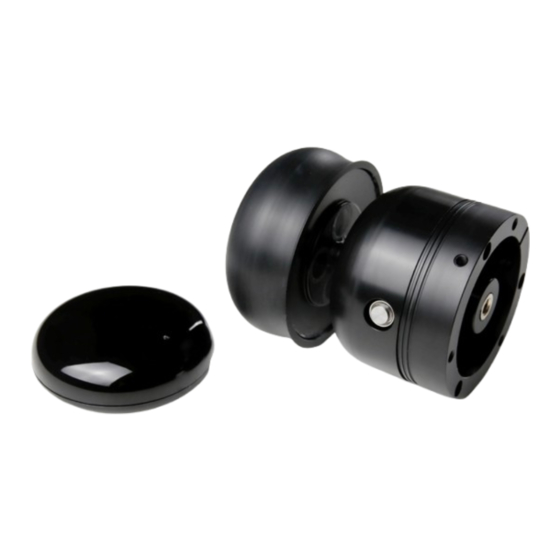

- Page 4 1. Product overview Thank you for choosing the Ultra Low Power LoRa wind meter from Calypso Instru- ments. The Ultra Low Power LoRa Instrument is a wireless, Bluetooth Low Energy (BLE) and battery-powered, compact ultrasonic anemometer, easy to install, simple to use and compatible with IOS, Android and Garmin watches.
- Page 5 3. Technical specifications The Ultra Low Power LoRa has the following technical specifications: Dimensions· Diameter 70 mm (2.76 in.) · Height: 95 mm (3.74 in.) 3.2 Weight ·213 grams (7.1 oz.) 3.3 Power 3.3- 5 DCV 50 Hours Active use...
- Page 6 3.9 Firmware 3.10 Product Material The Ultra Low Power LoRa is engineered to be a robust device with a minimal downtime. Nylon polymer with excellent resistance to UV radiation, mechanical fatigue while being lightweight. It’s ideal for electrical isolation, protects internal hardware to ensure reliable measurements.
- Page 7 4.2. Installing the App and testing the unit Follow the next steps: 1. Make sure your device is BLE compatible*. · Ultra Low Power LoRa works with Android 4.3 and beyond or iOS devices (4s, iPad2 or beyond). 2. Download and install Anemotracker App on your device from Google Play or Apple Store.
- Page 8 1. Make sure BT (Bluetooth) is enabled on your smartphone, Tablet or PC. 2. Make sure Ultra Low Power LoRa is not in Off mode. It is in Off mode when the unit does not have sufficient battery level. There will be no battery level shown when trying to connect to the device in Anemotracker App.
- Page 9 5. General information 5.1. General recommendations Regarding mounting the unit, align the mark of the Ultra Low Power LoRa to the place where you are aiming. Make sure to install the sensor in a location free from anything that obstructs the flow of wind to the sensors within a 2 meter radius.
- Page 10 To assess the viability of a wind farm on a specific site, wind profiles need to be recorded over several months. Deploying multiple ULP LoRa units allows for extensive data collection across multiple points without costly, intrusive wired infrastructure, ideal if the location proves unsuitable for wind farming. Ultra Low Power LoRa Wind Meter User manual...
- Page 11 Output Protocol: LoRa P2P (up to 3 km direct line of sight), Bluetooth Low Energy 5.1 (up to 30 m direct line of sight). Dimensions: Diameter - mm, Height - mm, Weight - g. Operating Conditions: IP65 certified, temperature range -15 to 60°C, relative humidity 0- 100%. Ultra Low Power LoRa Wind Meter User manual...
- Page 12 4.When the devices are reactivated, they blink in sync. By connecting to the receiver or transmitter via Bluetooth on Anemotracker, wind data can be viewed in real-time, as if using a Mini. Ultra Low Power LoRa Wind Meter User manual...
- Page 13 Ultra Low Power LoRa Wind Meter User manual English version 1.0 22/11/2024...
