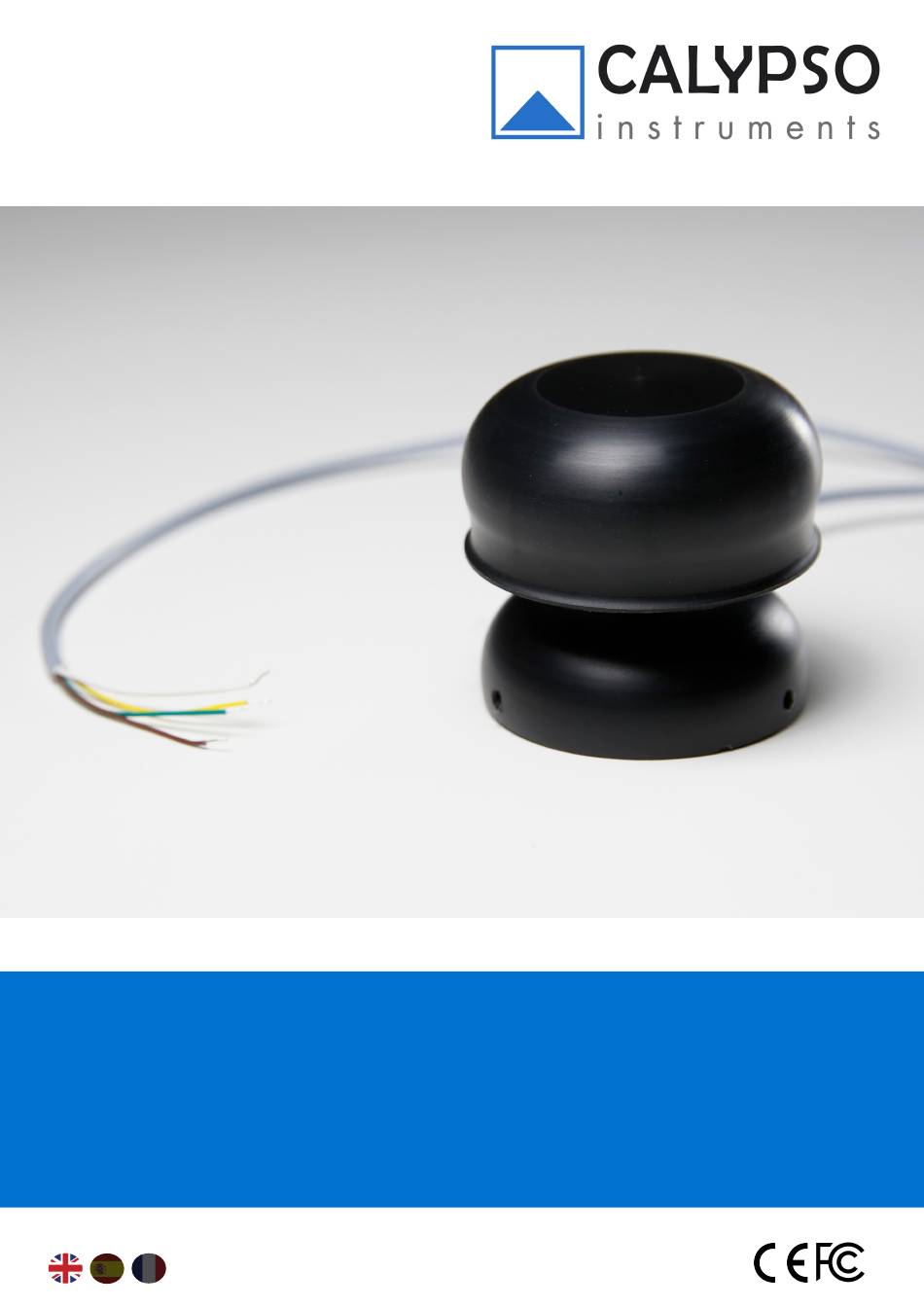

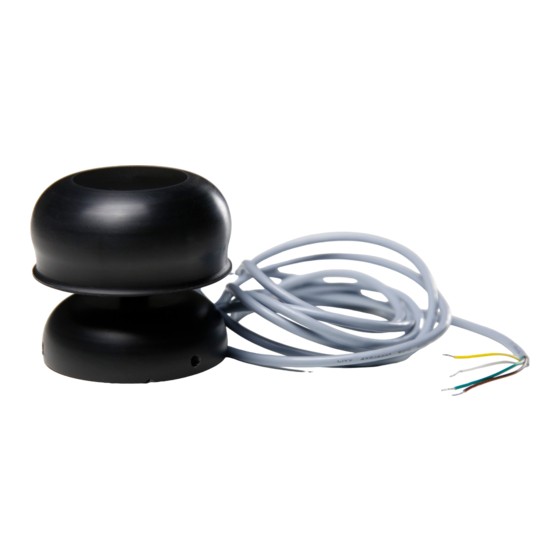

- Page 1 . c a l y p s o i n s t r u m e n t s . c o m CALYPSO INSTRUMENTS ULTRA-LOW-POWER ULTRASONIC STD (ULP STD) WIND METER User manual - Analog 4-20mA Protocol ULTRASONIC Portable...
- Page 2 If you want to know more about our new ULP STD wind meter, please keep reading or visit our website www.calypsoinstruments.com...
-
Page 3: Table Of Contents
Product Overview Package Content Communication Protocols Analog 4-20 mA Technical Specifications Dimensions Weight Power Sensors Wind Information Easy Mount Mounting Accessories Product Material & Quality Control Firmware General Information General Recommendations Maintenance and Repair Warranty ULP STD User Manual 04/09... -
Page 4: Product Overview
1 Product Overview Thank you for choosing the ULP STD wind meter from Calypso Instruments. This is the first model or our generation II, representing an important technology breakthrough condensing an extensive R+D investment: · Both shape and firmware have been enhanced for an improved rain performance. This is key for static applications such as weather stations. -
Page 5: Communication Protocols
2. After the connection of this channel, you have 10 seconds for the connection of CHANNEL 1. 3. After 10 seconds have elapsed and both channels have been connected, the device will start normal 4-20mA operation on both channels (the current will progressively decrease until it reaches the imposed setting). ULP STD User Manual... - Page 6 Tunnel Mode 12 mA - 4mA 0 - 180º Decreases to 4mA as speed increases 12mA ---------- At wind 0 m/s the resting state 12 mA - 20mA 181º - 359º. Increases to 20mA as speed increases ULP STD User Manual...
- Page 7 Once you get 4-20mA press on the box and you will be taken to the loading screen. 2.) Loading page Once the equipment has been selected, the loading screen will appear. In case it does not enter. Try again. ULP STD User Manual...
- Page 8 Once inside the configuration screen, both channels will appear, if it is the first time that both channels are configured, they will appear blank. 4.) Configuration screen We select in both lists how we want to configure each channel independently. ULP STD User Manual...
- Page 9 NOTE: After configuring to load the configuration into the unit, it is necessary to disconnect the unit from the power supply, wait a few seconds and then reconnect it. The equipment will automatically load the imposed values in the configuration strip. ULP STD User Manual...
-
Page 10: Technical Specifications
Range: 0.5 to 45 m/s (1.12 to 100 mph) or 0.5 to 25m/s (1.12 to 56 mph) Accuracy: ±0.1 m/s at 10m/s (0.22 at 22.4 mph) Threshold: 0.5 m/s (1.12 mph) Wind direction Range: 0 - 359º Accuracy: ±1º ULP STD User Manual... -
Page 11: Easy Mount
4.7. Mounting accessories A wide range of accessories can be used with the device. The ULP STD can be mounted on a flat service and screwed on to different sizes of poles. It can also be used with an adaptor for poles of 39 mm. -
Page 12: Product Material & Quality Control
4.8. Firmware 4.9 Product Material The ULP STD is engineered to be a robust device with minimal downtime. This new shape has been designed for optimum water spillage which implies lower probability of ice formation. Frost might affect measurements if it blocks the wave path. -
Page 13: General Information
Warranty is void in case of non-following the instructions of use, repair or maintenance without written authorisation. Any wrongful use by the user will not incur any responsibility on part of Calypso Instruments; therefore, any harm caused to the ULP by a mistake will not be covered by the waranty. Using assembly elements different from those delivered with the product will void the waranty. - Page 14 Ultra-Low-Power Ultrasonic wind meter STD (ULP STD) User manual English version 3.0 30.05.23...
