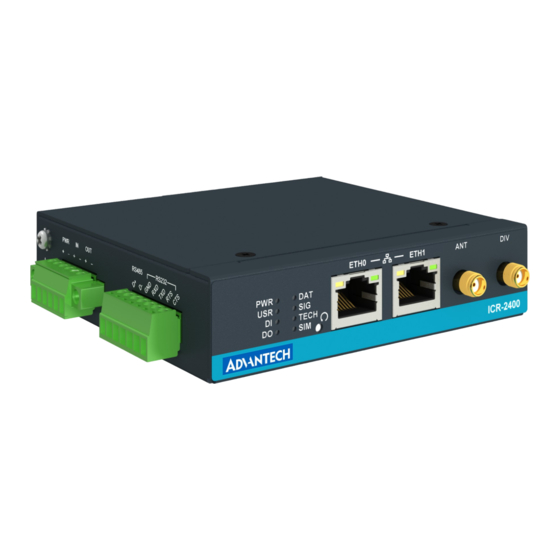

- Page 1 Start Guide ICR-2031, ICR-2431, ICR-2432, ICR-2531, ICR-2631...
- Page 2 Start Guide Safety Instructions Please take care to following instructions: Use the router in compliance with national and international law and in compliance with any special or additional restrictions regulating the use of the router in various applica- tions and environments. To avoid possible injury and/or damage to the device, observe the relevant provisions and standards.
- Page 3 flash drive medium. If you are interested in obtaining the source, please get in touch with us at: techSupport@advantech-bb.com Modifications and debugging of LGPL-linked executables: The device manufacturer hereby grants the right to use debugging techniques (e.g., de- compilation) and making customer modifications of any executable linked with an LGPL library...
- Page 4 Start Guide First Use Before applying power to the router, connect all the components you need for your appli- cations. Do not run the router without an antenna connected to the main antenna connector. The energy from the transmission is effectively reflected by the open end and can damage the equipment.
- Page 5 Start Guide 2. SIM Card The SIM card reader for one or two, depending on the product type, micro-SIM cards (3FF with the size of 15.0 x 12.0 x 0.76 mm) is located on the router’s right panel under a metal cover.
- Page 6 Start Guide 3. Power The router requires an external DC power supply. The DC voltage required is between +9 and +48 V DC. The router has built-in protection against reverse polarity without signaling. Connect the power supply cable to the PWR connector on the left panel of the router (see the figure below) and tighten the locking screws.
- Page 7 Start Guide Configuration 1. Configuring the Device Using the Web Browser You can use a web browser running on your PC to access the router web interface. Here you can perform router monitoring, configuration, and administration. First, connect the PC to the default LAN interface described in the Ethernet chapter.
- Page 8 We, Advantech Czech s.r.o., declare that the radio equipment type ICR-2031, ICR- 2431, ICR-2531 and ICR-2631 comply with Directive Radio Equipment Regulations 2017 (S.I. 2017 No. 1206). We, Advantech Czech s.r.o., declare that the radio equipment type ICR- 2031, ICR-2431, ICR-2432, ICR-2531 and ICR-2631 comply with Directive 2014/53/EU.
