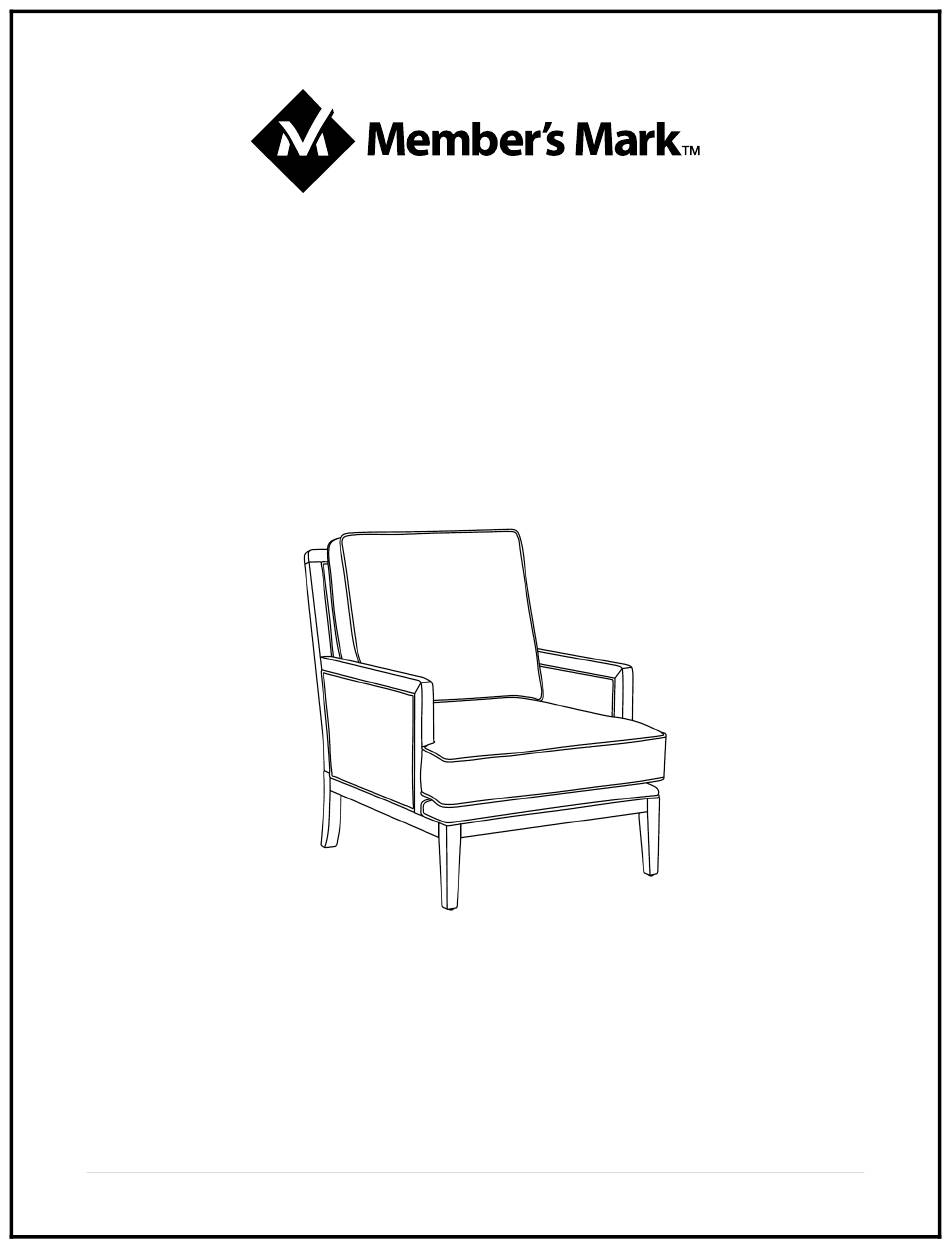

- Page 1 Assembly Instructions & User’s Manual Savannah Accent Chair Item Number: 980297334 Model Number: 1506S-7698BS-48 Customer Assistance : 1-800-379-9773 (spare/replacement parts) THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ..........................3 Important Safety Information ......................3 Before Assembly ..........................3 Care & Use ............................3 Product Information ........................... 4 Components ............................4 Hardware .............................. 4 Tools ..............................5 Step 1 ..............................5 Step 2 ..............................6 Correct leg position ........................... -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Product Information
Product Information Dimensions: 29.5” x 38” x 36.5” (74.9cm x 96.5cm x 92.7cm) Weight Capacity ：Supports up to 300 lbs. (136 kg.) Components Chair Front leg Left back leg Qty:1 Qty: 2 Qty: 1 Right back leg Back cushion Seat cushion Qty: 1 Qty: 1 Qty: 1... -
Page 5: Tools
Tools ’’x4’’L Hex Head Wrench (J) Qty:1 Step 1 ， Open the non-woven cover Remove all parts from the carton and separate them into part number groups as indicated in the parts list. Place the Chair (A) upside down on a clean surface. -
Page 6: Step 2
Step 2 Insert front legs (B) and back legs (C& D) into the coordinating holes marked on the base of the chair as shown. Attach legs to chair using screws(G) and washers(H&I). Tighten all screws securely using hex head wrench (J). After tightening all screws securely, close the non-woven cover as shown. -
Page 7: Correct Leg Position
CORRECT LEG POSITION Correct side view Correct back view Incorrect side view Incorrect side view Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 8: Step 3
Step 3 Turn the chair upright. Place back cushion (E) and seat cushion (F) on the chair. Confirm the leg position is correct as shown in the drawing. Chair is now ready for use. Warning • Don't install the front legs(B) and back legs(C&D) upside down. •... -
Page 9: Troubleshooting
Troubleshooting Problem Possible Cause Prevention / Solution Tilting / Leaning Surface not level Place the chair on the level surface. Shaking Screw is not tightened Check and tighten the screw Care & Use Instructions 1. Do not stand on the seat cushion. 2. - Page 10 NOTE: Please consider recycling all applicable packaging material. Distributed by Sam’s West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in Vietnam Need Assistance? Visit us at: samsclub.com/membersmarkhelp 10 | P a g e...
