SIGNIFY Lightolier LyteSpan BoldFlood Quick Manual

Signify Classified - Internal
Read and understand these instructions before installing luminaire (fixture).
This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding. Allow fixture to cool
before handling. Retain these instructions for maintenance reference.
INSTRUCTIONS FOR INSTALLING AND OPERATING LWW20 AND LWW40 SERIES TRACK HEAD.
- Compatible with ceiling and wall mounted track. Sold separately.
- Compatible with Monopoint. Sold separately.
- Compatible with certain types of dimmers. See specification sheets for compatible dimmers.
- Compatible with 81LV4 Louver and 81VZ4 Visor.
- Not compatible with Pro-Spec track.
- CAUTION: HOT SURFACE. Keep away from curtains and any other combustible materials.
- CAUTION: Turn power off and allow fixture to cool before handling.
- CAUTION: No consumer serviceable parts. Contact factory if service is required.
- CAUTION: For use in dry locations only.

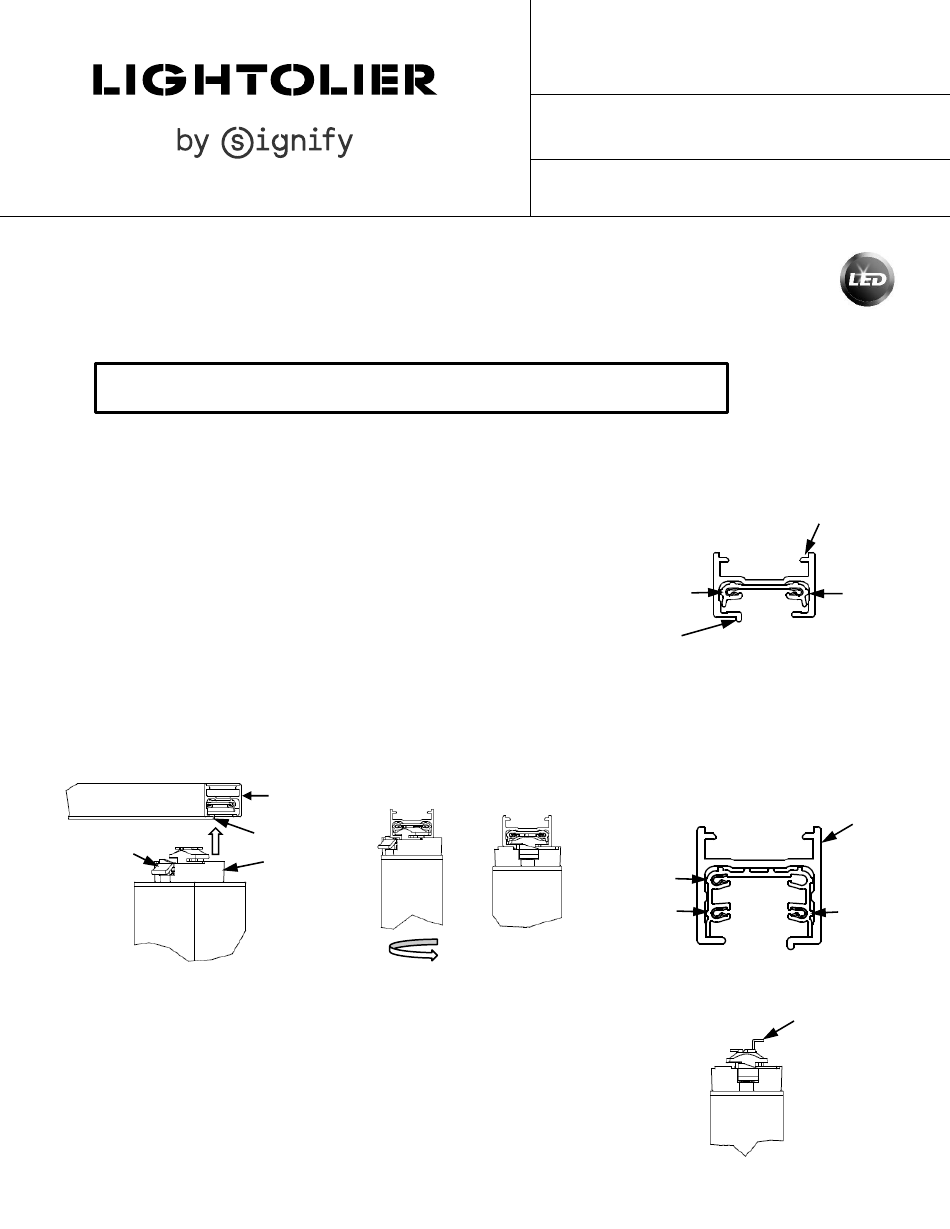

INSTRUCTIONS FOR ATTACHING LUMINAIRE TO TRACK.

1. Turn off power to TRACK.
A. BASIC/RADIUS TRACK Fig. 1
1. Insert into LYTESPAN TRACK (Fig. 2). LOCKING LEVER must be on the same side of track as BEAD.
2. Rotate ADAPTER 90˚ clockwise with the help of the DRIVER HOUSING until the LOCKING LEVER snaps and
locks in place (Fig. 3).
3. To Remove: depress LOCKING LEVER, then rotate ADAPTER 90˚ counterclockwise.
LOCKING
LEVER
Fig. 2
B. ADVENT TRACK Fig. 5
TO POWER ON LOWER CIRCUIT
1. Ensure CONTACTS are at the same level in place for lower circuit.
2. Follow instructions above for installing into track.
TO POWER ON UPPER CIRCUIT
1. To convert attachment ADAPTER for upper circuit, raise BRASS CONTACT to high position by
pulling BRASS CONTACT as high as stop permits and clicking into place. Fig 6.
2. Follow instructions above for installing into track.
1/28/2019 page 1 www.lightolier.com
FOR USE WITH LIGHTOLIER LYTESPAN TRACK SYSTEMS ONLY.
TRACK
BEAD
ADAPTER
Track Lighting
LyteSpan BoldFlood
LWW Series
Fig. 4
Fig. 3
NEUTRAL
CIRCUIT
Fig. 1
BEAD
BASIC/RADIUS TRACK
UPPER
CIRCUIT
LOWER
CIRCUIT
Fig. 5
ADVENT TRACK
MOVABLE BRASS
CONTACT
Fig. 6
TRACK
HOT
CIRCUIT
TRACK
NEUTRAL
CIRCUIT
