    Issue 1.0 04/01/00 Simrad Navico Ltd Star Lane, Margate, Kent CT9 4NP, UK Telephone +44 (0) 1843 290290 Facsimile +44 (0) 1843 290471 E-Mail : sales@simrad-navico.co.uk CONTENTS INTRODUCTION 1.1 Electronics PCBs 1.2 Mechanical Components OPERATION ASSEMBLY INSTRUCTIONS 3.1 Rotary Drive 3.2 Control Unit 3.3 Junction Box 3.4 Heading Sender...

  • Page 3: Introduction

    AP12 & AP14R Powerpilot Introduction...

  • Page 4: Electronics Pcbs

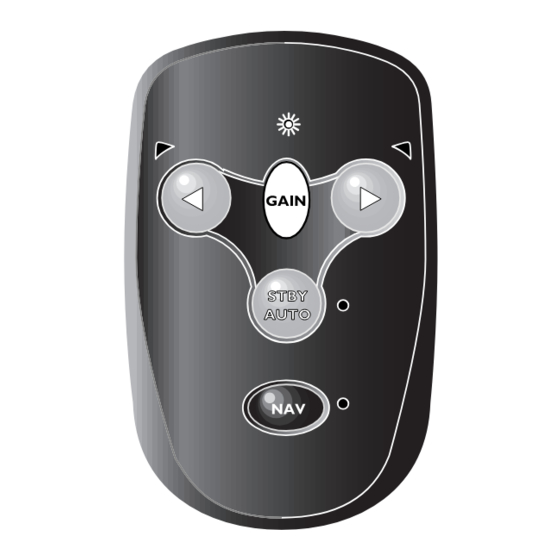

    Issue 1.0 16/12/99 AP12R AND AP14R POWERPILOT The AP12R and AP14R inboard autopilots combine highly sophisticated electronics with advanced software and powerful drives to provide accurate and reliable steering performance under a variety of different conditions with minimal current consumption. AP12R - is suitable for push-pull cable steered power boats up to 9m (30 ft) in length with a dashboard mounted control head ((SFC12).
  • Page 5 AP12 & AP14R Powerpilot Calibration...
  • Page 6 Issue 1.0 16/12/99 CALIBRATING THE AP12R AND AP14R Excerpts from AP12 operation manual - Parameter Adjustment The AP12 uses highly advanced steering software, which constantly assesses how the boat is being affected by the sea conditions. By adjusting its own performance, the pilot is able to maintain the most accurate course for these conditions, just as a human pilot would.
  • Page 7 Issue 1.0 16/12/99 Excerpts from AP12 operation manual ctd - 6.2 Compass Orientation The SHS12 compass can be mounted pointing four different ways - 0¼, 90¼, 180¼ or 270¼ to the bow (Fig 6.1). ¥ The factory preset is 0¼ (pointing forward). If the compass is mounted pointing any other way, this must be programmed in before using the pilot.
  • Page 8 Issue 1.0 16/12/99 Excerpts from AP12 operation manual ctd - 6.4 Seatrial / Compass Calibration Before using the AP12, the compass must be calibrated to compensate for any magnetic deviation caused by ferrous or magnetic objects surrounding it on the boat, such as cockpit speakers etc.
  • Page 9 Issue 1.0 16/12/99 Excerpts from AP14 operation manual - Parameter Adjustment The AP14 uses highly advanced steering soft- ware, which constantly assesses how the boat is being affected by the sea conditions. By adjust- ing its own performance, the pilot is able to maintain the most accurate course for these con- ditions, just as a human pilot would.
  • Page 10 Issue 1.0 16/12/99 Excerpts from AP14 operation manual ctd - 3.2 Seastate In a rough sea, more heading errors will be detected by the pilot as the heavy seas yaw the boat back and forth. The pilot would normally be overworked trying to correct every error, causing unnecessary strain on the unit and excessive drain on the batteries.
  • Page 11 Issue 1.0 16/12/99 Excerpts from AP14 operation manual ctd - 6.2 Compass Orientation The SHS12 compass can be mounted pointing four different ways - 0¼, 90¼, 180¼ or 270¼ to the bow (Fig 6.1). ¥ The factory preset is 0¼ (pointing forward). If the compass is mounted pointing any other 0º...
  • Page 12 Issue 1.0 16/12/99 Excerpts from AP14 operation manual ctd - 6.5 Seatrial / Compass Calibration Before using the AP14, the compass must be calibrated to compensate for any magnetic deviation caused by fer- rous or magnetic objects surrounding it on the boat, such as cockpit speakers etc.
  • Page 13 AP12 & AP14R Powerpilot Assembly Instructions...

  • Page 14: Assembly Instructions

    Issue 1.0 16/12/99 ASSEMBLY INSTRUCTIONS 3.1 General Assembly : Rotary Drive SRD12 The motor and gearbox are provided as a complete assembly and are not recom- mended for piece part replacement. Refer to Drawing No. SRD12 and attach the PCB by fastening the 3 screws Part No.
  • Page 15 AP12 & AP14R Powerpilot Mech Assembly Drawings...

  • Page 18: General Assembly : Junction Box Sjb12

    4.3 General Assembly : Junction Box SJB12...

  • Page 19: General Assembly : Heading Sender Shs12

    4.4 General Assembly : Heading Sender SHS12...

  • Page 21: Circuit Descriptions

    AP12 & AP14R Powerpilot Circuit Descriptions...
  • Page 22 Issue 1.0 16/12/99 CIRCUIT DESCRIPTIONS SRD12 PCB Assembly Introduction. The SRD12 is the heart of the Rotary Powerpilot and all other units are linked to the SRD12. It decodes the information from the heading sender and calcu- lates the heading, acts upon user commands sent from the control unit, detects drive gearbox clutch engagement, reads the Hall Effect quadrature feedback and controls the gearbox motor drive.
  • Page 23 Issue 1.0 16/12/99 Motor Drive. Drive signals are generated by the microprocessor and out- put from ports P1.6 and P1.7, the lines being LOW for no drive and switch- ing to HIGH to provide drive. These outputs control IC9 and IC10 used as comparators set at threshold levels of +4V and +1V produced by the resis- tor network R43, R44 and R45.
  • Page 24 Issue 1.0 16/12/99 Switches. Microprocessor ports P1.0 - P1.4 are connected to switches S1 - S5 and are normally high. When a switch is pressed the relevant line is pulled low and the microprocessor actions a specific task. Bus Circuitry. The Rotary Powerpilot system is interconnected via a single line Rx / Tx data bus.
  • Page 25 Issue 1.0 16/12/99 SHC14 PCB Assembly Introduction The Remote Control Unit provides the same facilities as the fixed control unit with additional options of: manual control of sea state, alarm set and response speed, dodge facility, compass read-out and rudder position indication. The circuit diagram for the PCB is given in Drawing No.

  • Page 26: Circuit Diagrams

    AP12 & AP14R Powerpilot Circuit Diagrams...

  • Page 27: Circuit Schematics

    Issue 1.0 16/12/99 CIRCUIT DIAGRAMS 6.1 Circuit Schematics SRD12 PCB Assembly E03318 SFC12 PCB Assembly E02882 SHS12 PCB Assembly E02777 SHC14 PCB Assembly E02552 SJB12 PCB Assembly E02876 6.2 Component Lists and Layouts SRD12 PCB Assembly Detail E03320 SFC12 PCB Assembly Detail E02884 SHS12 PCB Assembly Detail E02779...
  • Page 38 AP12 & AP14R Powerpilot Programming & Configuration...

  • Page 39: Programming And Configuration

    Issue 1.0 16/12/99 PROGRAMMING AND CONFIGURATION This Service Manual only contains programming and configuration information for those features of the autopilot which are not normally available to the end user. For details of normal programming and configuration please refer to the appropriate user manual AP12 AP14...

  • Page 40: Fault Finding

    AP12 & AP14R Powerpilot Fault Finding...

  • Page 41: Common User Faults

    Issue 1.0 16/12/99 FAULT FINDING 8.1 Common User Faults. Excerpt from AP12 manual (faults also apply to AP14) - 7.4 Fault Finding Symptom Probable Cause Remedy Pilot will not enter Auto mode. Rudder limits not entered*. Enter rudder limits* (see 6.3) Rudder limits configuration Check all connections.
  • Page 42 Issue 1.0 16/12/99 Common user faults are included in the LED Diagnostics guide included in the user manual. Excerpt from AP12 manual (faults also apply to AP14) - In the event of the AP12H failing, the LED located under the terminal bay cover of the SCP12 Course Computer can be used to identify the potential source of the problem - Flashes Diagnosis...

  • Page 43: Common Technical Faults

    Issue 1.0 16/12/99 8.2 Common Technical Faults. Symptom Pilot drives in 1 direction only, or no drive at all Probable Cause Blown drive FETs in SRD12 PCB - Commonly due to short circuit on data lines from another unit in the system - usually incorrect wiring by user.

  • Page 44: Spare Parts Packs

    AP12 & AP14R Powerpilot Spare Parts Packs...
  • Page 45 Page 45 Simrad Navico Spares Packs Product - Autopilots AP12 & AP14 Part No. Description Case Top - SCP12 APPK1 Case Bottom - SCP12 APPK2 PCB Assembly - SCP12 APPK3 Drive FET Kit - SCP12 APPK4...
  • Page 46 Page 46 Simrad Navico Spares Packs Product - Autopilots AP12 & AP14 Part No. Description Bottom Case Assembly - SFC12 APPK5 Top Case Assembly - SFC12 APPK6 PCB & Cable Assembly - SFC12 APPK7 Top Case Assembly - SHS12 APPK8...
  • Page 47 Page 47 Simrad Navico Spares Packs Product - Autopilots AP12 & AP14 Part No. Description Bottom Case Assembly - SHS12 APPK9 PCB Assembly - SHS12 APPK10 Top Case Assembly - SHC14 APPK11...
  • Page 48 Page 48 Simrad Navico Spares Packs Product - Autopilots AP12 & AP14 Part No. Description Bottom Case & Cable Assembly - SHC14 APPK12 PCB Assembly - SHC14 APPK13 Pump SRP12 - AP12H & AP14H APPK14 Linear Feedback SLF12 - AP12H & AP14H APPK15...
  • Page 49 Page 49 Simrad Navico Spares Packs Product - Autopilots AP12 & AP14 Part No. Description Rotary Drive SRD12 - AP12R &AP14R APPK16 Manual & SLF12 Fixings - AP12 &AP14 AP12 - APPK17 AP14 - APPK18...

  • Page 50: Technical Notes

    AP12 & AP14R Powerpilot Technical Notes...
  • Page 51 Issue 1.0 16/12/99 10 TECHNICAL NOTES None yet issued.
