E N

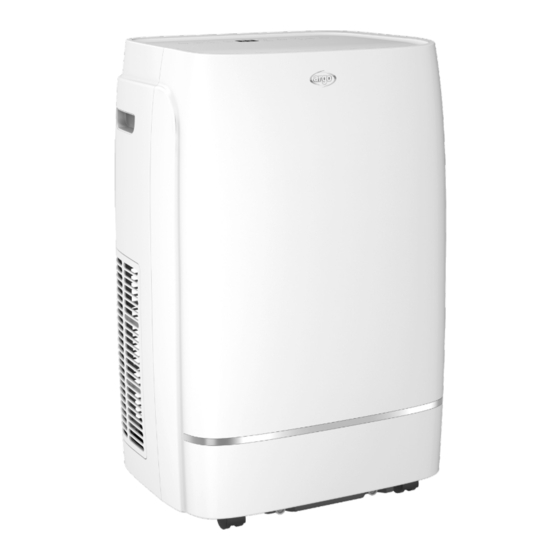

H E RM E S P L U S
PO RTABLE AI R CO N DIT IO N ER ( L O CA L )
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe
all the safety instructions; failure to do so may lead to accidents and/or damage. Store these instructions in
a safe place for future reference.
V 01/24
Advertisement
Table of Contents
Related Manuals for Argo HERMES PLUS
Summary of Contents for Argo HERMES PLUS

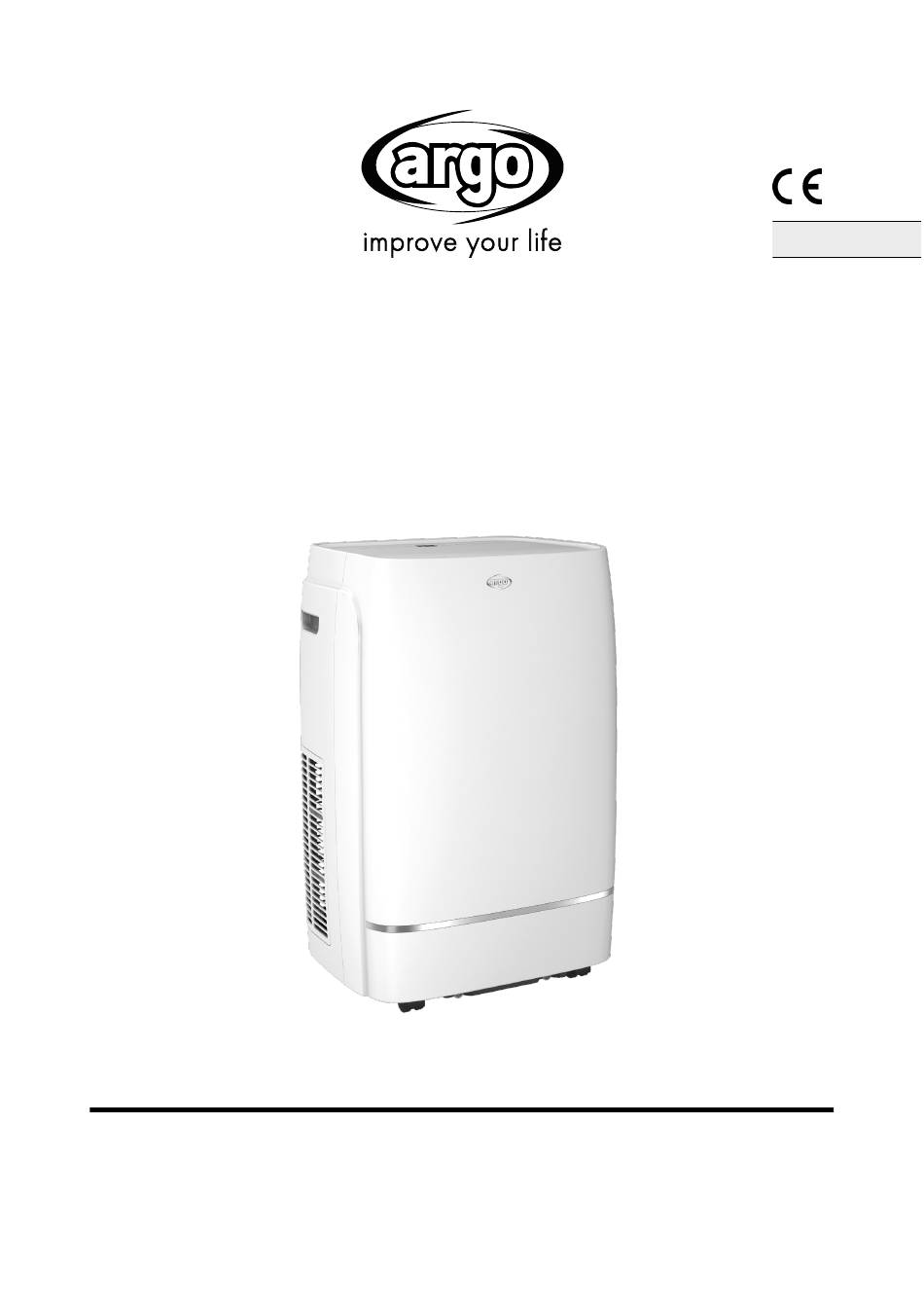

- Page 1 H E RM E S P L U S PO RTABLE AI R CO N DIT IO N ER ( L O CA L ) OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions;...
- Page 2 Appliance is filled with flammable Before installing and using the appliance, read the owner gas R290. manual. Before installing the appliance, Any repairs you need, contact the nearest read the installation manual. authorized Service Centre and strictly follow manufacturer’s Service Manual. THE REFRIGERANT R290 •...
- Page 3 GENERAL OPERATING AND SAFETY INSTRUCTIONS • This appliance is a local air conditioner designed for domestic use. • Only use this air-conditioner as described in this manual. • Ensure that the required voltage and frequency (220-240V~/50Hz) match the available power source. •...
- Page 4 • Before moving or cleaning the device, ensure that it is unplugged from the socket. • Do not move the air conditioner while it is operating; first turn the appliance off, check for any condensate build-up and empty it if necessary. •...
- Page 5 event of a malfunction, contact the service centre directly. WARNING! • Do not expose the air conditioner to direct sunlight, as the colour of the materials may change; moreover, the appliance may overheat causing the protection mechanism to intervene and switch the appliance off. •...
-
Page 6: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE 1. Control panel 6. Air outlet hose 2. Adjustable air louver 7. Continuous drain outlet (dehumidification mode) 3. Front panel 8. Drain outlet (cooling mode) 4. Air intake with filters 9. Castors 5. Handle Min/max operating limits (internal temperature) Cooling: 16 °C B.S./35 °C B.S. -
Page 7: Appliance Start Up
APPLIANCE START UP Open the packaging and pull out the box. Remove the product and the other elements supplied (illustrated in the box below). Battery Fitting to apply Hose Terminal flat fitting on the unit to which of expulsion to be placed between POWER connect the exhaust pipe of the air... - Page 8 USE WITH WINDOW UNIT KIT 1. To make the hole in the glass it is advisable to take the porthole kit accessory to the glazier (Fig.1) 2. Insert the window unit into the window (Fig.2) 3. Insert the round fitting into the retractable flexible pipe and insert the latter with its round fitting into the window unit without the plug (Fig.3) 4.
-
Page 9: How To Use The Appliance
HOW TO USE THE APPLIANCE This appliance can be used for Cooling, Heating, Dehumidification and Fan. Before using the appliance, leave it in an upright position for at least two hours. Plug the power cord into an appropriate power outlet (250~V). Insert the supplied battery into the remote controller, observing the polarities. -
Page 10: Operating Modes
OPERATING MODES 1. COOLING MODE • Press the MODE button to select the cooling mode. The LED on the control panel will turn on. • Press the UP/DOWN buttons on the control panel to select the desired temperature, which will appear on the control panel display. - Page 11 HOW TO ELIMINATE CONDENSATE This appliance automatically vaporizes condensation in Cooling. When the air conditioner operates in Cooling mode, it is not necessary to have continuous condensate drainage; only in particular climatic conditions in which the air humidity rate is very high can water deposit inside the unit. In Heating the condensate is not vaporised automatically, it will therefore be necessary to empty the tank.
-
Page 12: Function Control
FUNCTION CONTROL BY REMOTE CONTROLLER How to insert batteries into the remote control 1. Insert the batteries into the remote control, while respecting the indicated polarities. 2. Only use type AAA 1.5V batteries. 3. Remove the batteries if the remote control is not used for a month or longer. 4. - Page 13 FOR OPTIMUM OPERATION OF THE REMOTE CONTROL, ADDRESS THE TRANSMITTER HEAD TOWARDS THE RECEIVER LOCATED ON THE AIR CONDITIONER. CONTROL BY REMOTE CONTROLLER 1. POWER button 2. MODE button 3. SWING button 4. - TEMP/HRS + button POWER 5. TIMER button MODE 6.
- Page 14 operating in Cooling or Heating mode. In Cooling: after the first hour the set temperature increases by 1 °C, after the second hour it increases again by 1 °C. In Heating: after the first hour the temperature decreases by 1 °C, after the second hour it decreases again by 1 °C.
- Page 15 TEMPERATURE DISPLAY AND ERRORS With the exception of message P1, tank full, when an error occurs do not attempt to repair the air conditioner, always take it to an Argoclima Assistance Centre, otherwise the guarantee will no longer be valid. Problem Cause Solution...
-
Page 16: Care And Maintenance
CARE AND MAINTENANCE WARNING! Prior to carrying out any cleaning or maintenance, unplug the unit from the power socket. 1. Air filters cleaning The air filters must be checked at least once every two weeks of operation. Operation with dirty or clogged filters always causes a decrease in the efficiency of the air conditioner and can cause serious problems. - Page 17 TIPS FOR MAXIMISING COMFORT AND MINIMISING CONSUMPTION CHECK: • the unit’s extraction and delivery grilles are always unobstructed; • the air filters are always clean: a dirty filter will decrease the passage of air and thus reduce the unit performance; •...
- Page 18 SPECIALIST’S MANUAL Aptitude requirement for maintenance man (repairs. should be done only be specialists). • Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specifìcation.
- Page 19 The following checks shall be applied to installations using flammable refrigerants: • The actual refrigerant charge is in accordance with the room size within which the refrigerant containing parts are installed; • The ventilation machinery and outlets are operating adequately and are not obstructed; •...
- Page 20 for use with most refrigerants but the use of detergents containing chiarine shall be avoided as the chiarine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.
- Page 21 • Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. For appliances containing flammable refrigerants, ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. •...
- Page 22 www.argoclima.com Argoclima assumes no responsibility for any errors or inaccuracies in the content of this manual and reserves the right to make to this, at any time and without notice, any changes deemed appropriate for any technical or commercial need. V 01/24...
