4.2 Connection Interface Introduction-RS-422 & RS-232
You can also use the RS-422 or RS-232 protocol to connect your iCAST MINI to
your camera. After the iCAST MINI is turned on, please tap the camera icon
which is located at the top-right corner of the "Home" interface to enter

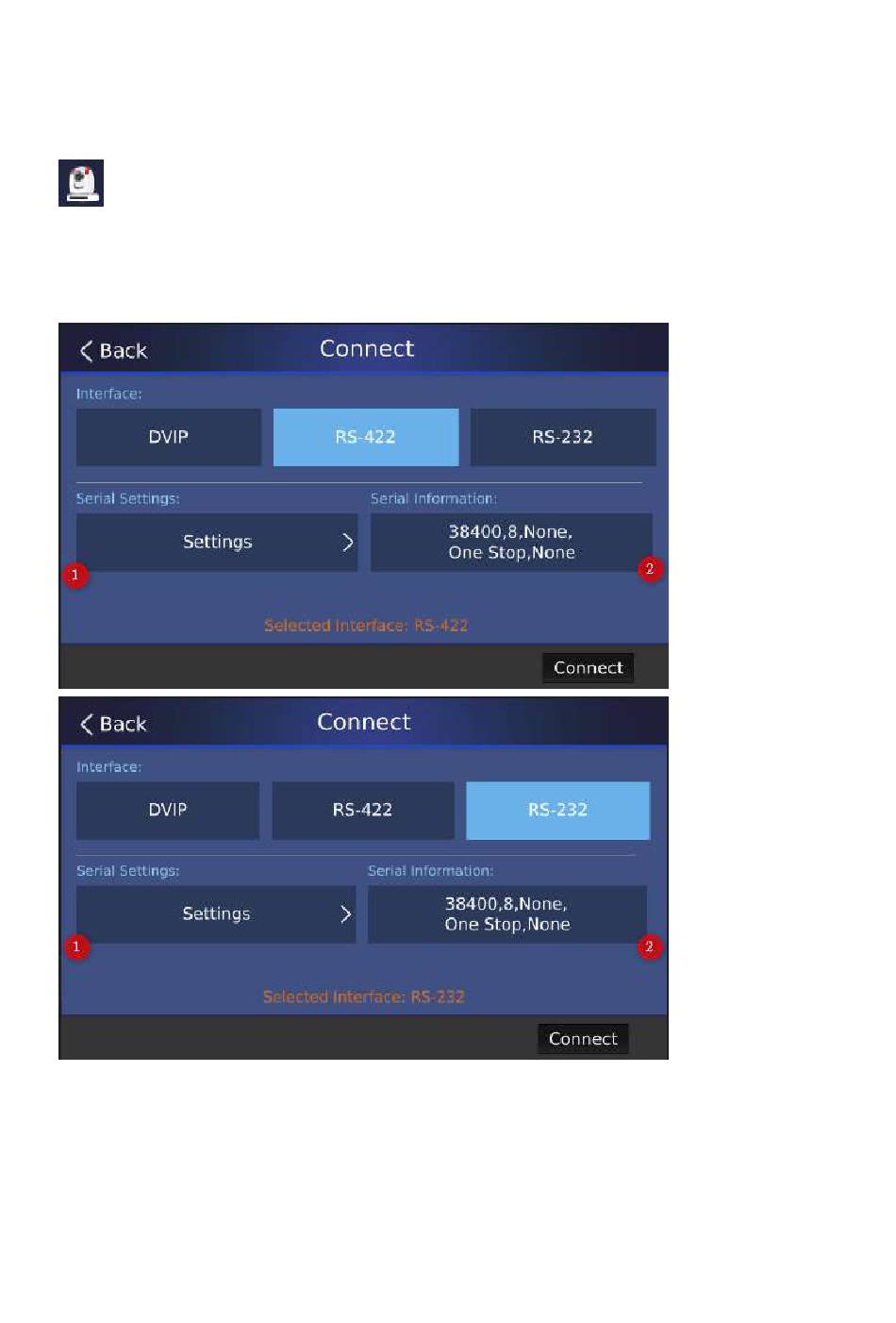

the "Connect" interface. The interface of the RS-232 and RS-422 protocols are
shown in the following diagrams.
Due to that the contents for the"Serial Settings" and "Serial Information"
options for the RS-422 and RS-232 are the same. So, this chapter will take the
RS-422 as an example.
