Installation

2.1

Space Requirements

Installation plate thickness: 1.5 - 9.0 mm (0.06 - 0.35 inch)
•

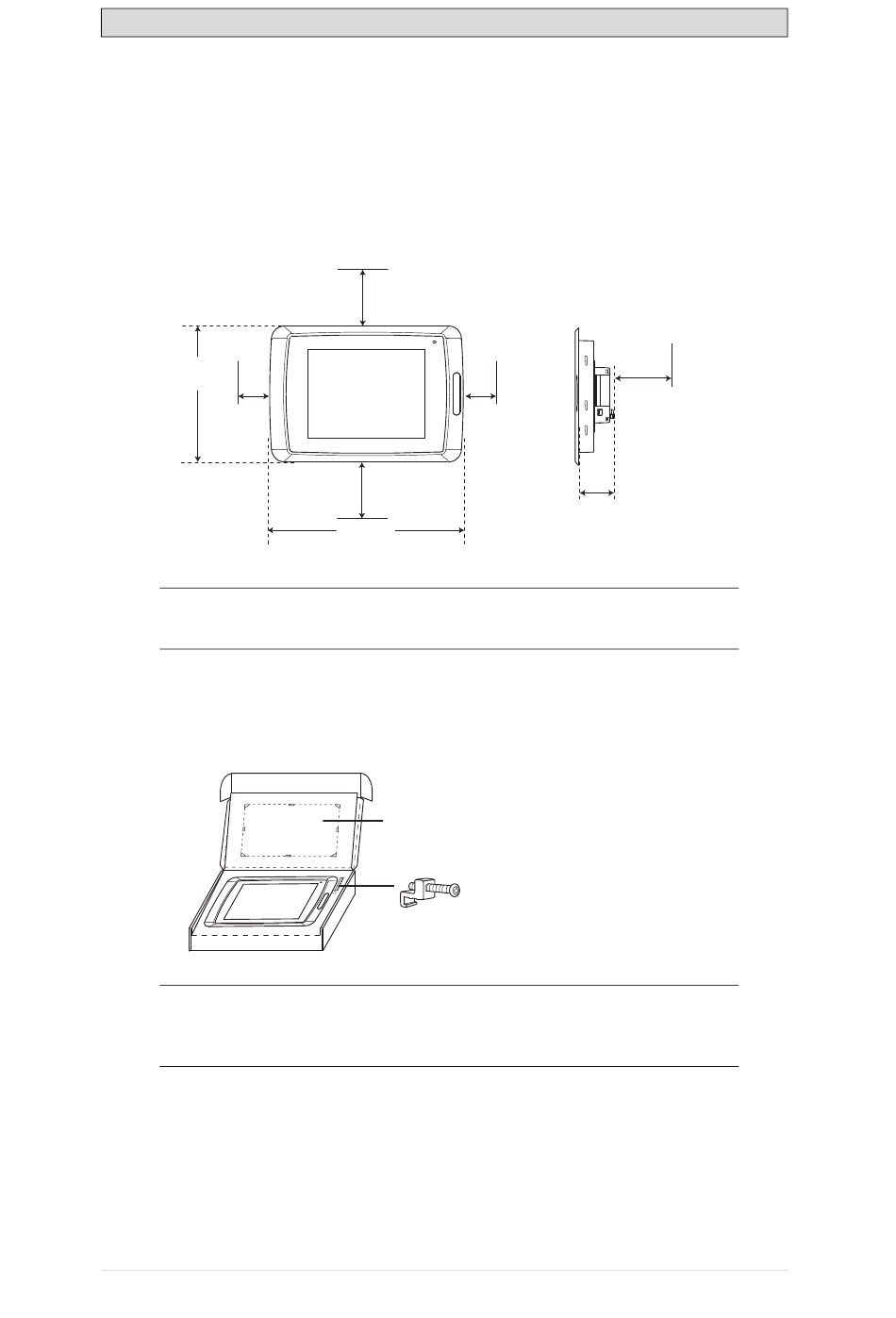

Space requirements when installing EPC TA150 AM:
•
304 mm
(11.97 inch)
50 mm
(2.0 inch)
Caution:
The openings on the enclosure are for air convection. Do not cover these openings.
2.2

Installation Process

1. Unpack and check the delivery. If damage is found, notify the supplier.
Note:
Place the Panel PC on a stable surface during installation.
Dropping it or letting it fall may cause damage.
Beijer Electronics, MAEN041
100 mm
(4.0 inch)
50 mm
(2.0 inch)
100 mm
(4.0 inch)
398 mm
(15.67 inch)
Panel cut out 355.5 x 278.5 mm
(14.0 x 10.96 inch)
x 14
Installation
100 mm
(4.0 inch)
60 mm
(2.36 inch)
