I.
INTRODUCTION
T
he RICON Mirage F9A Series Transit Use Wheelchair and Standee Lift provides wheelchair access to mass tran-
sit vehicles. The patented movement ensures smooth, safe entry and exit and easily lifts up to 660 pounds (300
kilograms). It is designed to be operated by a trained attendant or vehicle driver. After activating the vehicle
manufacturer installed safety interlock and by using the lift control switches, the lift extends OUT (or deploys) from the
vehicle and rises to the vehicle floor height. The user boards the large non-skid platform and the operator uses the con-
trol switches to gently lower the platform to the ground. After the user departs, the platform is raised and retracted IN
(stowed).
If there are questions about this manual, or additional copies are needed, please contact the Ricon Product Support
Department at one of the following locations:
Ricon Corporation
7900 Nelson Road
Panorama City, CA 91402...........................................................................................................(818) 267-3000
Outside (818) Area Code ............................................................................................................(800) 322-2884
World Wide Website.......................................................................................................... www.riconcorp.com
Ricon U.K. Ltd.
Littlemoss Business Park, Littlemoss Road
Droylsden, Manchester
United Kingdom, M43 7EF...................................................................................................(+44) 161 301 6000

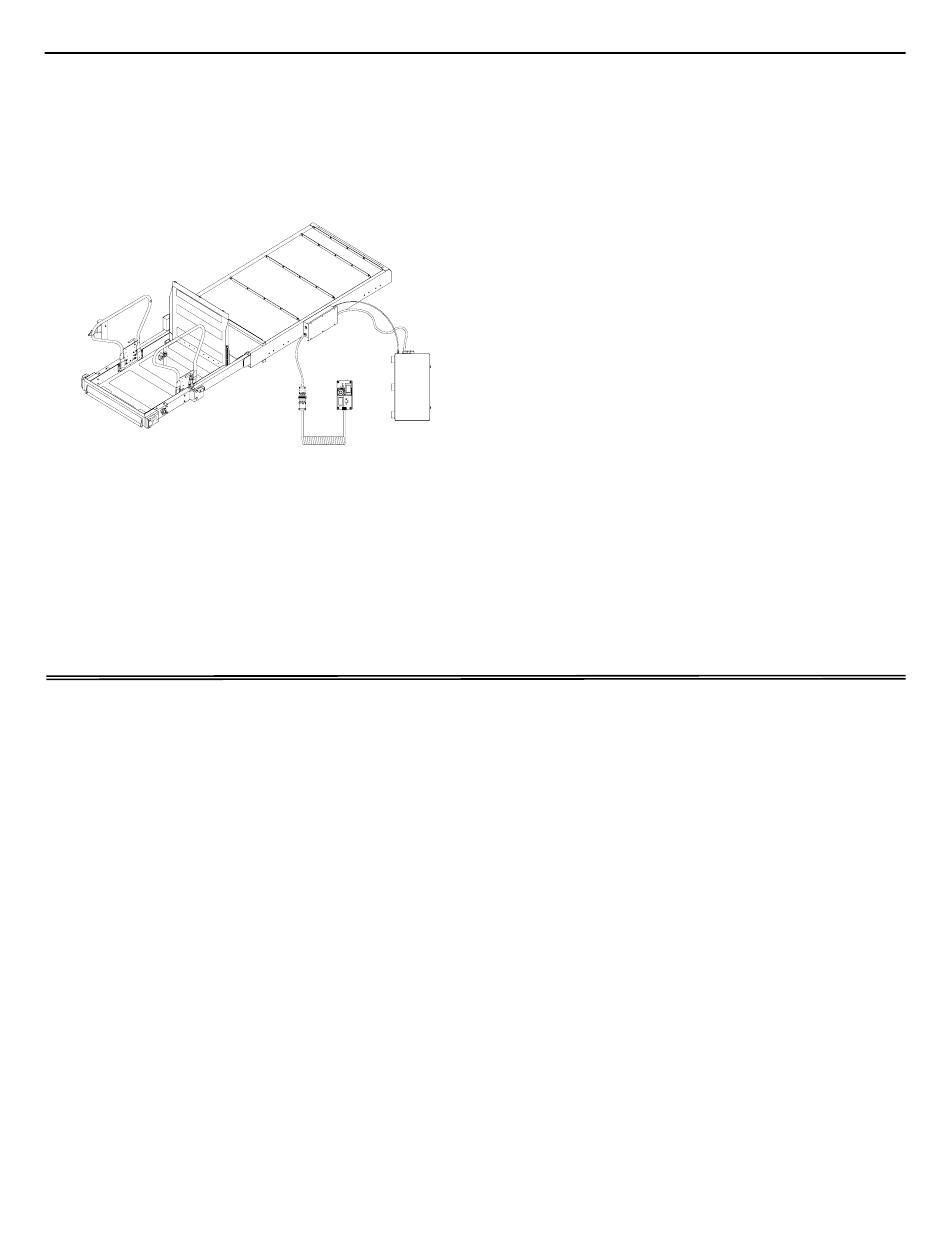

The F9A Series Lift is an underfloor, electro-hydraulic
wheelchair lift with a powerful electric motor and electrical
hydraulic pump, and a powered rollstop. The lift also con-
tains a built-in manual backup pump and rollstop manual
control knob. If the lift loses electrical power, two or more
people can extend the lift and raise and/or lower the lift
manually.
This manual contains operation and maintenance instruc-
tions and a troubleshooting guide for the lift. It is important
to user safety that the lift operator(s) be completely familiar
with the Operating Instructions given in Chapter II of the
Operator Manual. Once the lift is installed, it is very impor-
tant that the lift be properly maintained by following the Ri-
con recommended cleaning, lubrication, and inspection in-
structions.
32DF9AS02.A
1-1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ricon Mirage F9A Series
Summary of Contents for Ricon Mirage F9A Series
- Page 1 INTRODUCTION he RICON Mirage F9A Series Transit Use Wheelchair and Standee Lift provides wheelchair access to mass tran- sit vehicles. The patented movement ensures smooth, safe entry and exit and easily lifts up to 660 pounds (300 kilograms). It is designed to be operated by a trained attendant or vehicle driver. After activating the vehicle manufacturer installed safety interlock and by using the lift control switches, the lift extends OUT (or deploys) from the vehicle and rises to the vehicle floor height.
- Page 2 A Ricon rate schedule determines the parts covered and labor allowed. If You Need to Return a Product: Return this product to Ricon. Please give as much advance notice as pos- sible and allow a reasonable amount of time for repairs.
-
Page 3: Shipment Information
SHIPMENT INFORMATION Because of the specialized nature of the product, Ricon does not sell directly to the user. Instead, the product is distributed through the worldwide network of authorized Ricon dealers, who perform the actual sale and in- stallation. When the product is received unpack the product and check for freight damage. Claims for any dam- age should be made to the carrier immediately. -
Page 4: Major Lift Components

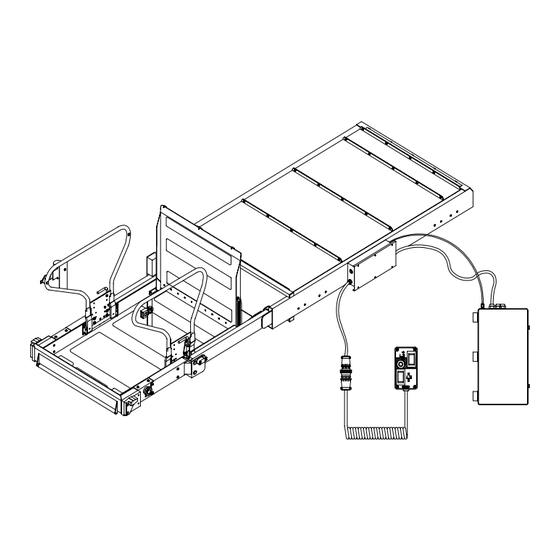

MAJOR LIFT COMPONENTS The references used throughout this manual are illustrated in Figure 1-1 and defined in Table 1-1. Refer to Chapter IV for more details. FIGURE 1-1: F9A SERIES TRANSIT USE WHEELCHAIR AND STANDEE LIFT 32DF9AS02.A... - Page 5 TABLE 1-1: F9A SERIES TRANSIT LIFT TERMINOLOGY NAME DESCRIPTION Left Reference points from outside the vehicle looking inward at the platform. Right Front Rear Lift Enclosure Cassette type structure, rigidly attached to the vehicle, that contains the lift. Pump Optional enclosure that contains the lift electrical and hydraulic control components. Enclosure Electrical Circuit Circuit breakers that protect the lift in the event of an electrical short circuit and...
- Page 6 This page intentionally left blank. 32DF9AS02.A...
