II.
INSTALLATION
T
he RICON PF7000 Series Express Ramp has been engineered and designed for custom installations. Installa-
tion consists of the mounting of the ramp, installation of the electrical supply and control wiring, controller ad-
justment, and installation verification. This chapter provides installation guidelines and instructions. If a ques-
tion arises that is not covered in this chapter, contact the Ricon Product Support Department for assistance.
A.
MECHANICAL INSTALLATION
1. RAMP LOCATION
The location of ramp depends on its path of motion. The ramp must be positioned so it can move unobstructed
through its required range of travel.
2. RAMP INSTALLATION
a. Refer to Figure 2-1. Remove cover strip screws.
b. Refer to Figure 2-1. Remove cover strips.
TAKE EXTREME CARE WHEN POSITIONING RAMP INTO TRAIN. BE SURE TO FOLLOW PROPER
OPERATION AND SAFETY INSTRUCTIONS WHEN USING LIFTING DEVICE.
c. Refer to Figure 2-2. Install eye bolts (provided in kit #39022) in the locations shown in Figure 2-2. Use
crane or lifting hoist to place ramp into train.
d. Once ramp is properly placed into train, remove eye bolts.
e. Refer to Figure 2-2. Remove access panel.
SCREWS

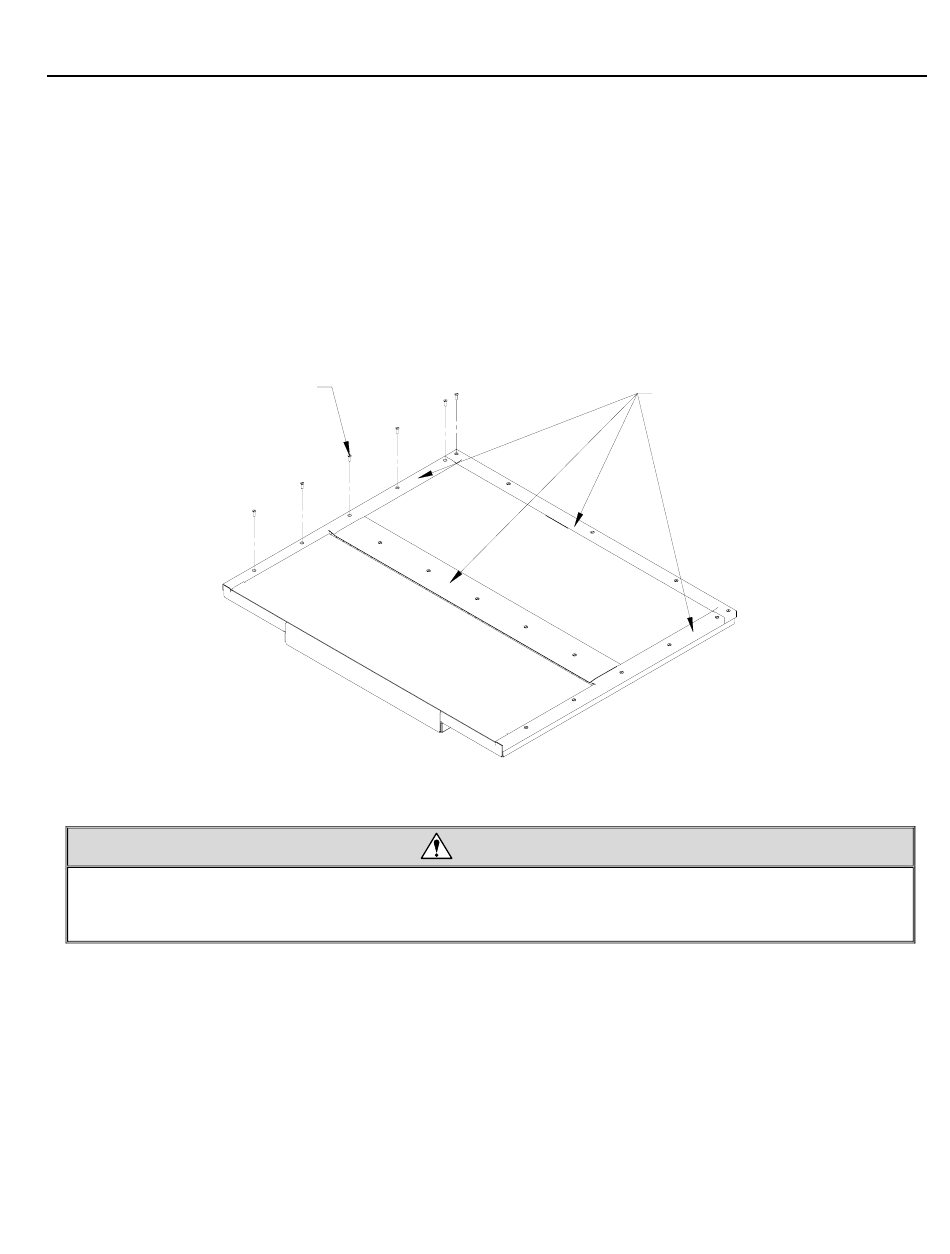

FIGURE 2-1: REMOVAL OF COVER STRIPS
WARNING!
32DPF702.A
TABLE OF CONTENTS
COVER STRIPS
2 - 1
Advertisement
Table of Contents
Related Manuals for Ricon PF7000 Series
Summary of Contents for Ricon PF7000 Series
- Page 1 This chapter provides installation guidelines and instructions. If a ques- tion arises that is not covered in this chapter, contact the Ricon Product Support Department for assistance. MECHANICAL INSTALLATION 1.
-
Page 2: Eye Bolts
EYE BOLTS ACCESS PANEL EYE BOLTS FIGURE 2-2: EYE BOLT LOCATIONS Refer to Figure 2-3. Rotate timing belt approximately 25-30 times in the direction shown in Figure 2-3 until the tip of the ramp appears approximately 50mm out of the enclosure. WARNING! VERIFY THAT THE HINGED FLOOR IS PROPERLY LOCKED IN A RAISED POSITION BEFORE ATTEMPTING TO INSTALL RAMP. - Page 3 REAR END MOUNTING HARDWARE MID-SECTION MOUNTING HARDWARE FRONT MOUNTING HARDWARE RAISED HINGED FLOOR FIGURE 2-3: INSTALLING MOUNTING FASTENERS Tighten mounting bolts in an alternating pattern in small increments, stepping up to the maximum value of 27 to 33Nm manually using a manual torque wrench. Do not tighten each bolt all at once. A pneumatic or any automatic device is not recommended.
-
Page 4: Main Wiring
a. Refer to Figure 2-4. Slide flutter valve onto holder. b. Refer to Figure 2-4. Place hose clamp over flutter valve and tighten to secure valve in place. ELECTRICAL INSTALLATION 1. GENERAL SAFETY PRECAUTIONS WARNING! MAKE SURE THAT THE POWER SOURCE IS DISCONNECTED WHEN ROUTING WIRES. - Page 5 c. Refer to Figure 2-7. Strip .350 - .370” (8.90 - 9.40mm) of insulation from end of the two 8 AWG (6 mm wires. Use a crimping tool to crimp terminal onto both 8 AWG (6 mm ) wires. FIGURE 2-7: CRIMPING 8 AWG WIRES d.
-
Page 6: Wiring Diagrams
Refer to Figure 2-11. Insert 14 AWG (1.5 mm ) wires into connector and connect to sensor cable. FIGURE 2-11: CONNECTING SENSOR CABLE TERMINALS 3. WIRING DIAGRAMS Refer to Figures 2-12, 2-13, and 2-14 on the following three pages. 2 - 6 32DPF702.A... - Page 7 FIGURE 2-12: CONTROLLER CONNECTION TO RAMP INTERFACE DIAGRAM 2 - 7 32DPF702.A...
- Page 8 FIGURE 2-13: RAMP WIRING DIAGRAM (SHEET 1 OF 2) 2 - 8 32DPF702.A...
- Page 9 FIGURE 2-14: RAMP WIRING DIAGRAM (SHEET 2 OF 2) 2 - 9 32DPF702.A...
-
Page 10: Control Panel Installation
CONTROL PANEL INSTALLATION 1. GENERAL SAFETY PRECAUTIONS WARNING! DO NOT TOUCH OR GO NEAR THE CONTROLLER WHILE IT IS POWERED. THERE IS A RISK OF ELECTRIC SHOCK AND/OR BURN INJURY. ♦ Handle the controller with care. Do not throw or drop the controller, as doing so could damage components inside. -
Page 11: Controller Wiring
2. CONTROLLER WIRING WARNING! MAKE SURE THAT THE POWER SOURCE IS DISCONNECTED WHEN ROUTING WIRES. THERE IS DANGER OF ELECTRIC SHOCK IF THE POWER SOURCE IS NOT DISCONNECTED. a. Route the train body wires to the wire numbers shown on the terminal board of the controller. b. - Page 12 3. CRIMPED RING- 1.5mm WIRE a. Refer to Figure 2-19. Strip approximately 6.5 ~ 7.0mm of insulation by using the appropriate wire strip- ping tool for a 1.5mm wire. FIGURE 2-19 b. To easily insert the bare conductor into the terminal, straighten the tip of the wire. c.
- Page 13 4. CRIMPED RING- 6mm WIRE a. Refer to Figure 2-22. Strip approximately 9.0 ~ 9.5mm of the insulation by using the appropriate wire stripping tool for a 6mm wire. FIGURE 2-22 b. To easily insert the bare conductor into the terminal, straighten the tip of the wire. c.
- Page 14 CONTROL PANEL INSTALLATION 1. GENERAL SAFETY PRECAUTIONS WARNING! DO NOT TOUCH THE REAR SIDE OF THE CONTROL PANEL WHILE IT IS POWERED. THERE IS A RISK OF ELECTRIC SHOCK AND/OR BURN INJURY. WARNING! DO NOT INSTALL THE CONTROL PANEL IN A LOCATION THAT IS ACCESIBLE TO THE GENERAL PUBLIC AND PASSENGERS.
-
Page 15: Control Panel Wiring
2. CONTROL PANEL WIRING WARNING! MAKE SURE THAT THE POWER SOURCE IS DISCONNECTED WHEN ROUTING WIRES. THERE IS DANGER OF ELECTRIC SHOCK IF THE POWER SOURCE IS NOT DISCONNECTED. a. Refer to Figure 2-25. Locate motor cable and controller signal cables located behind the control panel. 3 Poles Controller Signal Cable... - Page 16 FIGURE 2-26 2 - 16 32DPF702.A...
- Page 17 3. CRIMPED - 1.5mm WIRE a. Refer to Figure 2-27. Strip approximately 4.75 ± 0.38mm of insulation by using the appropriate wire stripping tool for a 1.5mm wire. FIGURE 2-27 b. To easily insert the bare conductor into the terminal, straighten the tip of the bare conductor. c.
- Page 18 4. CRIMPED - 6mm WIRE a. Refer to Figure 2-30. Strip approximately 9.0 ∼ 10.0mm of insulation by using the appropriate wire strip- ping tool for a 6mm wire. b. To easily insert the bare conductor into the female terminal, straighten the tip of the bare conductor. FIGURE 2-30 c.
- Page 19 Refer to Figure 2-9. Verify that all decals are properly located and affixed as shown. CORP ORATION MAN UA L RAMP OPE RA TION PART OF SERIAL NUMBER DECAL (RICON REPLACEABLE) CORP ORATION PART OF SERIAL MANUAL RAMP NUMBER DECAL...
-
Page 20: Back To Top
This page intentionally left blank. BACK TO TOP 2 - 20 32DPF702.A...
