I. INTRODUCTION

T
he RICON A6000 Series Personal Use Wheelchair Lift provides personal vans with wheelchair access.
When properly operated the patented movement ensures smooth, safe entry and exit, and can lift up to
660 pounds (300 kilograms). It is designed to be operated by the wheelchair occupant or a trained
attendant. The lift contains a powerful electro-hydraulic pump that includes a built-in manual backup pump.
If the lift loses electrical power, it can be raised and lowered manually.
Ricon Corporation
7900 Nelson Road
Panorama City, CA 91402
Outside (818) Area Code
World Wide Website
Ricon U.K. Ltd.
Littlemoss Business Park, Littlemoss Road
Droylsden, Manchester
United Kingdom, M43 7EF
Ricon Scandinavia A/S
Stanseveien 27
N-0976 Oslo
Norway
The lift control switches are used to unfold the lift from the
vehicle (deploy). The user boards the platform and uses
the control switches to gently lower the platform to the
ground. After the user departs, the platform is raised and
folded into the vehicle (stowed).
This manual contains operation and maintenance
instructions and a troubleshooting guide for the lift. It is
important to user safety that the lift operator(s) be
completely familiar with the Operating Instructions
chapter of this manual. Once the lift is installed, it is very
important that the lift be properly maintained by following
the Ricon recommended cleaning, lubrication, and
inspection instructions.
If there are questions about this manual, or additional
copies are needed, please contact Ricon Product
Support at one of the following locations:
. . . . . (818) 267-3000
. . . . . (800) 322-2884
. . . . . riconcorp.com
. . . . . (+44) 161 301 6000
. . . . . (+47) 22 16 70 90
1 - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A6000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ricon A6000 Series

  • Page 1 I. INTRODUCTION he RICON A6000 Series Personal Use Wheelchair Lift provides personal vans with wheelchair access. When properly operated the patented movement ensures smooth, safe entry and exit, and can lift up to 660 pounds (300 kilograms). It is designed to be operated by the wheelchair occupant or a trained attendant.
  • Page 2 A Ricon rate schedule determines the parts covered and labor allowed. If You Need to Return a Product: Return this Ricon product to your installing service technician. Please give as much advance notice as possible and allow a reasonable amount of time for repairs.
  • Page 3 SHIPMENT INFORMATION Because of the specialized nature of the product, Ricon does not sell directly to the user. Instead, the product is distributed through the worldwide network of authorized Ricon service technicians, who perform the actual installation. When the product is received, unpack the product and check for freight damage. Claims for damage •...

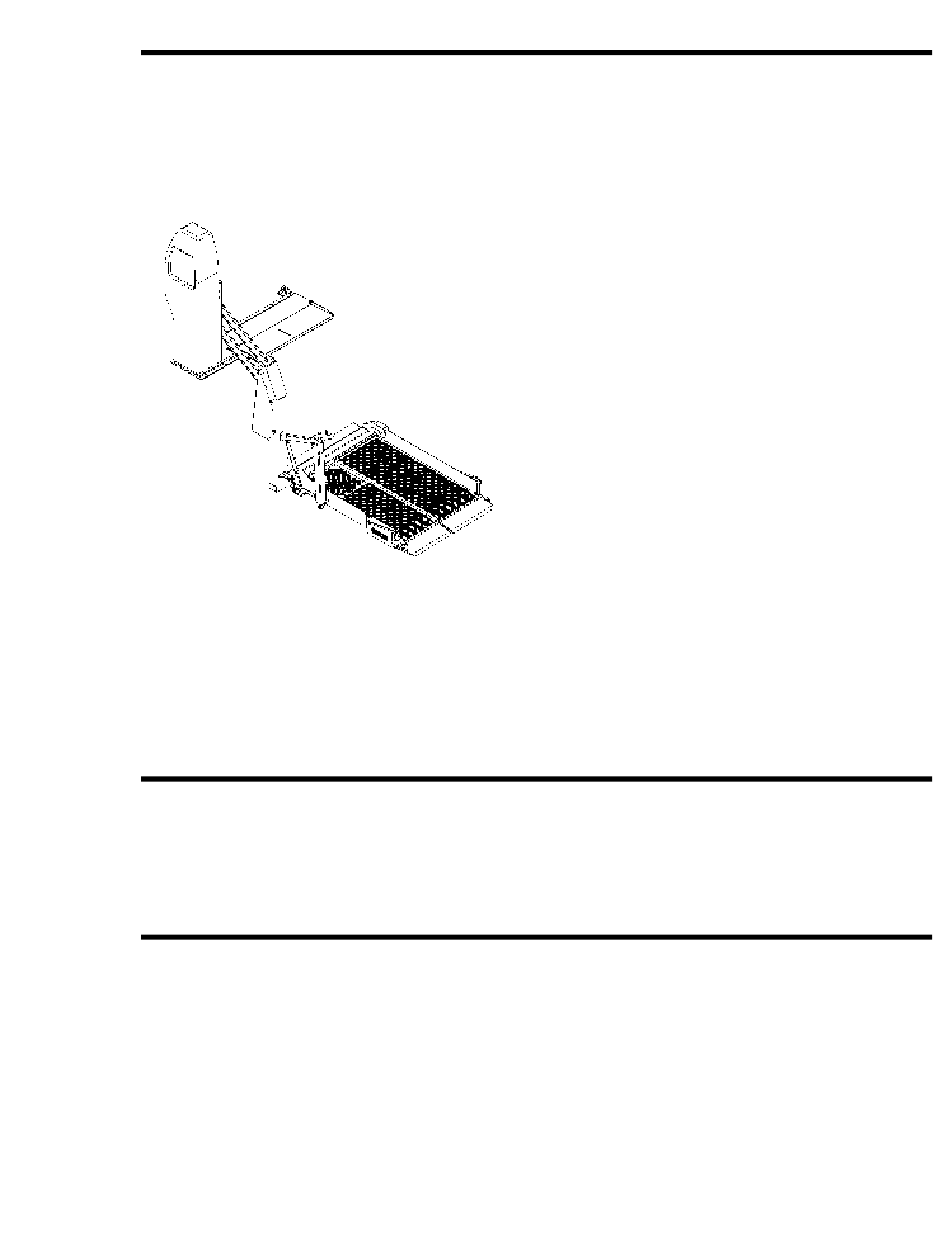

  • Page 4 every six months. The lift must always be maintained at the highest level of performance. • FIGURE [1-1]: LIFT COMPONENTS 1 - 4...
