S-SERIES TRANSIT USE INTRODUCTION

T
he RICON S-Series Transit Use Wheelchair Lift provides wheelchair access to vans and
buses. The patented movement provides smooth, safe entry and exit and easily lifts up to
800 pounds (364 kilograms). It is to be operated by a trained attendant. The lift contains a
powerful electro-hydraulic pump that includes a built-in manual backup pump. If the lift loses
electrical power, it can be raised or lowered manually.
If there are questions about this manual, or additional copies are needed, please contact Ricon
Product Support at one of the following locations:
Ricon Corporation
7900 Nelson Road
Panorama City, CA 91402....................................................... (818) 267-3000
Outside (818) Area Code......................................................... (800) 322-2884
World Wide Website ......................................................... www.riconcorp.com
Ricon U.K. Ltd.
Littlemoss Business Park, Littlemoss Road
Droylsden, Manchester
United Kingdom, M43 7EF ...............................................(+44) 161 301 6000
A. RICON FIVE-YEAR LIMITED WARRANTY
32DSST01.A
By using the lift control switches, the lift is un-
folded out from the vehicle (deployed). The user
boards the large non-skid platform and the op-
erator uses the control switches to gently lower
the platform to the ground. After the user de-
parts, the platform is raised and folded into the
vehicle (stowed). The lift is also available with a
platform that splits and folds when stowed, pro-
viding easy vehicle access through the lift.
This manual contains warranty information,
safety precautions, operating instructions, and
maintenance information. It is important to user
safety that the lift operator be completely familiar
with the operating instructions. Once the lift is
installed, it is very important that the lift be prop-
erly maintained by following the Ricon recom-
mended maintenance and inspection instruc-
tions provided in Chapter III.
(refer to following page)
1-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ricon S Series

Summary of Contents for Ricon S Series

  • Page 1 Ricon recom- mended maintenance and inspection instruc- tions provided in Chapter III. If there are questions about this manual, or additional copies are needed, please contact Ricon Product Support at one of the following locations: Ricon Corporation 7900 Nelson Road Panorama City, CA 91402............
  • Page 2 Ricon Product Support. If You Need to Return a Product: Return this product to Ricon. Please give as much advance no- tice as possible, and allow a reasonable amount of time for repairs.
  • Page 3 § report any missing items immediately to Ricon Product Support. The warranty and owner registration cards must be completed and returned to Ricon within 20 days for the warranty to be valid. NOTE: The Sales/Service Personnel must review the Warranty and Operator Manual with the user to be certain that they understand the safe operation of the product.

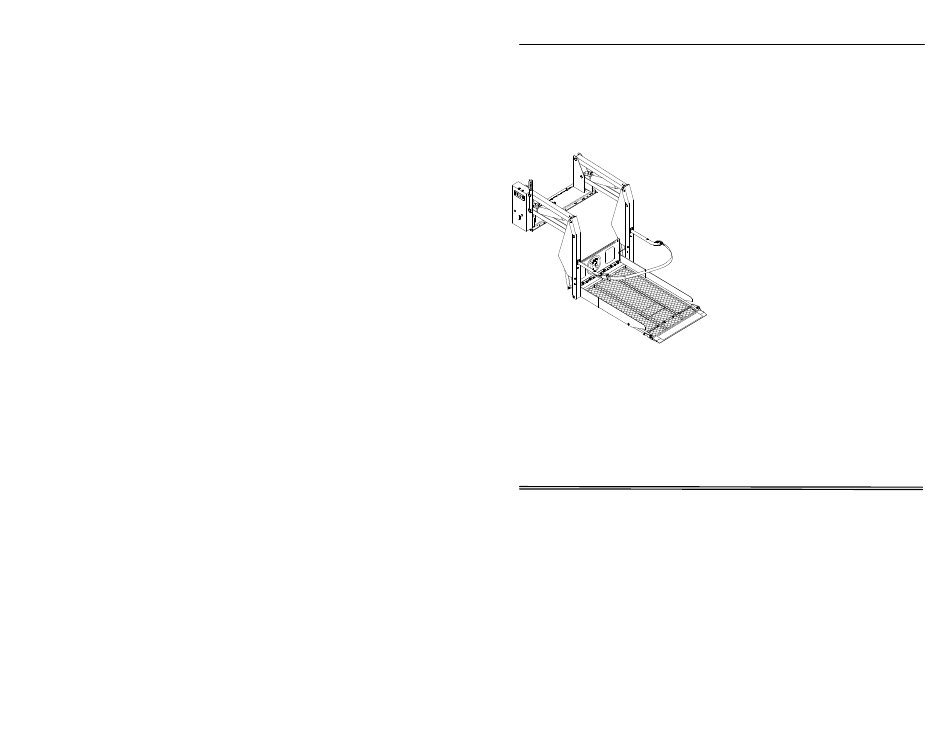

  • Page 4 D. MAJOR LIFT COMPONENTS The references used throughout this manual are illustrated in Figure 1-1 and defined in Table 1-1. Refer to Chapter IV “Parts Diagrams and Lists” for more details. FIGURE 1-1: TRANSIT USE WHEELCHAIR LIFT 32DSST01.A...
  • Page 5 TABLE 1-1: S-SERIES TRANSIT LIFT COMPONENT TERMINOLOGY REF. NAME DESCRIPTION Position references when lift is viewed from outside of Left vehicle. Right Front Rear (Left and Right) Telescoping steel tube, which converts Hydraulic Cylinder hydraulic pressure into lifting force. Hydraulic Power Contains pump used to create hydraulic pressure to raise Unit and fold lift, as well as a valve to unfold and lower lift.
  • Page 6 This page intentionally left blank. -BACK TO TABLE OF CONTENTS- -GO TO NEXT CHAPTER- 32DSST01.A...
