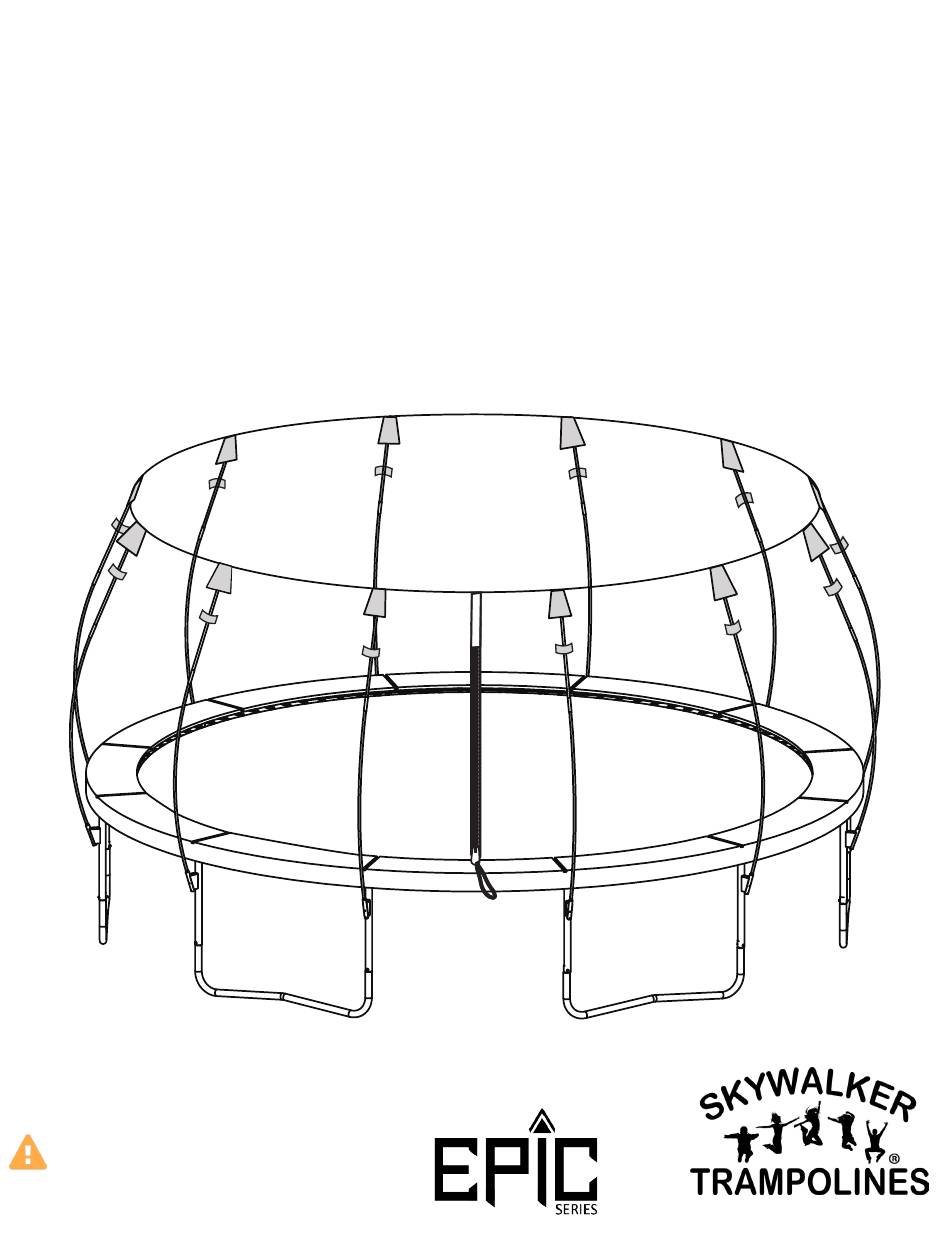

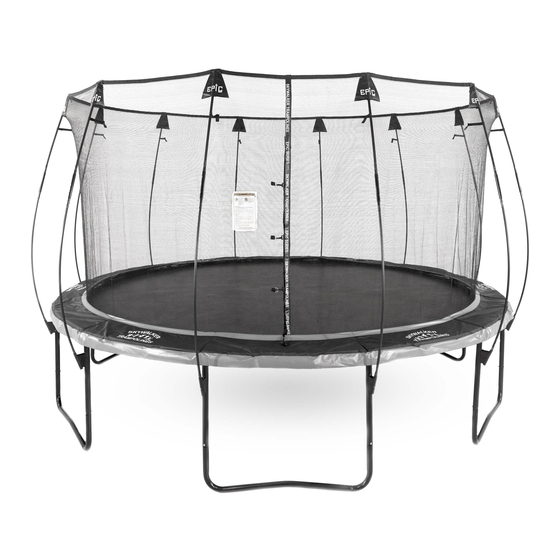

ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL # EPIC14D07
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Skywalker Holdings LLC
Save this manual for future reference.
P.O. Box 574, Brigham City, UT 84302
Maximum user weight 400 lbs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPIC14D07 and is the answer not in the manual?

Questions and answers

Related Manuals for Skywalker EPIC14D07

Summary of Contents for Skywalker EPIC14D07

  • Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL # EPIC14D07 WARNING Read all precautions and instructions in this manual before using this equipment. Skywalker Holdings LLC Save this manual for future reference. P.O. Box 574, Brigham City, UT 84302 Maximum user weight 400 lbs.

  • Page 2: Table Of Contents

    HEY WE'VE GOT SOMETHING REALLY IMPORTANT TO SAY Skywalker Trampolines belongs to a family of brands focused on providing active products. Check us out online! We've got assembly videos (for those of you who prefer movies over books), FAQs (so you know you're not the only one who asked a question), additional products (including fitness, sports, playground equipment, and trampolines), and most importantly, find us on social media! Because we want to be your friend.

  • Page 3: Part List

    BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.

  • Page 4: Part Identification

    PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Leg Upright x12) Top Tube (x12) Leg Brace (x6) M6X48mm Bolt...
  • Page 5 Connect Tube End Cap (x12) Spring Tool (x1) (x12) (pre-installed) Wrench (x1) Screw Driver (x1)

  • Page 6: Exploded Drawing

    EXPLODED DRAWING (12) (12) (12) (12) (13) (12) (13) (13) (13) (13) (12) (13) (12) (12) (12) (13) (11) (11) (11) (13) (12) (13) (11) (11) (13) (11) (11) (11) (11) (11) (10) (11) (11) (15) (15) (15)

  • Page 7: Assembly

    ASSEMBLY READ THIS BEFORE YOU BEGIN • You’ll probably need at least 2 adults and 2 hours to assemble your trampoline (of course, that depends on what model you have, and whether or not you’re secretly a superhero). • We’ve provided a screw driver to help with assembly, but you’re more than welcome to use your own tools. Many find that using a power drill and a rubber mallet makes things easier.
  • Page 8 ASSEMBLY STEP 3 Now using the assembled pieces from the previous step, slide the small side of a top tube (2) through a leg upright (1) and into the large side of a top tube (2). This makes one top tube section. Repeat this step with remaining top tubes (2) and leg uprights (1) to make 6 top tube sections.
  • Page 9 Jump Mat (x1) Model: EPIC16D07 Part #: 7046 Description: 16 Foot Mat Made in China Skywalker Holdings, L LC PO Box 574, Brigham City, UT, 84302 U SA www.skywalkertrampolines.com Factory address: Wei Jia Tun Village Ligezhuang town Jiaozhou city Qingdao China WARNING Trampoline and enclosures are susceptible to winds, secure your trampoline and enclosure.
  • Page 10 ASSEMBLY STEP 7 Place the enclosure net (8) on the jump mat (7), and make sure a warning label and the enclosure door line up. Now insert the V-ring to the left of the warning label into the hole on the left side of the enclosure door. Then, insert the remaining V-rings into their corresponding holes.
  • Page 11 STEP 9 Now, repeat step 9 on the other side of the trampoline. Attach the small end of the springs into the V-rings on either side of the warning label. Then stretch the free ends to the frame and place them in the 4th and 5th spring holes.
  • Page 12 ASSEMBLY STEP 11 Next place eight springs directly to the left of each of the remaining leg uprights (1). (See arrows below for placement.) Don’t forget to count for proper alignment. You have now attached 16 springs. Springs (x8) Enclosure door STEP 12 Now, place one spring directly to the left of each spring placed at a leg upright.
  • Page 13 STEP 13 Place the frame pad (10) on top of the springs. Adjust the frame pad so that two logos sit on either side of the enclosure door. Important: Don’t use the trampoline without the frame pad. It’s designed to protect your little jumpers! Trust us on this one.
  • Page 14 ASSEMBLY STEP 15 Connect the lower enclosure flex rod (11), connect tube (13), and upper enclosure flex rod (12) together, as shown, to make one complete enclosure rod. Repeat this step to connect the remaining upper flex rods, connect tubes, and lower flex rods to complete Upper enclosure Connect tube Lower enclosure...
  • Page 15 STEP 17 Starting from the enclosure door, lift and insert the bottom of the enclosure rod into the bracket on the leg upright (1) (make sure the push pin is facing out so it can easily pop into place) Continue in a clock-wise direction, placing every other enclosure rod until all enclosure rods have been placed.
  • Page 16 ASSEMBLY STEP 19 Congratulations on completing your new trampoline! (See, we knew you could do it!) So here comes the real question, are you satisfied with this completed product? If you are, go ahead and write a review on the retailer’s site you bought it from.

  • Page 17: Maintenance And Care Information

    MAINTENANCE & CARE INFORMATION Congratulations and high five on successfully assembling your new Skywalker Trampolines 16' Round Epic Series Trampoline with Enclosure! Now, the best way to keep your new trampoline in tip top shape, is to periodically check for: •...

  • Page 18: Instructions For Use

    INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe enjoyable use of this equipment.

  • Page 19: Warning Label Placement

    Climb on to and off the trampoline. Do not jump on or off. Do not use the trampoline as a springboard to other objects. Inspect before using and replace any worn, defective or missing parts. For further equipment information contact Skywalker. For skill training information, contact a trainer certification organization. ATTACH TO TRAMPOLINE WARNING Do not land on head or neck.

  • Page 20: Instructions And Model Lessons

    INSTRUCTIONS & MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). 1. Fundamental bounce: Demonstration and practice. 2. Knee Drop: Demonstration and practice. 3.
  • Page 21 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Land in a sitting position with your legs parallel to the 1. Start from a low bounce and land on the mat in a mat. prone position. 2. Place your hands on the mat beside your hips. 2.
  • Page 22 Lesson 9: Mounting and Dismounting Lesson 10: Breaking 1. Users should climb onto the trampoline by placing 1. Starting from a standing position, jump into the their hands on the frame and stepping or rolling up air. onto the frame, across the springs and onto the mat. 2.

  • Page 23: Trampoline Safety Information

    TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described.

  • Page 24: Enclosure Safety Information

    ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page identifies important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely.

  • Page 25: Methods Of Accident Prevention

    METHODS OF ACCIDENT PREVENTION THE SUPERVISOR’S ROLE IN PREVENTING ACCIDENTS It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries.

  • Page 26: Limited Warranty

    LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for four (4) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase.
  • Page 27 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
