Summary of Contents for Aerotech UFM-ST
-
Page 1: Ufm-St Noise Filter Module
UFM-ST Noise Filter Module HARDWARE MANUAL Revision 2.00... - Page 2 Global Technical Support Portal for information and support about your Aerotech, Inc. products. The website supplies software, product manuals, Help files, training schedules, and PC-to-PC remote technical support. If necessary, you can complete Product Return (RMA) forms and get information about repairs and spare or replacement parts.
-
Page 3: Table Of Contents
List of Tables EU Declaration of Conformity UKCA Declaration of Conformity Agency Approvals Safety Procedures and Warnings Handling and Storage Chapter 1: UFM-ST Overview 1.1. Electrical Specifications 1.2. Mechanical Specifications 1.2.1. Mounting and Cooling 1.2.2. Dimensions 1.3. Environmental Specifications Chapter 2: Installation and Configuration 2.1. -
Page 4: List Of Figures
UFM-ST Hardware Manual List of Figures Figure 1-1: UFM-ST Figure 1-2: AC Line Filter Functional Diagram Figure 1-3: UFM-ST Dimensions Figure 2-1: AC Input Connections Figure 2-2: AC Output Connections Figure 3-1: AC Line Filter PCB Assembly www.aerotech.com... -
Page 5: List Of Tables
Hardware Manual UFM-ST List of Tables Table 1-1: Filter Specifications Table 1-2: TB1 and TB2 Mating Connector Ratings Table 1-3: Mounting Specifications Table 1-4: Environmental Specifications Table 3-1: Troubleshooting Table 3-2: Preventative Maintenance Table 3-3: Fuse Replacement Specifications www.aerotech.com... -
Page 6: Eu Declaration Of Conformity
UFM-ST Hardware Manual EU Declaration of Conformity Manufacturer Aerotech, Inc. Address 101 Zeta Drive Pittsburgh, PA 15238-2811 Product UFM-ST Model/Types This is to certify that the aforementioned product is in accordance with the applicable requirements of the following directive(s): 2014/35/EU... -
Page 7: Ukca Declaration Of Conformity
Hardware Manual UFM-ST UKCA Declaration of Conformity Manufacturer Aerotech, Inc. Address 101 Zeta Drive Pittsburgh, PA 15238-2811 Product UFM-ST Model/Types To which this declaration relates, meets the essential health and safety requirements and is in conformity with the relevant UK Legislation listed below: Electrical Equipment (Safety) Regulations 2016... -
Page 8: Agency Approvals
U8V 13 12 68995 014 CAN/CSA C22.2 No. 61010-1:2012 , Standards: UL 61010-1:2012 Visit https://www.tuev-sued.de/product-testing/certificates to view Aerotech's TÜV SÜD certificates. Type the certificate number listed above in the search bar or type "Aerotech" for a list of all Aerotech certificates. www.aerotech.com... -
Page 9: Safety Procedures And Warnings
To find the newest information about this product, refer to www.aerotech.com. If you do not understand the information in this manual, contact Aerotech Global Technical Support. IMPORTANT: This product has been designed for light industrial manufacturing or laboratory environments. - Page 10 UFM-ST Hardware Manual WARNING: Electrostatic Discharge (ESD) Sensitive Components! You could damage the power supply or drives if you fail to observe the correct ESD practices. Wear an ESD wrist strap when you handle, install, or do service to the PS2 assembly.
-
Page 11: Handling And Storage
Hardware Manual UFM-ST Handling and Storage Unpacking the filter module IMPORTANT: All electronic equipment and instrumentation is wrapped in antistatic material and packaged with desiccant. Ensure that the antistatic material is not damaged during unpacking. Inspect the shipping container for any evidence of shipping damage. If any damage exists, notify the shipping carrier immediately. - Page 12 UFM-ST Hardware Manual This page intentionally left blank. www.aerotech.com...
-
Page 13: Chapter 1: Ufm-St Overview

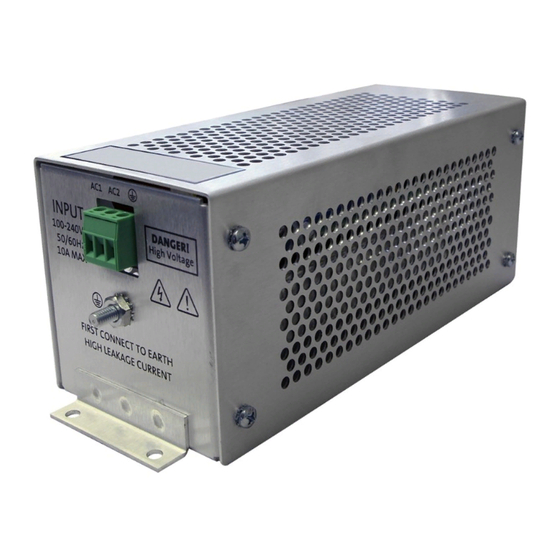

Use the Universal Filter Module (UFM-ST) to reduce conducted line noise generated by switching servo amplifiers. The UFM-ST is for customers requiring compliance with the CE EMC directives and provides RFI filtering and surge suppression. See the Declaration of Conformity within the individual products hardware manual for applicability. -
Page 14: Electrical Specifications
UFM-ST Hardware Manual 1.1. Electrical Specifications Table 1-1: Filter Specifications Description Specification Input Voltage Range 0-240 VAC Output Voltage Range 0-240 VAC with convection cooling Maximum Continuous Current 10 A with forced air cooling Frequency 50/60 Hz Phases Single Phase Leakage Current 1.1 mA (max) -
Page 15: Mechanical Specifications
Hardware Manual UFM-ST 1.2. Mechanical Specifications Line filters should be located as close to the drive as possible with the case connected through a low impedance connection to earth ground for maximum effectiveness. The unit should be mounted to earth ground, where possible, with M4 (#8) mounting hardware. -
Page 16: Dimensions
UFM-ST Hardware Manual 1.2.2. Dimensions Figure 1-3: UFM-ST Dimensions www.aerotech.com... -
Page 17: Environmental Specifications
Hardware Manual UFM-ST 1.3. Environmental Specifications The environmental specifications are listed below. Table 1-4: Environmental Specifications Operating: 5 °C to 40 °C (41 °F to 104 °F) Ambient Temperature Storage: -20 °C to 70 °C (-4 °F to 158 °F) - Page 18 UFM-ST Hardware Manual This page intentionally left blank. www.aerotech.com...
-
Page 19: Chapter 2: Installation And Configuration
AC power lines (Internally fused at 10 Amps). The Ground terminal is connected internally to the external Ground Stud and must be connected to Ground. Wiring to the UFM-ST filter must use #16 AWG wires or larger and have an insulation rating of at least 300 V. -
Page 20: Amplifier Fault Inputs
(connected internally to the Input ground and the external Ground Stud) and is typically connected to the ground of the equipment being supplied by this filter. Wiring to the UFM-ST filter must use #16 AWG wires or larger and have an insulation rating of at least 300 V. -
Page 21: Chapter 3: Maintenance
Symptom Possible Cause and Solution 1. Verify AC input voltage is present at AC1 & AC2. 2. Check for blown fuse inside UFM-ST filter. Fuse can be checked by No voltage output making continuity check between Input & Output connectors. -
Page 22: Preventative Maintenance
DANGER: Before you clean the UFM-ST, disconnect the electrical power from the drive. Use a clean, dry, soft cloth to clean the UFM-ST. If necessary, use a cloth that is moist with water or isopropyl alcohol. If you use a moist cloth, make sure that moisture does not go into the filter module. -
Page 23: Ac Line Filter Pcb
UFM-ST 3.2. AC Line Filter PCB The UFM-ST Filter contains the Aerotech AC Line Filter PCB. The AC Line Filter PCB contains various filter components, transient suppressors, and the 10 A AC line fuses (F1 & F2) on the standard version of the UFM-ST filter. - Page 24 UFM-ST Hardware Manual This page intentionally left blank. www.aerotech.com...
-
Page 25: Appendix A: Warranty And Field Service
All Other Repairs - After Aerotech's evaluation, the buyer shall be notified of the repair cost. At such time the buyer must issue a valid purchase order to cover the cost of the repair and freight, or authorize the product(s) to be shipped back as is, at the buyer's expense. - Page 26 Aerotech's approval. On-site Warranty Repair If an Aerotech product cannot be made functional by telephone assistance or by sending and having the customer install replacement parts, and cannot be returned to the Aerotech service center for...
-
Page 27: Appendix B: Revision History
Hardware Manual UFM-ST Appendix B: Revision History Revision Description 2.00 General Update 1.03 1.02 Revision changes have been archived. If you need a copy of this revision, contact AerotechGlobal Technical Support. 1.01 1.00 www.aerotech.com... - Page 28 UFM-ST Hardware Manual This page intentionally left blank. www.aerotech.com...
-
Page 29: Index
UFM-ST Hardware Manual Index Index Installation and Configuration Introduction IP54 Compliant 2014/35/EU Maintenance AC Input Connections 19-20 Mating Connector P/N AC Input Power Wiring Aux Encoders Connector AC Line Filter PCB Mechanical Specifications AC Power Connections Mounting and Cooling Agency Approvals... - Page 30 Index UFM-ST Hardware Manual Warranty and Field Service www.aerotech.com...
