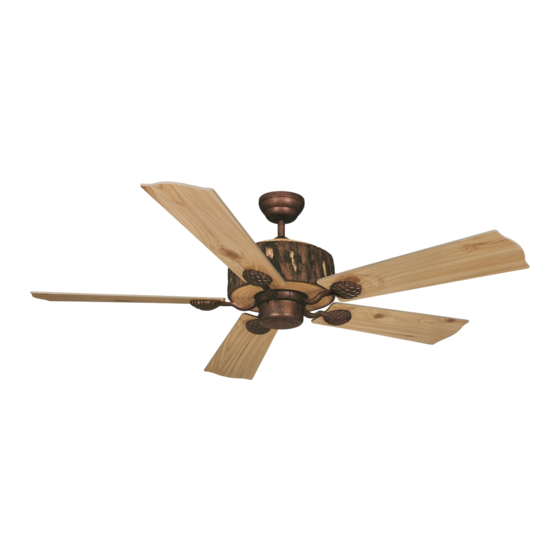

Vaxcel FN52265 Quick Start Manual
  1. Manuals
  2. Brands
  3. Vaxcel Manuals
  4. Fan
  5. FN52265
  6. Quick start manual

Vaxcel FN52265 Quick Start Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
*for full limited lifetime warranty details please see final page of these instructions.
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
• All set screws of the fan must be checked and retightened where necessary before installation.
• To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
• Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
• The safeguards provided by these safety instructions and by the separate installation instructions
are not meant to cover all possible conditions and situations that may occur. It must be understood
that common sense, caution and care are factors which can not be built into this product. These
factors must be supplied by the person(s) installing, caring for and operating the fan.
WARNING
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
Model No.:
FN52265
PAGE: 1 / 8
230913

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FN52265 and is the answer not in the manual?

Questions and answers

Related Manuals for Vaxcel FN52265

Summary of Contents for Vaxcel FN52265

  • Page 1 ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY* *for full limited lifetime warranty details please see final page of these instructions. Model No.: FN52265 Safety Instructions READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO INSTALL THE FAN AND SAVE INSTRUCTIONS.

  • Page 2: Package Contents

    Package Contents: X 16 Unpack your fan and check the contents. You should have the following items. 1.) Hanger Bracket 2.) Canopy 3.) 6" Downrod Set (Included Hanger Ball, 6" Downrod, Hanger Pin & Lock Pin) 4.) Cap 5.) Assembly Set 6.) Blade Holder(5PCS) 7.) Blade(5PCS) 8.) Switch Box...
  • Page 3 Decomposition Chart: Hanger Bracket Hanger Ball Canopy Downrod Lock Pin Hanger Pin Collar Fan Blade Assembly Blade Holder Blade Switch Box Dual Mount Drawing Downrod Mount Sloped Ceiling Mount ( Up to 23 degrees) PAGE: 3 / 8 230913...

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS IMPORTANT: BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION ON THE SEPARATE SHEET "SAFETY INSTRUCTIONS" AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN. THIS FAN MUST BE INSTALLED WITH A WALL CONTROL/SWITCH. SAVE ALL INSTRUCTIONS.
  • Page 5 Make wires connection: Green ( Ground ) 1). The motor white wire to the white wire from the outlet box with a wire connector. 2). The motor black wire and blue wire to the black wire from the outlet box with •...

  • Page 6: Troubleshooting Guide

    Troubleshooting Guide If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Troubleshooting Guide. If a problem cannot be remedied or you are experiencing difficulty in installation, please call our Customer Service Department (1-800-482-9235).
  • Page 7 DYNAMIC BLADE BALANCING KIT YARDSTICK BALANCING WEIGHT CENTERLINE MEASURING POINT COUNTER- CLOCKWISE PLASTIC CLIP PREFACE Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the blades or the blade brackets. Improper assembly in the mounting system may cause some additional problems.
  • Page 8 Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation or replacement costs.
