CORNING SRP-003-887 Installing

Installing 12- and 24-fiber Riser Cable
Assemblies Using MDU Leader Assemblies
P/N 004-140
Issue 1
related literature | Search www.corning.com/opcomm.
SRP-003-887
SRP-003-894
SRP-004-170

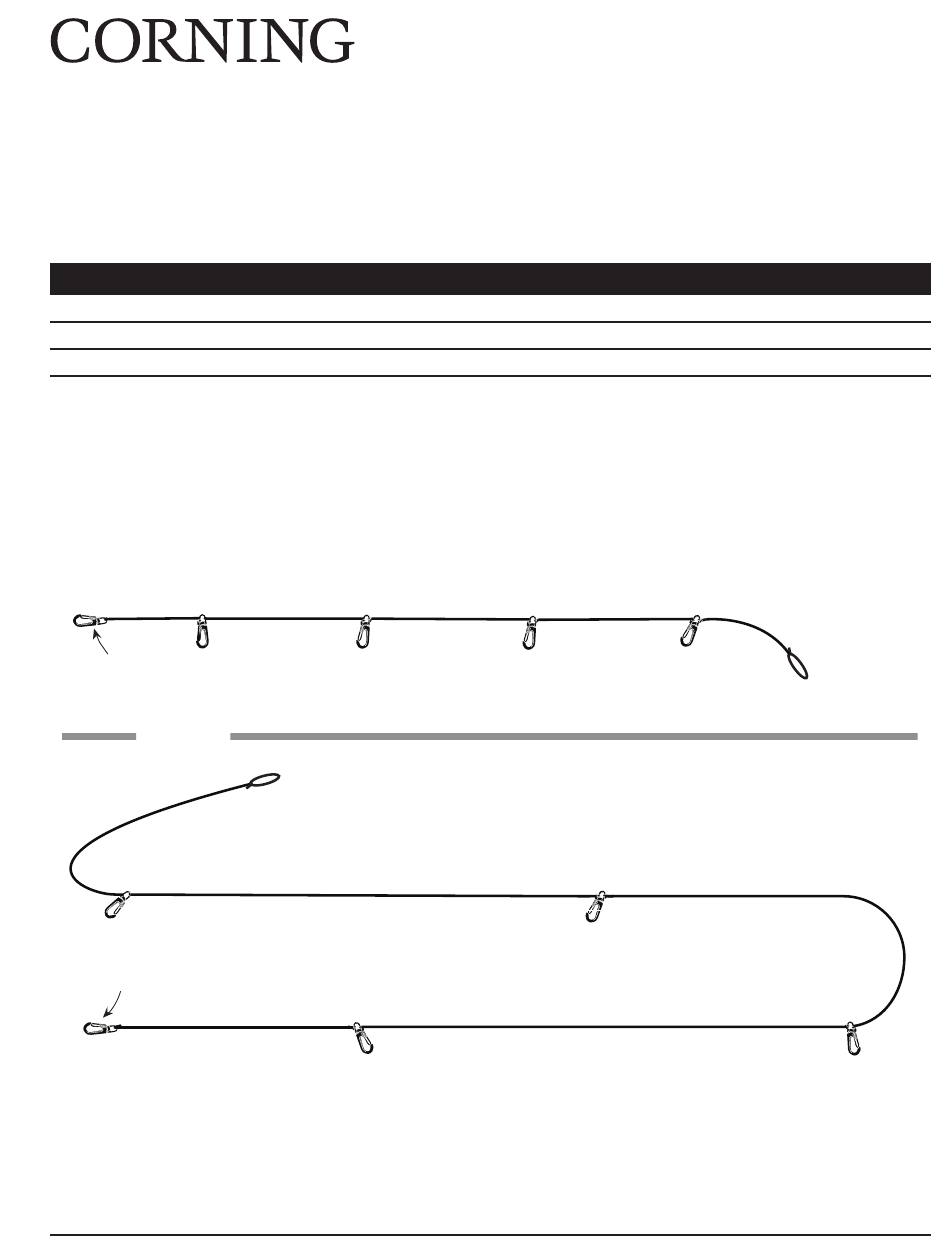

1. General
This procedure describes how to install 12- and 24-fiber Riser cable assemblies using MDU (multi-dwelling unit)
Pulling Leads. The leads are available in configurations suitable for pulling 4, 5, or 6 cable assemblies either up or
down a vertical building conduit (Figure 1).
1.5 ft (46 cm) between
the next-to-last and
last snap hooks
End hook for attaching
an additional leader
not to scale
6.5 ft (198 cm)
between end loop and
first snap hook
13 ft (396 cm) between the first through the next-to-last snap hooks
End hook for attaching
an additional leader
6.5 ft (198 cm)
HPA-0520
Instruction, OptiSheath® Wall-mountable Riser Terminal
Instruction, Transformable Cable Reel
Instruction, MDU Riser End Grip Removal
"Lead" end loop for pull line
Click on "Resources/Standard Recommended Procedures."
MDU "DOWN" Pulling Lead
(p/n MDULEAD-04D shown)
3 ft (91c m) between the
first through the next-to-last
snap hooks
MDU "UP" Pulling Lead
(p/n MDULEAD-04U shown)
13 ft (396 cm)
Standard Recommended Procedure 004-140 | Issue 1 | May 2012 | Page 1 of 9
1.5 ft (46 cm) between
the Lead end loop and
first snap hook
"Lead" end loop
for pull line
13 ft (396 cm)
Figure 1
